Ambient Light
Avoid or minimize light sources directed at the screen to preserve the quality of the projected
image.

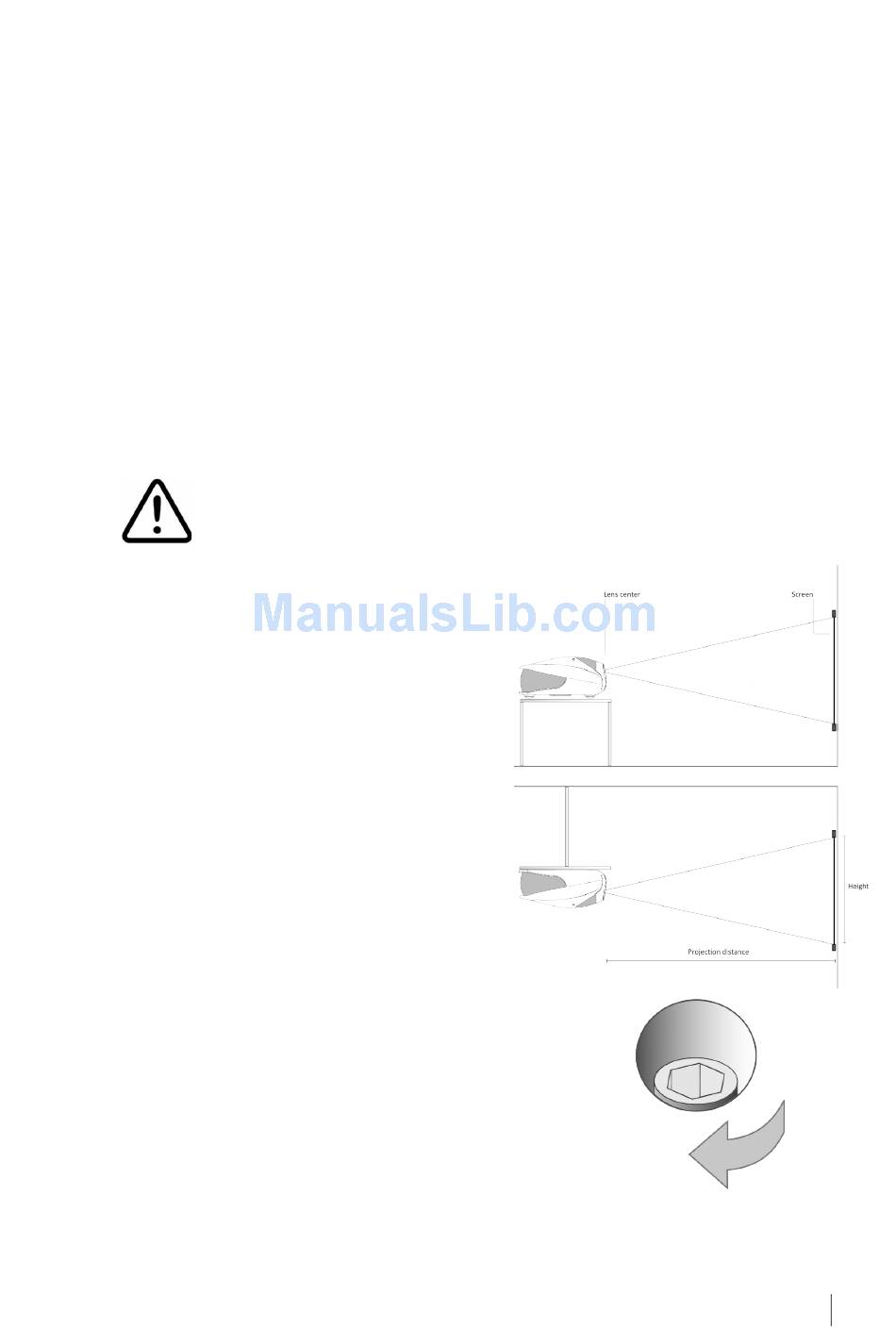

Mounting

The projector can be Floor mounted (upright) or Ceiling mounted (inverted). Choose the method
that
Important:
mm or 2.95 in., see "Dimensions" on page
centered horizontally to the center of the screen.
Floor Mounting
Position the projector on a secure and flat surface (such as a table or a shelf). Adjust the three
feet at the bottom of the projector until the projector is level on all sides.
Ceiling Mounting
Invert the projector and suspend it from the ceiling using a specific bracket.
To fit the bracket unscrew and remove the 3 rubber feet Do not use the rubber feet to
•
fix the bracket to the projector)
Attach bracket by using 3 x M6 screws not exceeding 15 mm in length
•
Orientation
By default, the AR is configured for a Front in-
stallation (projector installed upright and in
front of the screen). If the projector is installed
behind the screen or inverted, you can use the
image orientation function of the projector (see
"Orientation" on page 25)
Vertical Lens Shift
Ideally, the projector should be positioned at a
right angle to the screen and in such a way
that:
the lens center and screen center are
•
aligned with each other
the projected image fills the screen
•
perfectly
If it is not possible to position the projector perpendicularly
to the projection screen (so that the lens center and screen
center are aligned) you can use the mechanical lens control at
the top of the projector to shift the projected image vertical-
ly:
insert the provided hex wrench into the vertical lens
•
shift adjuster
turn the wrench to shift the lens in the desired direc-
•
tion
SIM2 BV International s.r.l
best
The projection lens is not centered to the chassis (it is off-center horizontally by 75
For ceiling mounting use only SIM2-approved ceiling brackets and adhere
to the installation instructions and safety guidelines provided with the
bracket. Do not over-tighten the screws.
suits your
35 for details). Make sure the centerline of the lens is
installation.
AR User Guide 13
