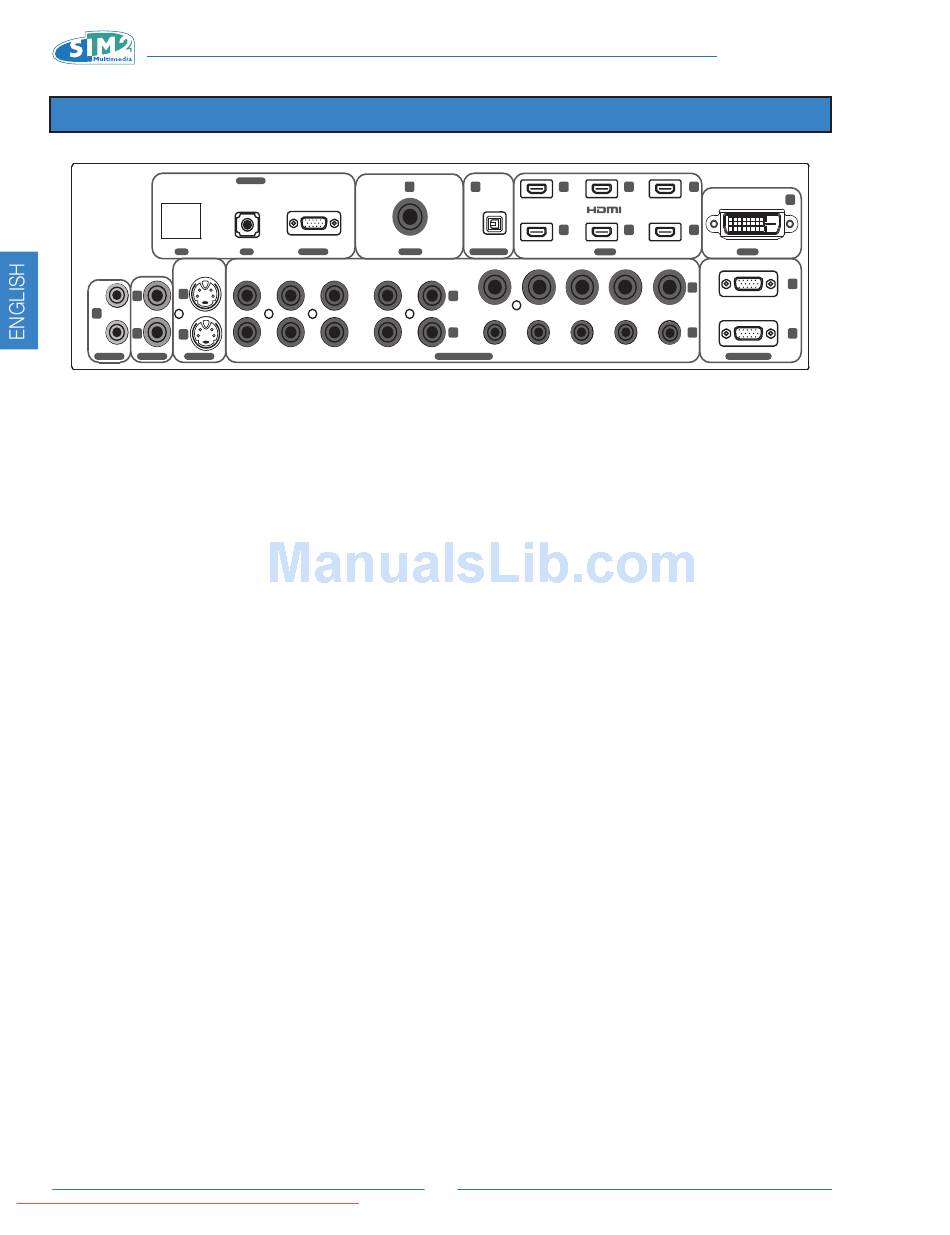

5 CONNECTION PANEL

LAN
4
2
1
3
5
12V OUT VIDEO S-VIDEO
INPUT USAGE SUGGESTIONS
(2,3) VIDEO
Television receiver, DVD player, VCR, Camcorder, video
game console
(4,5) S-VIDEO
Television receiver, DVD player, VCR, Camcorder, video
game console
(6,7,8,9) COMPONENT / RGBS
Television receiver, HDTV receiver, DVD player, VCR, cam-
corder, video game console, Blu-ray player, HD-DVD play-
er
(10,11) GRAPHICS RGB
Computer
(12) DVI-D
HDTV receiver, DVD player, Computer
DVI-D (Non -HDCP) - The DVD-D input is not equipped with
HDCP (High-bandwidth Digital Copy Protection). This input
will not display images encrypted with HDCP. Some of the
latest graphic cards now support HDCP. Please contact the
card manufacture for more information.
(13,14,15,16,17,18) HDMI
HDTV receiver, DVD player, video game console, Blu-ray
player, HDTV player
(20) HD-SDI
Professional and broadcasting equipement
Downloaded From projector-manual.com Sim2 Manuals
CONTROL
20
USB RS-232 HD-SDI
R/Pb G/Y B/Pb H/HV
R/Pr G/Y B/Pb H/HV
19 15
18
AUDIO-OUT HDMI
R/Pb G/Y B/Pb
V
6
7
R/Pb G/Y B/Pb
V
COMPONENT / RGBS
USB - RS232 INTERFACES
Projector functions can be controlled remotely from a PC or
other dedicated devices connected to the RS232 or USB
connectors on the connector panel.
We recommend using high quality serial or USB cables to
ensure that the electrical control signals do not deteriorate
and are therefore read correctly. A specific SIM2 driver must
be installed on the control PC, supplied by your dealer/dis-
tributor to use the USB port.
Upon request, SIM2 will also supply further instructions on
the protocol used for programming remote control sys-
tems.
MOTORISED SCREEN OUTPUTS
The projector is equipped with two outputs (Voltage: 12
Vdc) for motorised projection screen and screen masking
systems, used for masking off the projection area to match
the projected image aspect ratio.
The TRIG1 output is activated when the projector is switched
on (blue LED on) and is de-activated when the projector is
in standby mode (red LED on). The TRIG2 output can be
set with the Screen control adjustment in the Aspect menu.
This output is ideally suited for multiple aspect ratio screens
with motorized masking systems.
6
HT3000 HOST
14 13
12
17 16
DVI-D
H/HV V
10
8
9
11
H/HV V
GRAPHICS RGB
(CONTROL FIELD)
(1)
