4. Wire the AC power transformer to the panel as shown
in Figure 20.
TO 110 VAC 60 HZ
CIRCUIT
SPLICE
LINE
CLASS 1
24 VAC 100 VA
60-830
LOAD
24
24
VAC VAC
1 2
PANEL TERMINALS

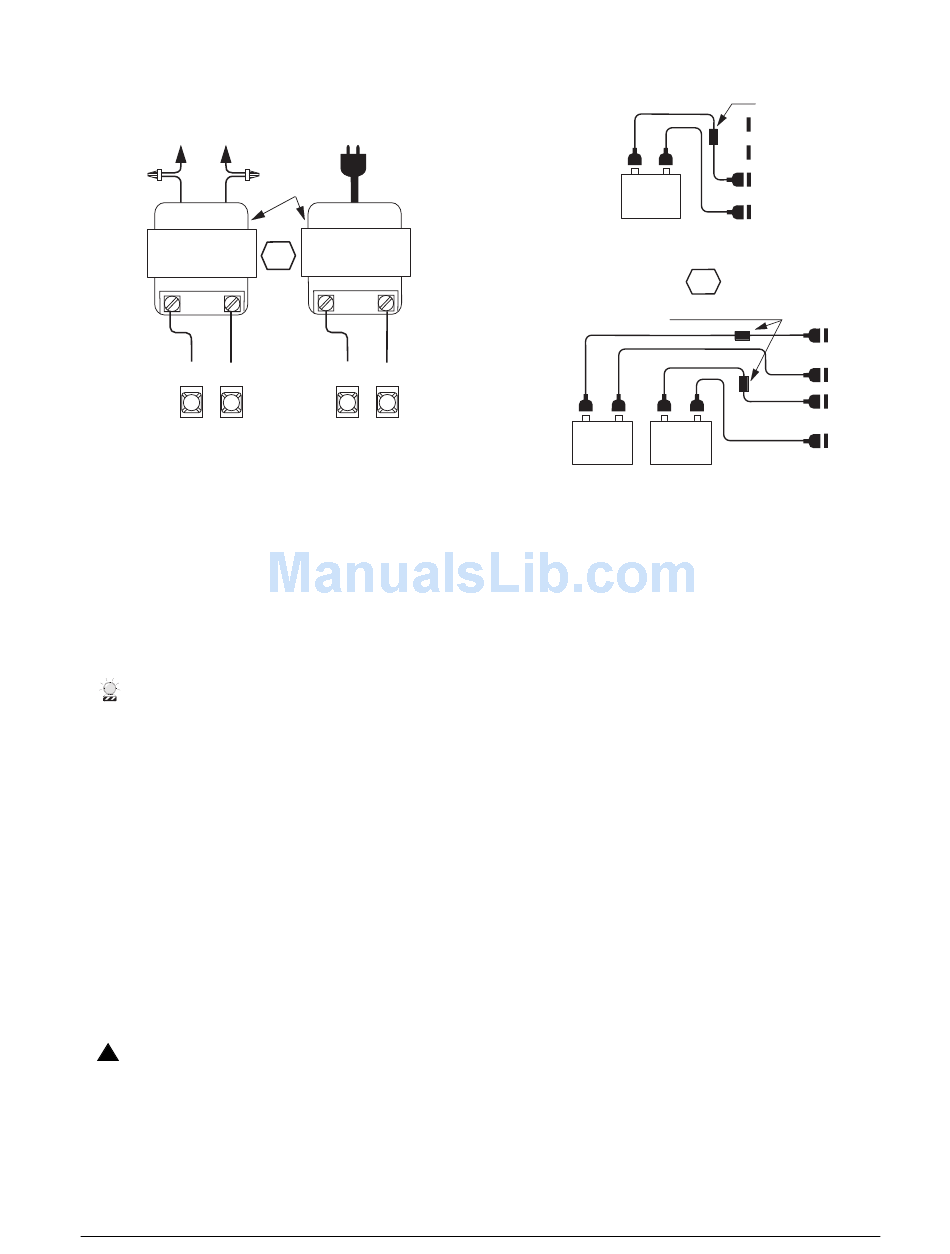

Figure 20.Wiring an AC Power Transformer to the
Panel

Installing Panel Backup Battery(s)

The panel uses from one to three rechargeable, sealed 12V
lead-acid backup batteries (60-781).
Note
When replacing batteries, always replace with the same
battery type and size.
To install (or replace) backup battery(s):
1. Make sure the panel AC power is off or disconnected.
$87,21
While AC power is applied to the panel, the charging
voltage is present at the battery leads.
2. Verify all wiring at the panel and devices for correct
terminations.
3. Place the battery in the lower left or right portion of the
panel enclosure, with the terminals facing up.
4. Connect the black battery wire(s) from the panel circuit
board negative (-) battery spade lug(s) (located on the
left side of the board) to the negative (-) battery termi-
nal (Figure 21).
5. Connect the red battery wire(s) from the panel circuit
board positive (+) battery spade lug(s) to the positive
(+) battery terminal.
6. On three battery installations, wire the third battery in
parallel (positive to positive and negative to negative)
with either of the two sets of battery spade lugs on the
panel.
:$51,1*
!
Never short-circuit or reverse the battery wires. Pos-
sible injury to you and/or permanent damage to the
panel and battery could result.
Advent Commercial Fire System
TO 110 VAC 60 HZ
OUTLET
BUILT-IN
CIRCUIT
BREAKERS
LINE
CLASS 2
24 VAC 100 VA
OR
60-823
LOAD
24
24
VAC
VAC
1 2
8543269A.DSF
4 9 - 4 7 5
4 9 - 4 7 6
R E D B L K
+ –
1 2 V
B A C K U P
B A T T E R Y
B L A C K
6 0 - 7 8 1
S I N G L E B A T T E R Y C O N N E C T I O N S ( S T A N D A R D )
1 0 A M P , 3 2 V , 1 / 4 " X 1 " ,
F A S T A C T I N G F U S E 3 3 - 0 5 3
4 9 - 4 7 5
4 9 - 4 7 6
R E D
B L A C K R E D
+ – +
1 2 V 1 2 V
B A C K U P B A C K U P
B A T T E R Y B A T T E R Y
6 0 - 7 8 1 6 0 - 7 8 1
D U A L B A T T E R Y C O N N E C T I O N S ( O P T I O N A L )
T R I P L E B A T T E R Y C O N N E C T I O N S ( O P T I O N A L , N O T S H O W N )
W I R E T H I R D B A T T E R Y I N P A R A L L E L W I T H A N Y O T H E R
B A T T E R Y U S I N G A D D I T I O N A L 4 9 - 4 7 5 A N D 4 9 - 4 7 6
B A T T E R Y C A B L E S .
Figure 21.Connecting Backup Battery(s)

Powering Up the Panel

After connecting and wiring all devices to the panel, you are
ready to power up the panel.
To power up the panel:
1. If you have not already done so, connect the backup
battery(s).
2. Depending on your transformer,
‰ Plug the transformer into an outlet not controlled by a
switch,
‰ or apply power to the circuit which the transformer is
connected to.
3. Wait about 30 seconds and note the following:
‰ The green power LED (located on the circuit board)
turns and stays on.
‰ Alphanumeric touchpads should display "Partition 1
Security is Off."
Note
If the power LED is off or flashing, or if touchpads don't
display anything, remove panel power, disconnect the
backup battery(s) and see "Troubleshooting" on page 55.

Programming the Panel

The panel can be programmed using downloader software
(on site only) or an alphanumeric touchpad connected to the
panel. The system interface is menu-driven and self-
prompting. It will automatically request access codes and
data if required.
1 0 A M P , 3 2 V , 1 / 4 " X 1 " ,
F A S T A C T I N G F U S E 3 3 - 0 5 3
+
P A N E L
–
B A C K U P
B A T T E R Y
+
L U G S
R E D
–
O R
+
R E D
4 9 - 4 7 5
P A N E L
–
4 9 - 4 7 6
B L A C K B A C K U P
B L K
B A T T E R Y
+
L U G S
R E D
–
–
B L A C K
8 5 4 3 2 7 9 A . D S F
15
