Table 11. Wire Recommendations (Continued)
Device
SuperBus 2000 22 ga.—1250 ft.
Commercial RF 18 ga.—3000 ft.
Transceiver
SuperBus 2000 8Z Input 22 ga.—1750 ft.
Module 18 ga.—4000 ft.
SuperBus 2000 4-Relay 22 ga.—200 ft.
Output Module 18 ga.—500 ft.
SuperBus 2000 Dual 22 ga.—350 ft.
Phone Line Module 18 ga.—900 ft.
SuperBus 2000 Printer 22 ga.—1500 ft.
Module 18 ga.—4000 ft.
SuperBus 2000 RS 232 22 ga.—1500 ft.
*
Automation Module 18 ga.—4000 ft.
SuperBus 2000 LED 22 ga.—75 ft.
*
Driver Board 18 ga.—200 ft.
4 Input/2 Output N/A
SnapCard
8Z Hardwire Zone N/A
Expander SnapCard
4 Output SnapCard N/A
*) Not investigated by UL.

Mounting the Panel

Use the following procedure to mount the panel to the wall
or wall studs using the supplied mounting hardware and the
panel mounting holes shown in Figure 3.
$87,21
Make sure you are free of static electricity whenever you
work on the panel with the cover open. To discharge any
static, first touch the metal panel chassis, then stay in
contact with the chassis when touching the circuit board.
Using an approved grounding strap is recommended.
1. Open the panel door and remove the panel circuit
board, accessory kit, and packing material.
2. Carefully remove the circuit board from the packing
and put it in a safe static free location.
3. Remove the desired panel wiring knockouts.
4. Mount the optional key lock (if used) into the panel
door.
5. Place the enclosure in position against the wall. Make
sure enclosure is level and mark the locations of the
two mounting holes and two keyhole mounting holes.
Remember to leave room near the enclosure for any
optional modules.
6. Use the appropriate mounting anchors and screws for
your application. Partially insert screws into the two
anchors at the two top keyhole locations, and then hang
the panel chassis on the two screws.
7. Recheck level, insert the two lower screws, and then
tighten all four mounting screws.
8. Route all wires to the panel.
9. Install the panel circuit board, using the five supplied
board mounting screws.
8
Max. Wire Length to Wire
Panel Type
Solid or
Stranded
Solid or
Stranded
Solid or
Stranded
Solid or
Stranded
Solid or
Stranded
Solid or
Stranded
Solid or
Stranded
N/A
N/A
N/A
S T U D S 1 6 " O N C E N T E R
K E Y H O L E
M O U N T I N G
H O L E S
C O N T R O L P A N E L
C I R C U I T B O A R D
+
-
+
-
B A C K U P
B A T T E R Y ( s )

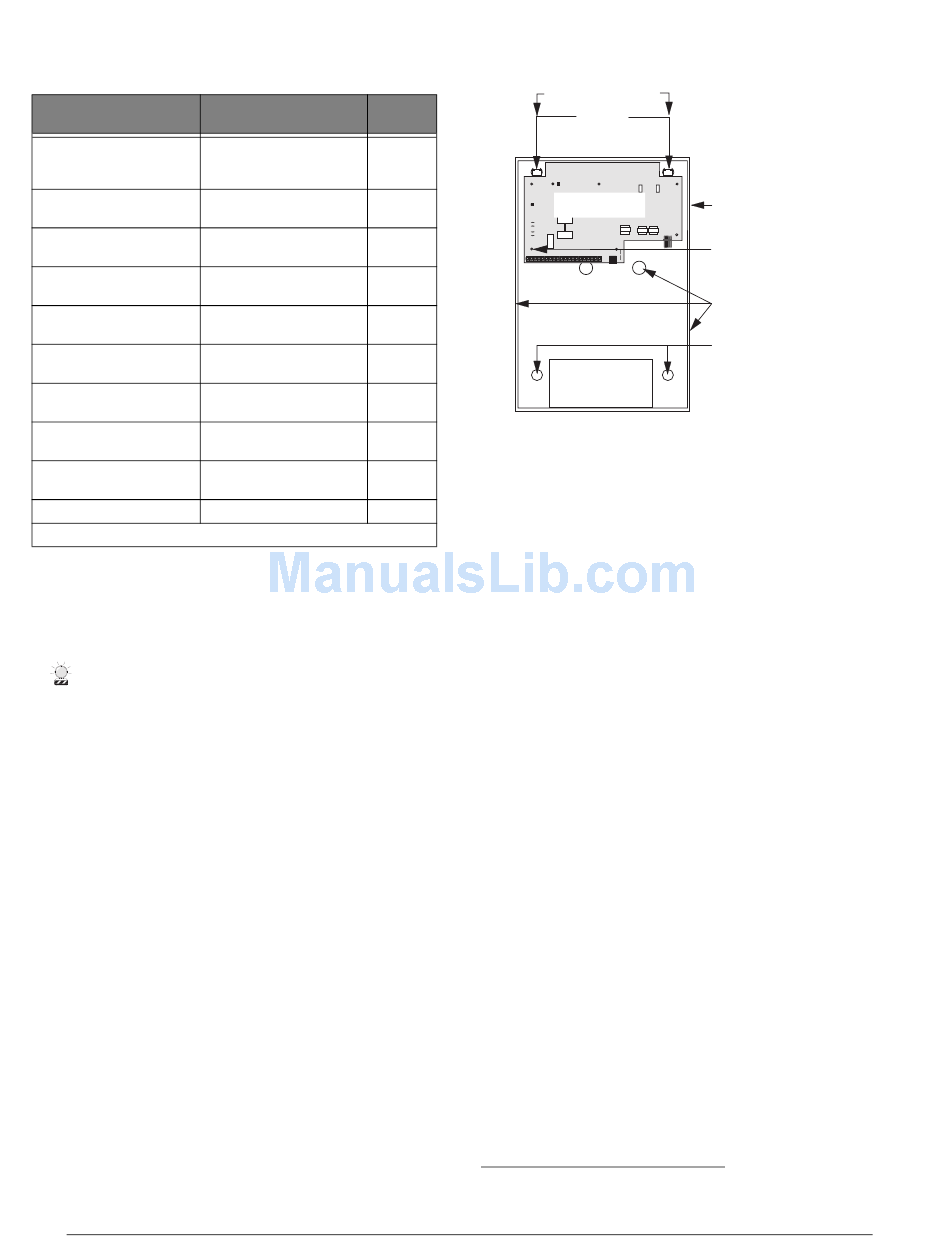

Figure 3. Mounting the Panel and Circuit Board

Installing Optional Panel Snapcards

‰ 8Z Input SnapCard (60-757)
‰ 4 Output SnapCard (60-758)
‰ 4Z Input/2 Output Combo SnapCard (60-756)
‰ 24V Smoke Loop SnapCard (60-767)
The SnapCard Connectors shown in Figure 4 allow for the
installation of two expansion SnapCards.
Carefully install a SnapCard onto the desired SnapCard
Connector and secure it in place with the two screws
included with the card.
Note
If installing 24V Smoke Loop SnapCard in the primary
expansion card connector slot, you will not be able to use
the panel cabinet knockouts behind and to the right of the
card. Whenever possible install this card into the second-
ary expansion card connector slot.
*) For Residential Use Only.
M O U N T T O S T U D S O R
I N S T A L L 3 / 4 " P L Y W O O D
M O U N T E D T O S T U D S ,
T H E N H A N G P A N E L O N
P L Y W O O D
C O N T R O L
P A N E L
E N C L O S U R E
( D O O R O P E N )
E A R T H G R O U N D
C H A S S I S S C R E W
( G R E E N )
W I R I N G
K N O C K O U T S
M O U N T I N G
H O L E S
8 5 4 3 G 0 7 B . D S F
*
+
Advent Commercial Fire System
