PANEL SUPERBUS
WIRING
HARNESS 49-462
SPLICE
WIRES FOR HARDWIRE
INPUT OR KEYSWITCH
(SEE SPECIFIC TOUCHPAD
INSTALL INSTRUCTIONS
FOR INFORMATION AND
RESTRICTIONS)
YELLOW

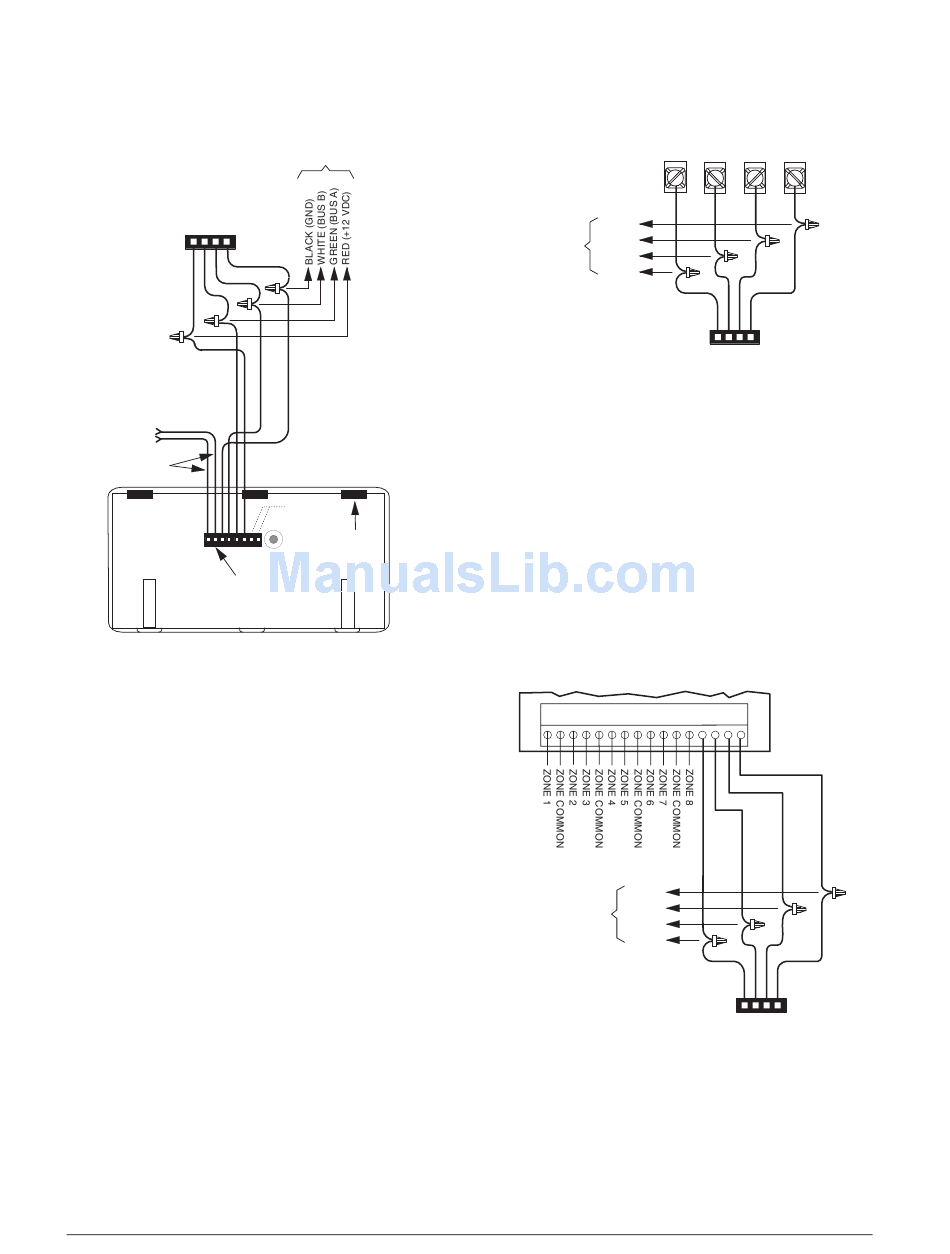

Figure 6. Connecting SuperBus 2000 Alphanumeric
touchpads

SuperBus 2000 Modules

Commercial RF Transceiver Module
‰ Commercial RF Transceiver Module in Plastic Case
(60-821-95)
‰ Commercial RF Transceiver Module in Metal Case
(60-856-95)
Note
For Commercial Fire installations the Commercial Trans-
ceiver Module in the Metal Case (60-856-95) must be
used.
Connect the transceiver to the panel as shown in Figure 7.
10
TO ADDITIONAL
SUPERBUS
TOUCHPADS
AND/OR
MODULES
NOT
USED
TAB
SLOT (3)
TOUCHPAD
WIRING HARNESS
49-430
8543265A.DSF
BLACK
TO OTHER
WHITE
SUPERBUS
GREEN
DEVICES
RED
PANEL SUPERBUS
WIRING
HARNESS 49-462
Figure 7. Connecting SuperBus 2000 Commercial RF
Transceiver module
8Z Input Module (60-774)
Connect the SuperBus 2000 8Z Input Module to the panel
as shown in Figure 8. Connect all necessary input wiring
using the Installation Instructions included with the mod-
ule.
Important !
For proper UL 864 compliance, all 8 inputs (terminals 1
through 12) shall be one of the following:
1. Security intrusion connections or,
2. fire device connections.
Combining security and fire connections on these termi-
nals is not approved for UL 864 by the manufacturer.
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
BLACK
TO OTHER
WHITE
SUPERBUS
GREEN
DEVICES
RED
PANEL SUPERBUS
HARNESS 49-462
Figure 8. Connecting a SuperBus 2000 8Z Input
Module
4-Relay Output Module (60-770)
Connect the SuperBus 2000 4-Relay Output Module to the
panel as shown in Figure 9. Connect all necessary output
SUPERBUS COMMERCIAL
RF TRANSCEIVER
MODULE
+12 BUS BUS
GND
VDC A B
SPLICE
8674G05A.DSF
SPLICE
WIRING
8543266A.DSF
Advent Commercial Fire System
