Panel Terminals; Panel Accessory Kit - GE Advent Installation Instructions Manual

POWER MEMORY
CLEAR
LED
BUTTON
+ –
TERMINAL STRIP
BACKUP
PHONE JACK
BATTERY
(DB-8 CORD)
LUGS

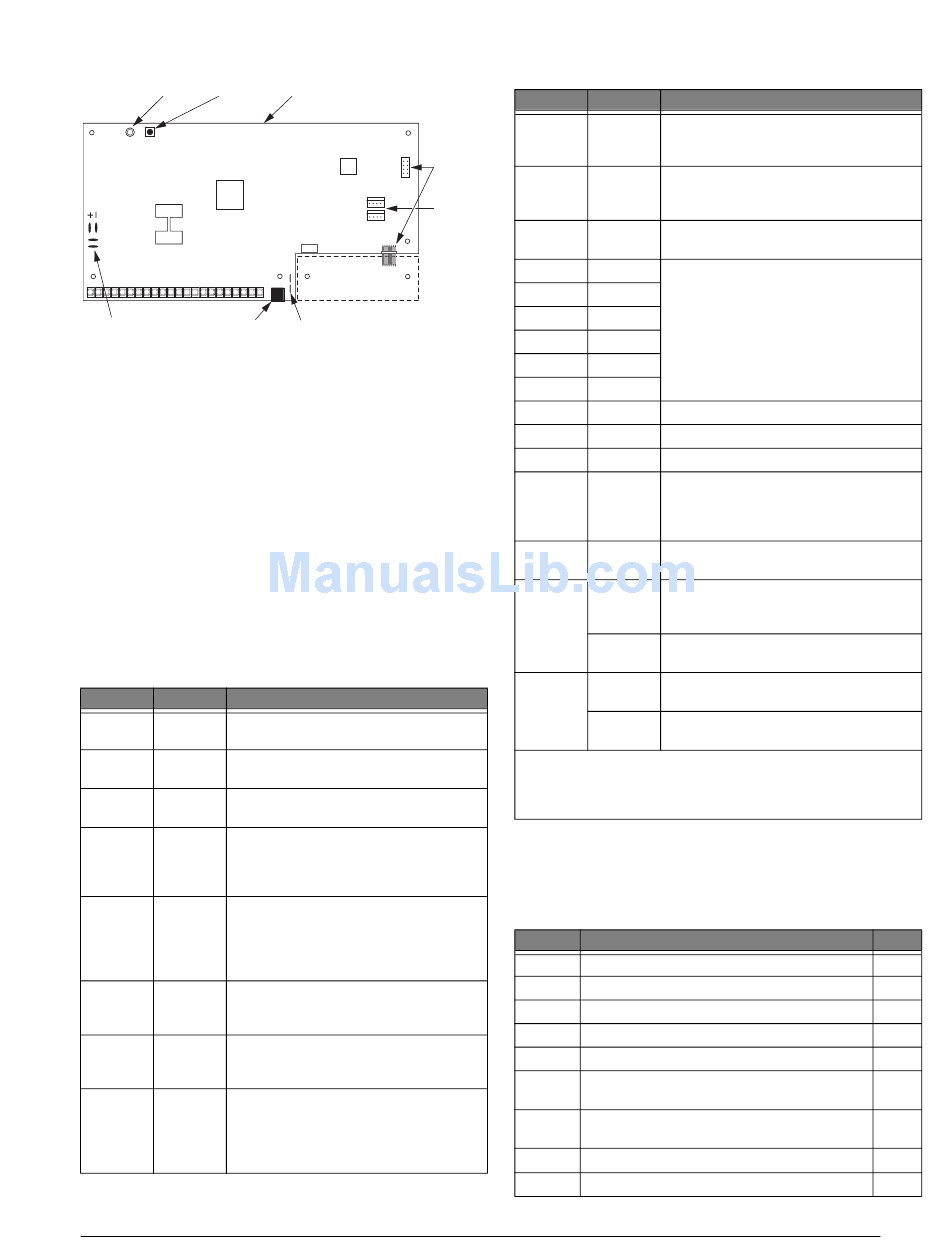

Figure 1. Circuit Board Main Components

Panel Terminals

Table 8 describes each of the control panel terminals. Typi-
cal system wiring diagrams are provided on the last page of
this manual.
Note
A) Class 2, Class 3, and power-limited fire alarm circuits
must be installed using FPL, FPLR, FPLP, or substitute
cable permitted by the National Electrical Code ANSI/
NFPA 70. Wire that extends beyond the cable jacket must
be separated from all other conductors by a minimum of
¼-inch or by a nonconductive barrier.
OR
(B) Class 2, Class 3, and power-limited fire alarm circuit
conductors must be installed as Class 1 or higher circuits.
Table 8. Panel Terminal Strip Connections
Terminal Name
1 24 VAC 24 VAC, 100 VA power transformer
connection.
2 24 VAC 24 VAC, 100 VA power transformer
connection.
3 GND Common ground connection for sirens,
general purpose outputs 1-6, etc.
4 +12 VDC Interior bell (+), and misc. DC power
supply, 12 VDC @ 5.0A maximum load
(includes Bus 1, Bus 2 headers, and
SnapCards) Current limited.
5 INT Negative (-) side of bell connection. 12
BELL VDC @ 150mA (sink) maximum.
Positive (+) side to +12 VDC terminal 4.
Connect multiple interior bells in parallel.
See Note 1
6 EXT Negative (-) external siren drive return
SIREN connection.
RTN
7 EXT Positive (+) external siren drive output
SIREN connection. 30 VDC @ 2.5A maximum
OUT load.
8 EXT Positive (+) external siren drive input
SIREN IN connection. 30 VDC @ 2.5A or 70 VAC
@ 500 mA maximum. Normally
connected to +12 VDC terminal 4 or
other siren voltage source.
Advent Commercial Fire System
CONTROL PANEL
CIRCUIT BOARD
OPTIONAL
EXPANSION
SNAPCARD
CONNECT-
ORS
SUPERBUS
CONNECT-
ORS (2)
OPTIONAL
EXPANSION SNAPCARD
INCOMING PHONE LINE TEST
LUGS (TIP/RING)
8543G05B.DSF
Used for
See Note 1
See Note 1
See Note 1
Table 8. Panel Terminal Strip Connections
Terminal Name
9 VOICE One side of voice siren (speaker)
SIREN connection. Other side to VOICE SIREN
terminal 10.
10 VOICE One side of voice siren (speaker)
SIREN connection. Other side to VOICE SIREN
terminal 9.
11 ZONE Common return connection for general
COM purpose inputs 1–7, sensors, etc.
12 GPI/O 1 General purpose hardwire input. GPI/Os
1–6 can be programmed for use as a
13 GPI/O 2
hardwire contact input (2.0K ohm EOL
resistor) or a control relay driver output
14 GPI/O 3
(200 mA sink at 12 VDC maximum).
15 GPI/O 4
16 GPI/O 5
17 GPI/O 6
18 INPUT 7 Hardwire input 7.
19 Unused
20 GND Common ground
21 +SMOKE Positive (+) side of 2-wire, 12 VDC
(+12V DC smoke loop. (Smoke and heat sensor DC
SW) power supply.) Switched 12 VDC @ 100
mA maximum (in alarm).
22 -SMOKE Negative (-) side of 2-wire, 12 VDC
smoke loop.
Backup +RED Positive (+) side of panel backup battery
Battery 1 one. 12V @ 1.6A source maximum.
Source current limited.
-BLACK Negative (-) side of panel backup battery
one.
Backup +RED Positive (+) side of panel backup battery
Battery 2 two. Source current limited.
-BLACK Negative (-) side of panel backup battery
two.
œÌiÊ£Ê
For supplementary use only.
œÌiÊÓ
Four to eight ohm maximum load between terminals 9 and 10.

Panel Accessory Kit

The components listed in Table 9 are included in the panel
accessory kit.
Table 9. Panel Accessory Kit
Part No. Description
01-022 2K-ohm, ¼-watt EOL Resistor
17-101 220 MF, 35 V Non-polarized Capacitor
31-347 Fast-On Connector for battery cables
40-415 Self-tapping screws for mounting modules
40-577 Lock and keys for panel cabinet
40-582 6-32 x ¼ green self-tapping screw for ground
connection on lower-left board
40-588 Protective adhesive pads for side-mounted
SnapCards
49-442 DB-8 phone cord
49-462 SuperBus header cable
Used for
See Note 2
See Note 2
Qty.
9
5
4
18
1
1
2
1
2
5
