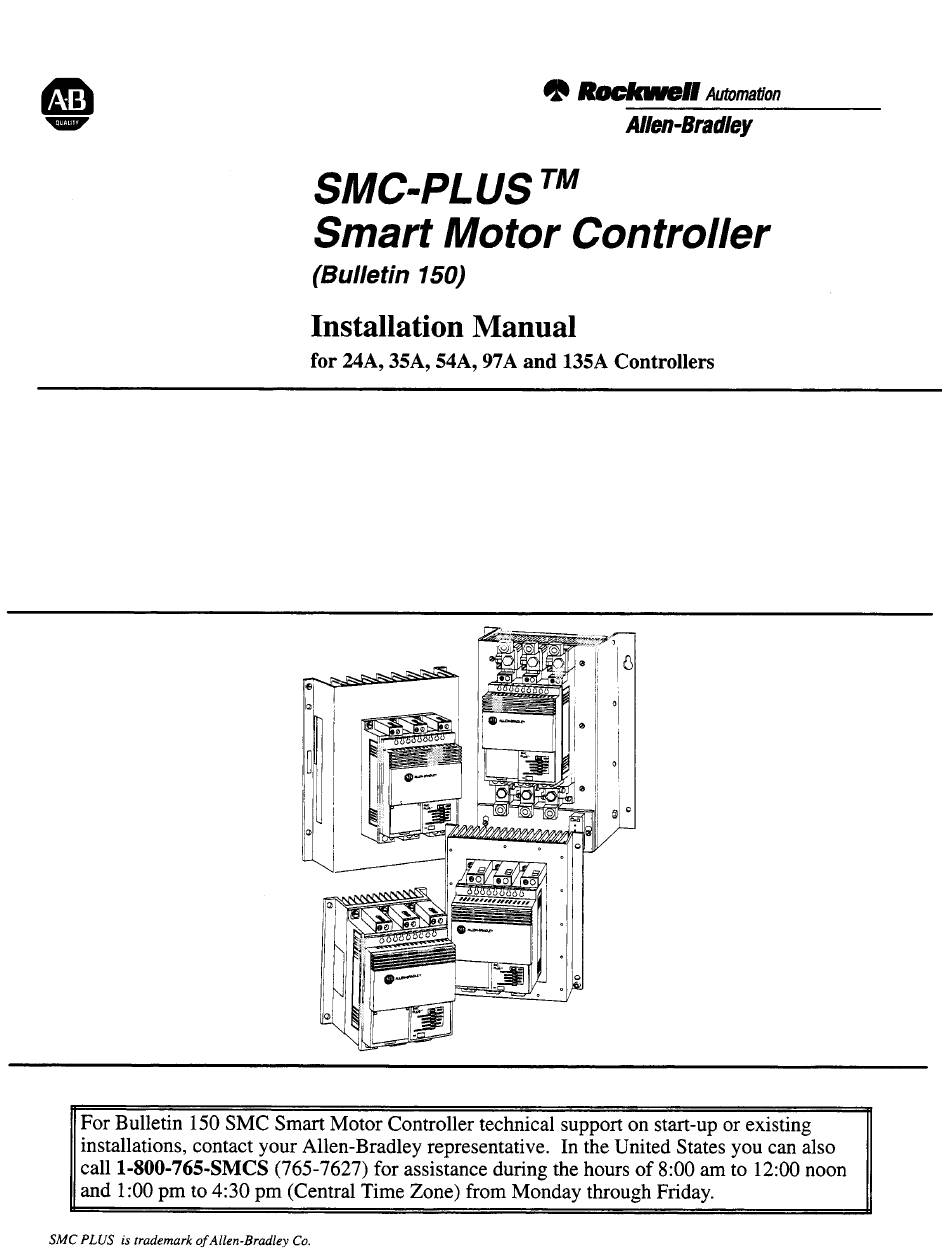

This manual describes the installation, setup,
operation and use of the SMC PLUS Controller. Basic
installation and troubleshooting instructions apply to
all of the SMC PLUS Controllers. The wiring and
set-up procedures are for the SMC PLUS Controllers
without options only. Wiring and set-up procedures fo
the SMC PLUS Controllers with options can be found
in the following publications:
150-805 Soft Stop Option
150-806 Pump Control Option
150-807 Preset Slow Speed
TM
150-808 SMB
Smart Motor Braking
150-809 Accu-Stop
150-810 Slow Speed with Braking
TM
Option

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Allen-Bradley SMC-PLUS Bulletin 150 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Rockwell Automation Allen-Bradley SMC-PLUS Bulletin 150

  • Page 1 This manual describes the installation, setup, • 150-805 Soft Stop Option operation and use of the SMC PLUS Controller. Basic • 150-806 Pump Control Option installation and troubleshooting instructions apply to • 150-807 Preset Slow Speed all of the SMC PLUS Controllers. The wiring and •...
  • Page 3 Chapter Catalog Number Identification Catalog Number The following is an explanation of the catalog numbering system for the Bulletin 150 SMC PLUS Smart Motor Controller. Identification Figure 1.1 – Open Type Controllers Figure 1.2 – Combination Controllers 150 – A24 N –...
  • Page 4: Specifications

    Chapter Catalog Number Identification Specifications Vibration: 2.5 G vibration for 60 minutes Input Voltage – Power Module: – 200 – 480 VAC, 3–phase, +10%, –15% Altitude: – 200 – 600 VAC, 3–phase, +10%, –15% 2000 meters without derating Control Voltage – Control Module: Noise and RF Immunity: 100 –...
  • Page 5: Installation And Wiring

    Chapter Installation and Wiring Inspection Before installing the controller, make a complete visual check of the controller for damage in shipment or handling. Claims for damaged or missing parts must be made to the carrier as soon as possible after receipt of shipment. Enclosures he open-style controller can be installed in an enclosure.
  • Page 6 Chapter Installation and Wiring Figure 2.2 - Dimension Drawings 24, 35, and 54 Amp Controller 97 and 135 Amp Controller .281 DIA. (04.14) 4 Mtg. Holes B F G .281 DIA. .219 DIA. (04.14) (05.56) 4 Mtg. Holes 4 Mtg. Holes Approx.
  • Page 7: Control Power

    Chapter Installation & Wiring Figure 2.4 - Power Wiring and Power Lug Connections Wire Size Controller Controller Metric 24 A-54 A 2.5 - 25 mm #14 – #4 97 A-135 A 16 - 120 mm 6 – 4/0 Tightening Torque 2.5-6 mm 10 mm 16-25 mm...
  • Page 8: Typical Connection

    Chapter Installation and Wiring Typical Connection Figure 2.7 shows a typical connection for standard control module. See page 3-2 for a description of the start sequence. Figure 2.7 - Typical Connection Diagram for Standard Unit SMC PLUS NOTE: For two wire control, remove stop/start Overload push buttons and connect two wire device Controller...
  • Page 9: Bypass Mode

    Chapter Installation & Wiring Typical Connection Figure 2.9 shows a typical connection diagram for use in a retrofit application. In for Retrofit this scheme, the controller provides control of the load when the electromechanical starter is energized. This method of controlling the load can be used in applications Application where the existing control scheme is to remain intact.
  • Page 10 Chapter Installation and Wiring Typical Connection Figure 2.11 shows a typical connection diagram for use with a shunt trip circuit with Shunt Trip breaker. In this scheme, the electromechanical contactor is eliminated. The shunt trip circuit breaker provides automatic isolation from the main power lines during Circuit Breaker abnormal conditions and can also be used to provide a manual isolation from the main power lines.
  • Page 11 Chapter Installation & Wiring Power Factor The controller can be installed on a system with power factor correction capacitors. Capacitors The capacitors must be located on the line side of the controller. This must be done to prevent damage to the SCRs in the SMC PLUS controller. When discharged, a capacitor has essentially zero impedance.
  • Page 12 Chapter Installation and Wiring Figure 2.14 - Typical Application with a Single Speed, Reversing Starter Reversing Motor Starter NOTE: Minimum transition time for reversing direction is 1/2 second. L1/1 T1/2 Power Input Customer Supplied L2/3 T2/4 3-Phase L3/5 T3/6 Branch SMC PLUS Protection Controller...
  • Page 13: Protective Features

    Chapter Set-up Procedures: SMP PLUS Controller without Options Protective Features During the “Starting” and “Running” modes, the controller’s microcomputer monitors the following conditions. If any of the conditions exist, the controller shuts down and lights the FAULT LED and the appropriate LED. The controller provides the following protection: Start Fault Temperature Fault...
  • Page 14: Line Fault

    Chapter Set-up Procedures: SMP PLUS Controller without Options Line Fault The line fault indicates an abnormal condition has been sensed in the line. Conditions which will cause line fault indications are phase loss, open motor lead and shorted SCR. If detected in either the “Starting” or “Running” modes, the controller trips and the FAULT and LINE LEDs light.
  • Page 15: Customer Settings

    Chapter Set-up Procedures: SMP PLUS Controller without Options Fault Trips During the “Starting” and “Running” modes, the controller’s microcomputer monitors the following conditions. If any of the conditions exist, the controller shuts down, changes state of the auxiliary contacts, and turns on the FAULT LED and the appropriate LED.
  • Page 16 Chapter Set-up Procedures: SMP PLUS Controller without Options Customer Settings (continued) Soft Start Selection Figure 3.4 - Soft Start with Kickstart without Options Kickstart (when selected) Percent Voltage Initial Torque Start Time (seconds) Starting Time – Set switches 7–9 according to the period desired. For example, if you want a ramp of 20 seconds, switch 7 would be ON and switches 8 and 9 would be OFF Kickstart Time –...
  • Page 17 Chapter Set-up Procedures: SMP PLUS Controller without Options Soft Start Selection This starting mode is used when it is necessary to limit the maximum starting without Options current. This can be adjusted for 50 to 500% of full load amperes as shown in Figure 3.6.
  • Page 18 Chapter Set-up Procedures: SMP PLUS Controller without Options Customer Settings (continued) Full Voltage This mode is used for applications requiring across the line starting. The ramp time Starting is set for less than 1/4 second as shown in Figure 3.8. Figure 3.8 - Full Voltage Percent Voltage...
  • Page 19: Troubleshooting

    Chapter Troubleshooting For Bulletin 150 SMC Smart Motor Controller technical support on start-up or existing installations, contact your Allen-Bradley representative. In the United States you can also call 1-800-765-SMCS (765-7627) for assistance during the hours of 8:00 am to 12:00 noon and 1:00 pm to 4:30 pm (Central Time Zone) from Monday through Friday.
  • Page 20 Chapter Troubleshooting Figure 4.1 - Motor will not start (no output voltage to motor) Symptom Possible Causes Remedy “CONTROL Pilot devices Check wiring VOLTAGE” LED On Control voltage Check control voltage Failed control module Replace control module “CONTROL Control voltage not present Check for correct control voltage VOLTAGE”...
  • Page 21 Chapter Troubleshooting Figure 4.3 - Motor Stops While Running Symptom Possible Causes Remedy “CONTROL Mechanical problems Check for binding or external loading and correct VOLTAGE” LED On Pilot devices Check for normal “stop” operation Failed control module Replace control module “CONTROL Control voltage not present Check for correct control voltage...
  • Page 22: Control Module

    Chapter Troubleshooting Figure 4.4 - Miscellaneous situations Symptom Possible Causes Remedy Motor current and Check motor Verify the application of standard squirrel cage induction motor voltage fluctuates Energy Saver Set Energy Saver Off (DIP switch #5 to Off) then restart If with steady load problem stops, replace control module;...
  • Page 23 Chapter Troubleshooting Control Module Remove all control wires. Removal Remove six screws as shown in Figure 4.5. Unplug control module from power modules by pulling forward. (continued) CAUTION: When removing control module make sure power module pins do not bend. Make sure pins are not bent prior to installing control module.
  • Page 24: Renewal Parts

    Chapter Troubleshooting Power Module Measure resistance between pins 2 and 3. Resistance should be less than 100 Resistance Check ohms. (continued) Measure resistance between pins 6 and 7. Resistance should be less than 100 ohms. Measure resistance between pins 4 and 5. Resistance should be less than 250 ohms.
