Operation with remote display and operating module FHX50

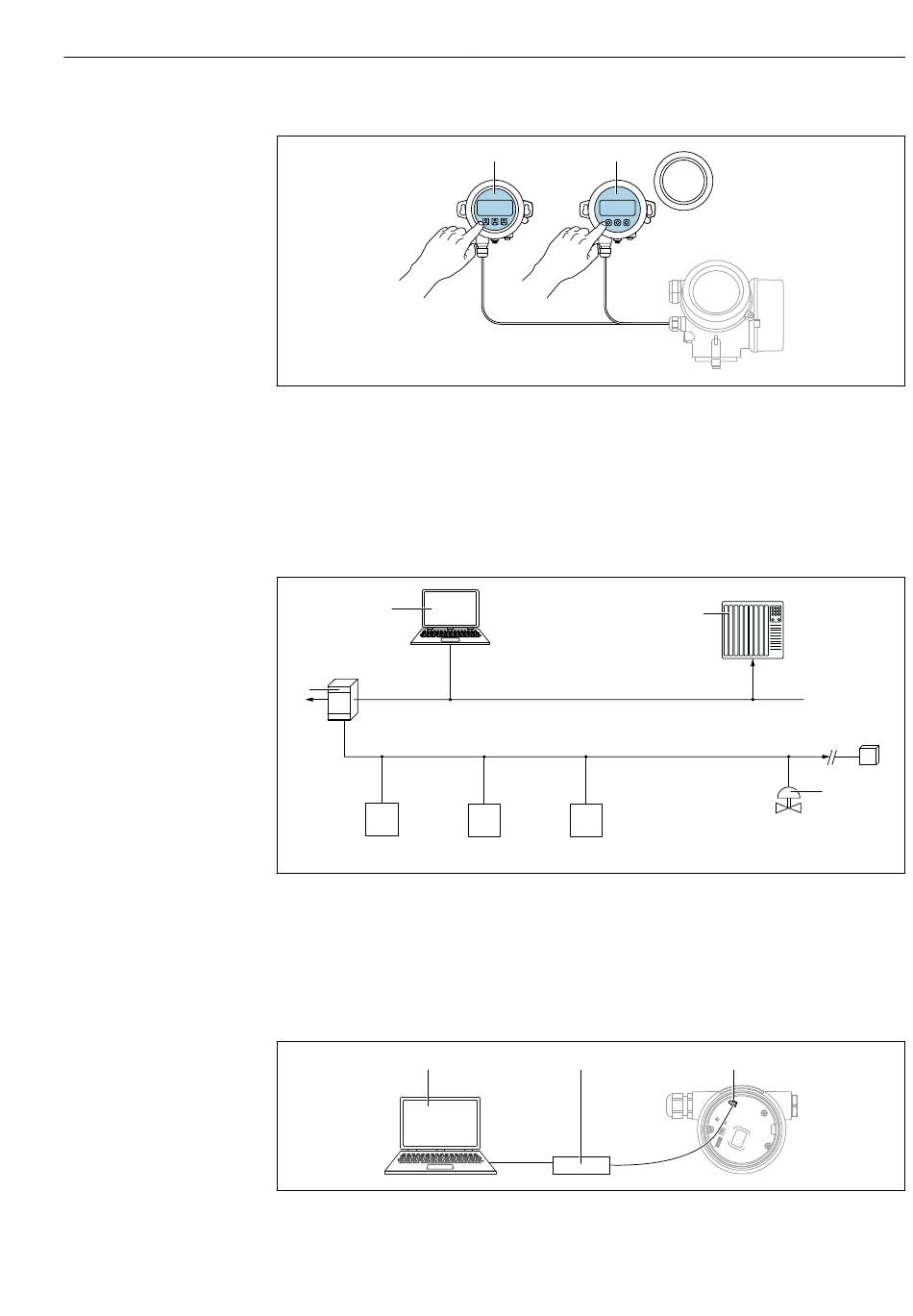

 16 FHX50 operating options
1 Display and operating module SD03, optical keys; can be operated through the glass of the cover
2 Display and operating module SD02, push buttons; cover must be removed
8.1.3

Remote operation

Via PROFIBUS PA protocol
2
1
PROFIBUS PA
4
1 Segment coupler
2 Computer with PROFIusb and operating tool (e.g. DeviceCare/FieldCare )
3 PLC (programmable logic controller)
4 Transmitter
5 Additional functions (valves etc.)
Via service interface (CDI)
1
1 Computer with FieldCare/DeviceCare operating tool
2 Commubox FXA291
3 Service interface (CDI) of the measuring device (= Endress+Hauser Common Data Interface)
1 2
PROFIBUS DP
4 4
2
