Mounting
6.4

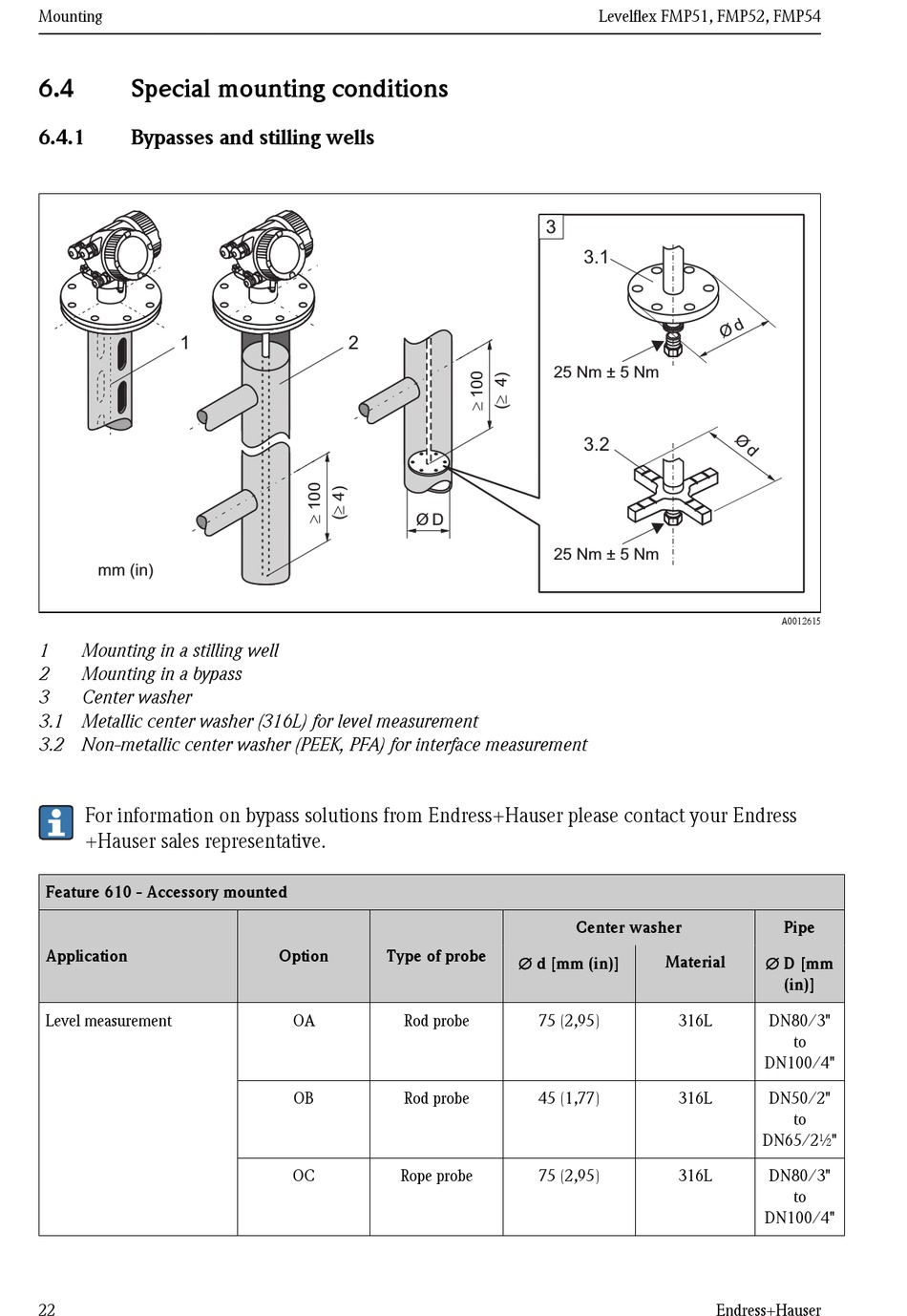

Special mounting conditions

6.4.1
Bypasses and stilling wells
1
mm (in)
1
Mounting in a stilling well
2
Mounting in a bypass
3
Center washer
3.1 Metallic center washer (316L) for level measurement
3.2 Non-metallic center washer (PEEK, PFA) for interface measurement
For information on bypass solutions from Endress+Hauser please contact your Endress
+Hauser sales representative.
Feature 610 - Accessory mounted
Application
Level measurement
22
2
Ø D
Option
Type of probe
OA
Rod probe
OB
Rod probe
OC
Rope probe
Levelflex FMP51, FMP52, FMP54
3
3.1
25 Nm ± 5 Nm
3.2
25 Nm ± 5 Nm
Center washer
Æ d [mm (in)]
Material
75 (2,95)
316L
45 (1,77)
316L
75 (2,95)
316L
A0012615
Pipe
Æ D [mm
(in)]
DN80/3"
to
DN100/4"
DN50/2"
to
DN65/2½"
DN80/3"
to
DN100/4"
Endress+Hauser
