10.2 Accessories (LT, G5 Heads)
Adjustable Mounting Bracket
Fixed Mounting Bracket
Sensing head mounting nut (XXXMIACMN)
Air Purge Jacket
Air Cooling System
(XXXMIACCJ1)
Right Angle Mirror
Protective Windows
Close Focus Lens
Adjustable Bracket
68
(XXXMIACAB)
(XXXMIACFB)
(XXXMIACAJ)
with 0.8 m (2.6 ft.) air hose (XXXMIACCJ) or with 2.8 m (9.2 ft.) air hose
(XXXMIACRAJ, XXXMIACRAJ1)
(XXXMI3ACCFL)
Sensing Head
Fixed Bracket

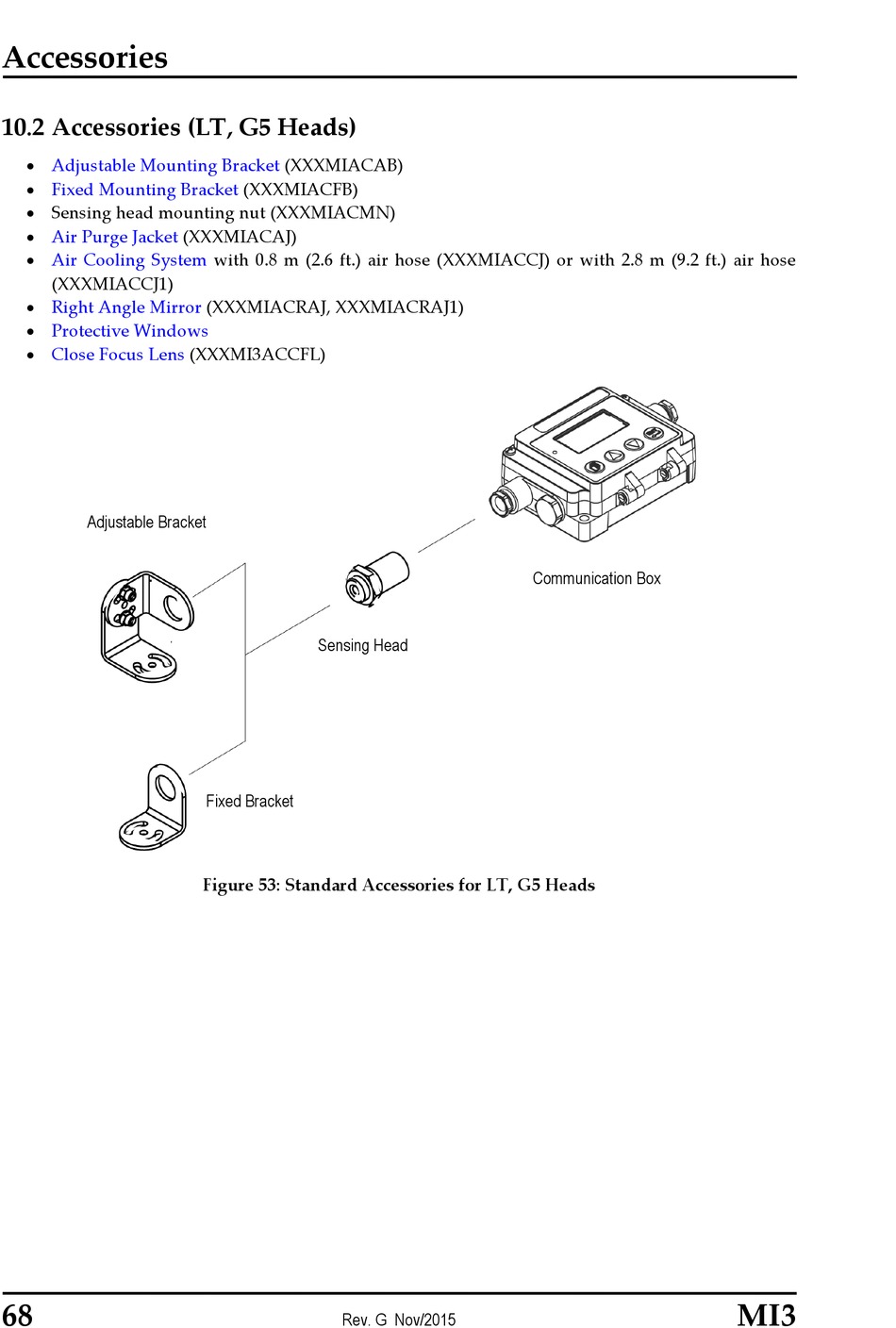

Figure 53: Standard Accessories for LT, G5 Heads
