Attach Slide-Rail Assemblies

Note -

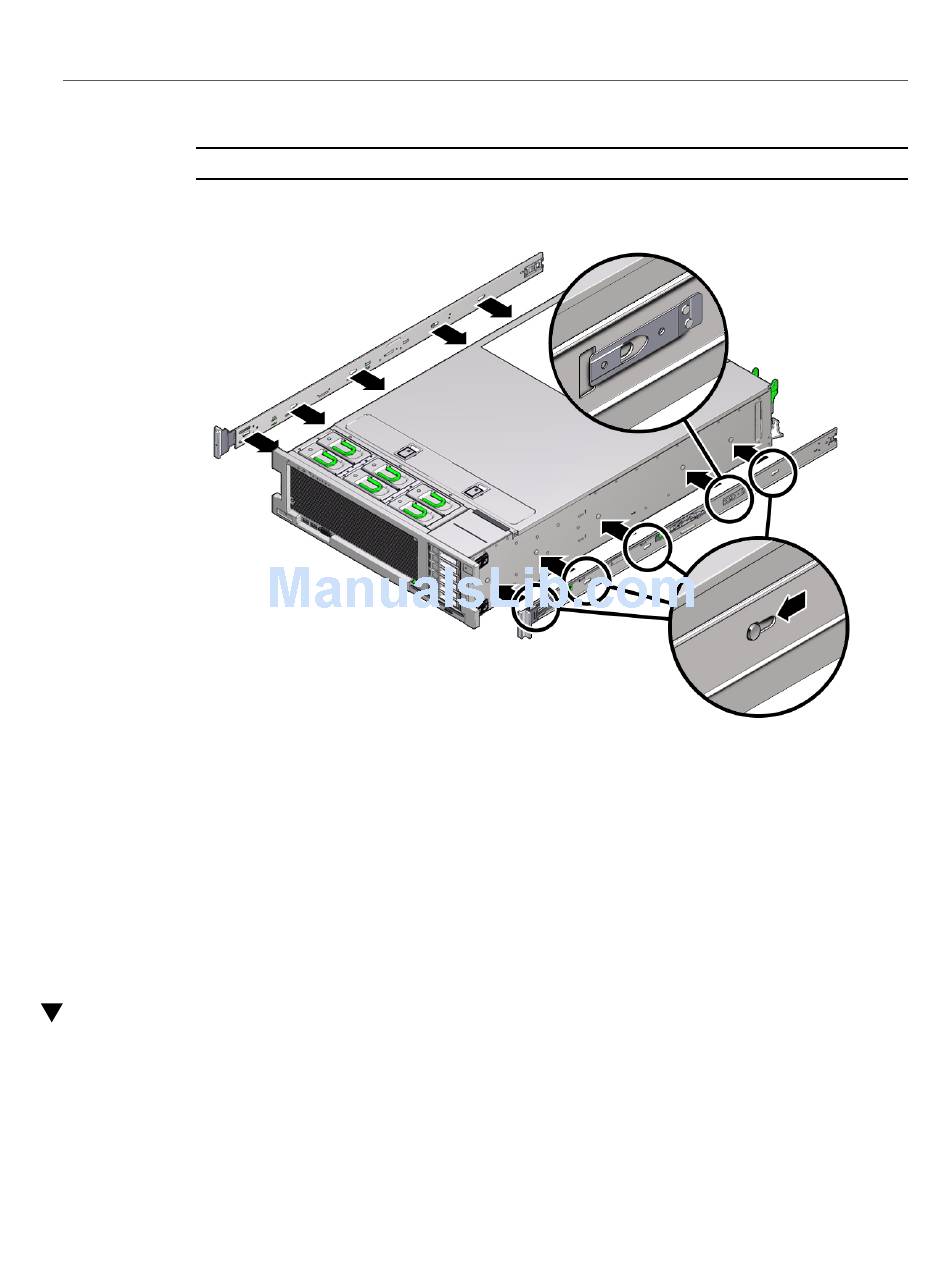

With the heads of the five chassis locating pins protruding though the five
2.
keyhole openings in the mounting bracket, pull the mounting bracket toward
the front of the chassis until the mounting bracket clip locks into place with an
audible click.
Verify that the rear locating pin has engaged the mounting bracket clip.
3.
4. Repeat Steps 1 through 3 to install the remaining mounting bracket on the other
side of the server.
Attach Slide-Rail Assemblies
Complete the following procedures to attach the slide-rail assemblies to the rack.
36 Sun Server X4-4 Installation Guide • October 2015
The mounting brackets are identical and can be installed on either side of the chassis.
