Oracle Sun Server X4-4 Installation Manual page 95

Configure RAID in Legacy BIOS Boot Mode
1. Power on or reset the server.
For example, to reset the server:
From the local server, press the Power button (approximately 1 second) on the front panel
■
of the server to power off the server, then press the Power button again to power on the
server.
From the Oracle ILOM web interface, select Host Management > Power Control, then
■
select Reset from the Select Action list box.
From the Oracle ILOM CLI, type:
■
The BIOS screen appears.
During the boot process, the BIOS initialization banner lists information about
2.
the discovered SAS adapters and devices that are attached to the discovered
HBAs in the system.
3.
Upon seeing the prompt Press Ctrl-C to start LSI Corp Configuration Utility...,
immediately press Ctrl+C to access the LSI Corp Config Utility.

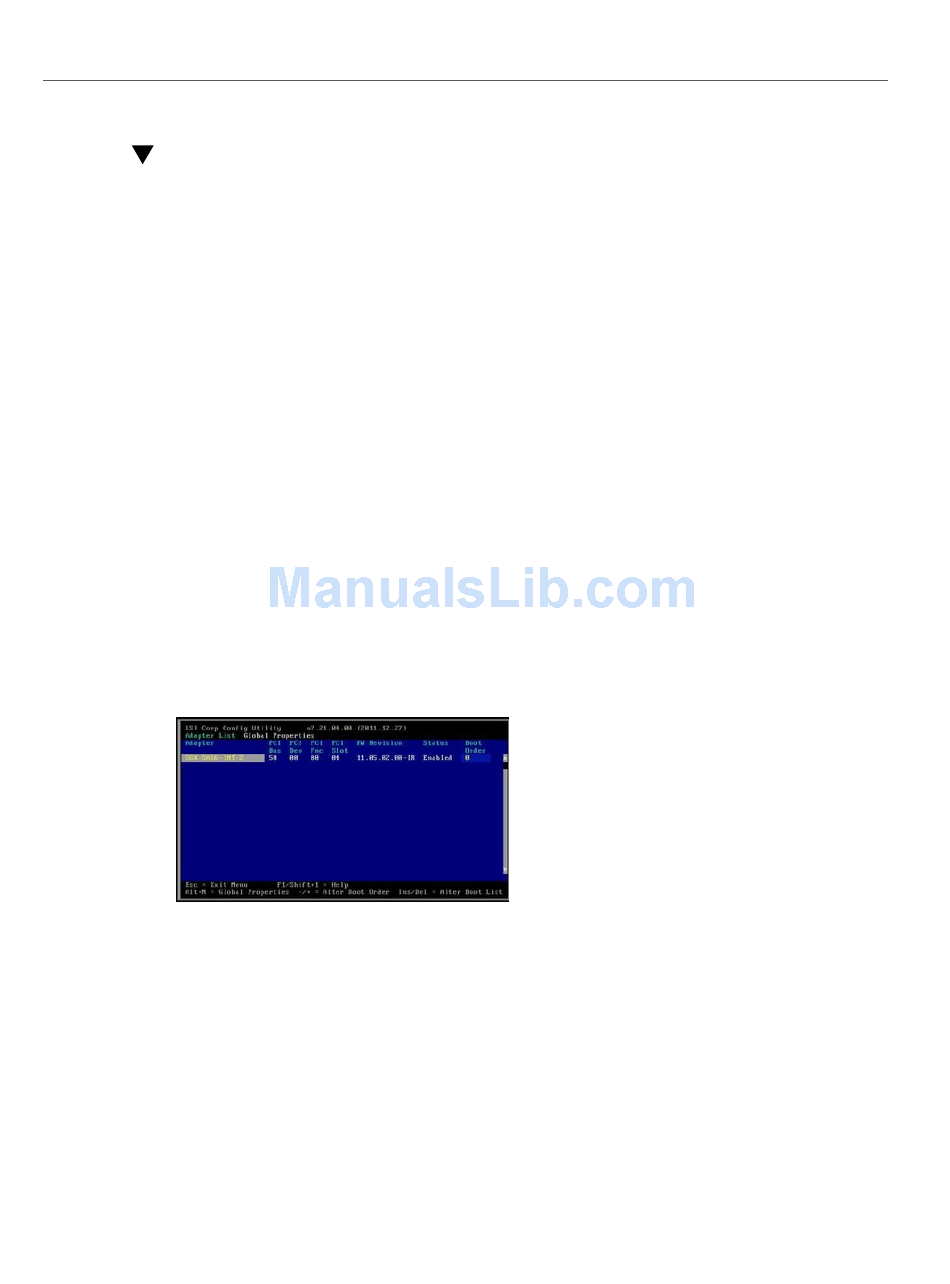

The LSI Corp Config Utility menu appears.
Use the LSI Corp Config Utility to configure RAID on the server.
4.
For instructions on how to use the BIOS configuration utilities to configure RAID in Legacy
BIOS Boot Mode, refer to instructions for creating a bootable drive on x86/64 systems in the
Sun Storage 6 Gb SAS PCIe HBA, Internal Installation Guide For HBA Models SGX-SAS6-
INT-Z and SG-SAS6-INT-Z at: http://docs.oracle.com/cd/E19337-01/index.html.
"Set Up an Operating System and Drivers" on page 104
Next Steps ■
Configure RAID in Legacy BIOS Boot Mode
reset /System
Configure Server Drives for OS Installation 95
