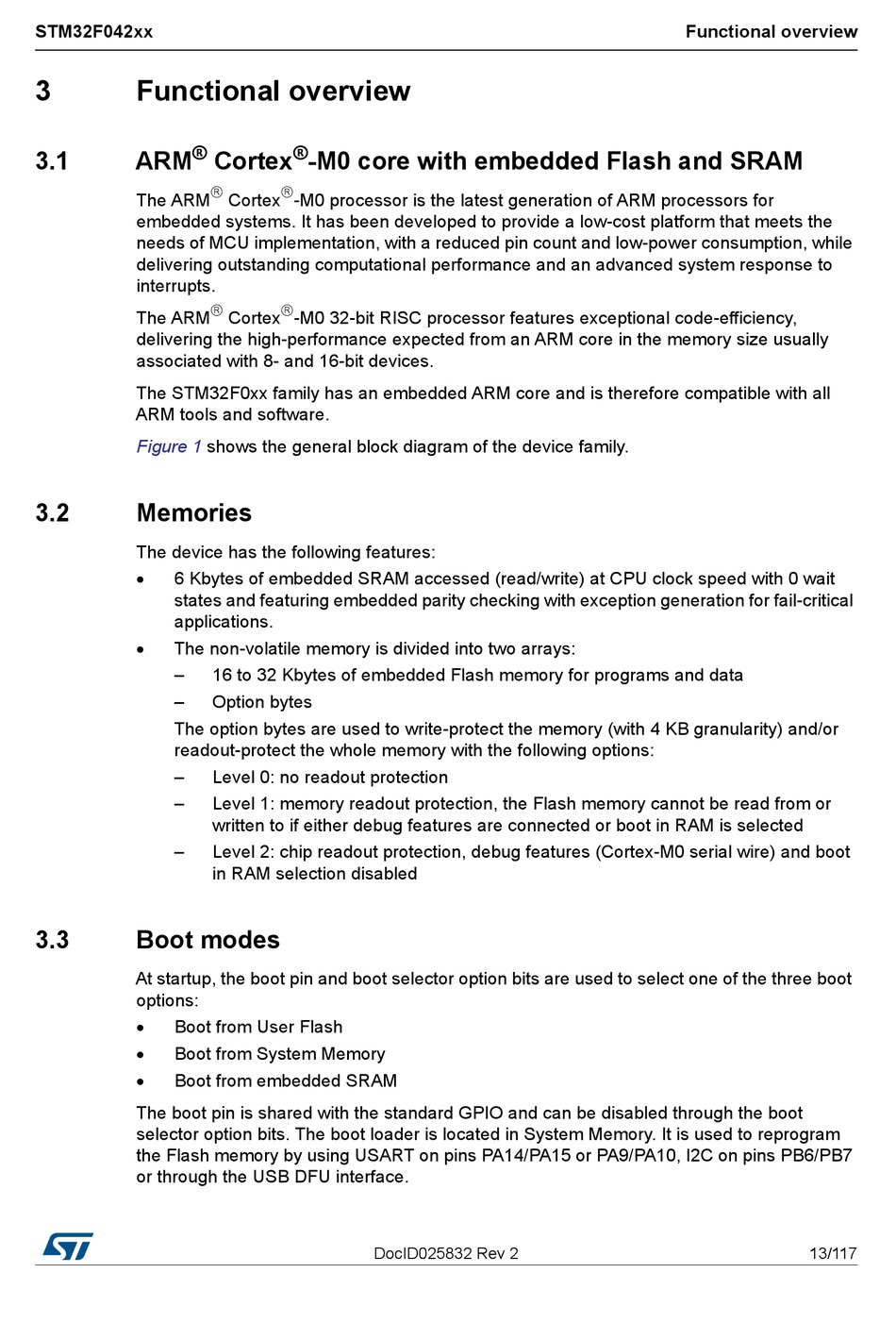

Functional overview

®
3.1 ARM
The ARM
embedded systems. It has been developed to provide a low-cost platform that meets the
needs of MCU implementation, with a reduced pin count and low-power consumption, while
delivering outstanding computational performance and an advanced system response to
interrupts.
The ARM
delivering the high-performance expected from an ARM core in the memory size usually
associated with 8- and 16-bit devices.
The STM32F0xx family has an embedded ARM core and is therefore compatible with all
ARM tools and software.
Figure 1
3.2

Memories

The device has the following features:

6 Kbytes of embedded SRAM accessed (read/write) at CPU clock speed with 0 wait
states and featuring embedded parity checking with exception generation for fail-critical
applications.

The non-volatile memory is divided into two arrays:
–
–
The option bytes are used to write-protect the memory (with 4 KB granularity) and/or
readout-protect the whole memory with the following options:
–
–
–
3.3

Boot modes

At startup, the boot pin and boot selector option bits are used to select one of the three boot
options:

Boot from User Flash

Boot from System Memory

Boot from embedded SRAM
The boot pin is shared with the standard GPIO and can be disabled through the boot
selector option bits. The boot loader is located in System Memory. It is used to reprogram
the Flash memory by using USART on pins PA14/PA15 or PA9/PA10, I2C on pins PB6/PB7
or through the USB DFU interface.
®
Cortex -M0 core with embedded Flash and SRAM
 
Cortex -M0 processor is the latest generation of ARM processors for
 
Cortex -M0 32-bit RISC processor features exceptional code-efficiency,
shows the general block diagram of the device family.
16 to 32 Kbytes of embedded Flash memory for programs and data
Option bytes
Level 0: no readout protection
Level 1: memory readout protection, the Flash memory cannot be read from or
written to if either debug features are connected or boot in RAM is selected
Level 2: chip readout protection, debug features (Cortex-M0 serial wire) and boot
in RAM selection disabled
