Figure 51. Tssop20 Recommended Footprint; Figure 52. Tssop20 Package Top View - STMicroelectronics STM32F042G4 Manual

STM32F042xx
1. Dimensions are in millimeters.
Marking of engineering samples for TSSOP20
The following figure shows the engineering sample marking for the TSSOP20 package.
Only the information field containing the engineering sample marking is shown.
1. Samples marked "E" are to be considered as "Engineering Samples": i.e. they are intended to be sent to
customer for electrical compatibility evaluation and may be used to start customer qualification where
specifically authorized by ST in writing. In no event ST will be liable for any customer usage in production.
Only if ST has authorized in writing the customer qualification Engineering Samples can be used for
reliability qualification trials.

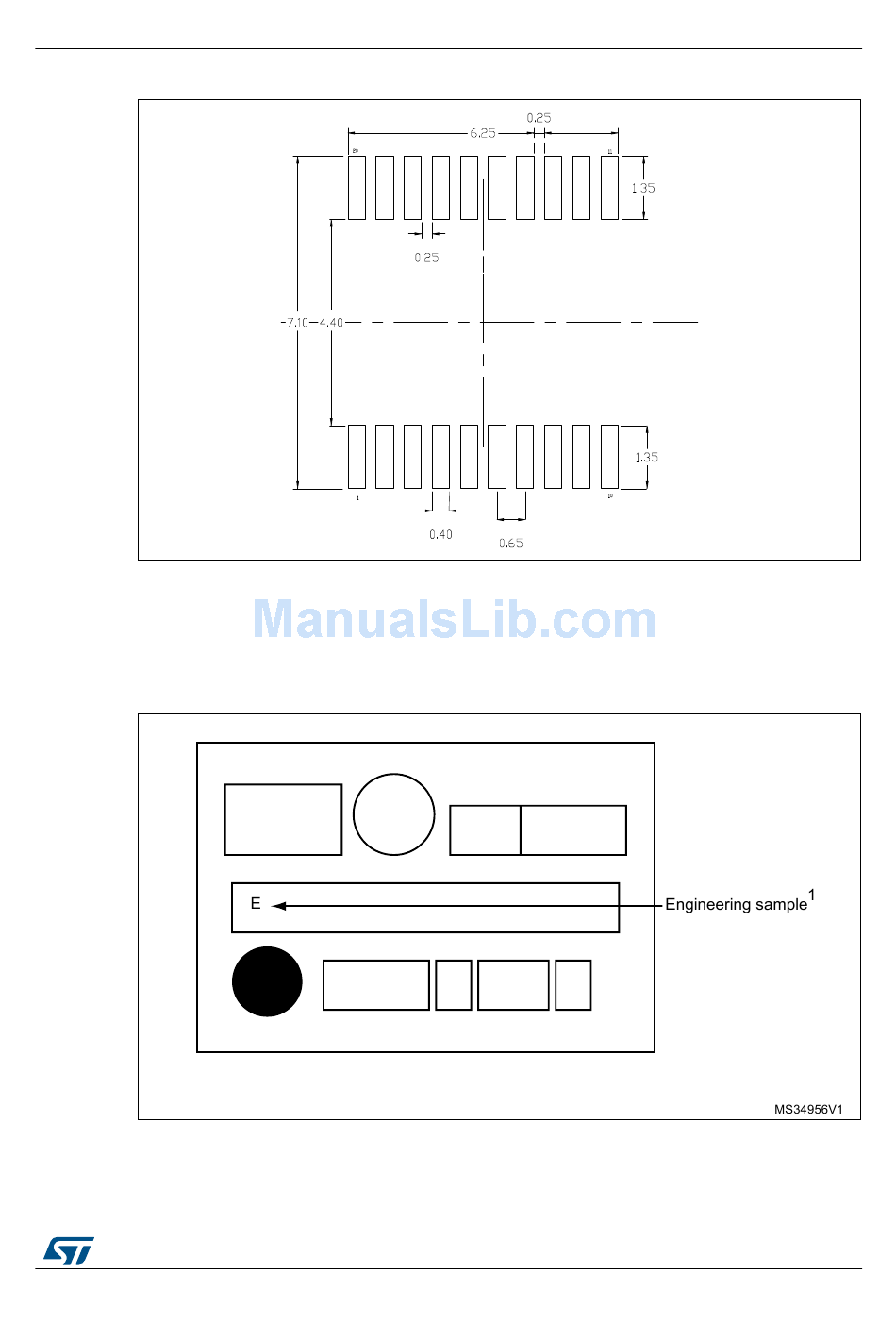

Figure 51. TSSOP20 recommended footprint

Figure 52. TSSOP20 package top view
