Package characteristics

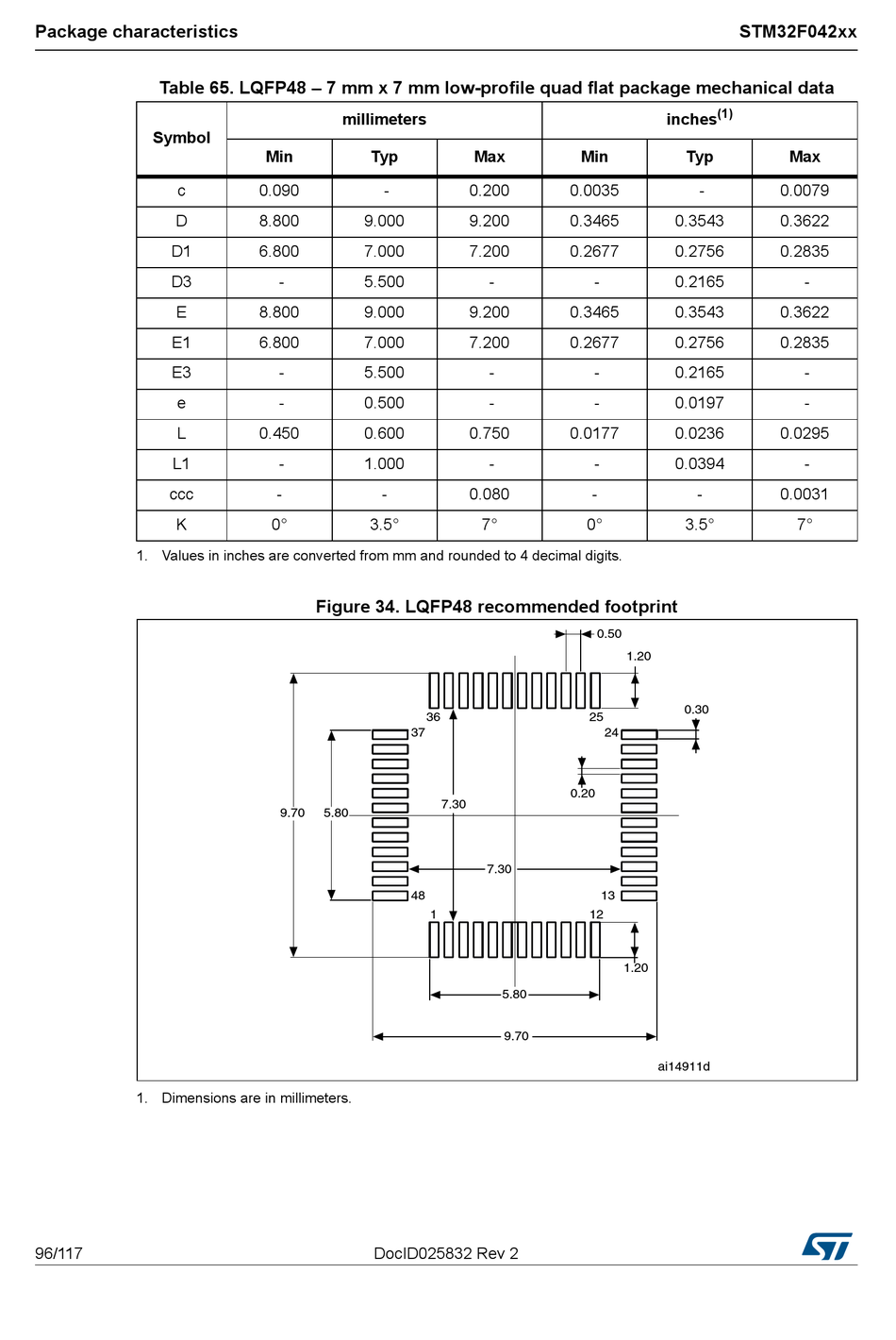

Table 65. LQFP48 – 7 mm x 7 mm low-profile quad flat package mechanical data
Symbol
c
D
D1
D3
E
E1
E3
e
L
L1
ccc
K
1. Values in inches are converted from mm and rounded to 4 decimal digits.
1. Dimensions are in millimeters.
96/117
millimeters
Min Typ
0.090 -
8.800 9.000
6.800 7.000
- 5.500
8.800 9.000
6.800 7.000
- 5.500
- 0.500
0.450 0.600
- 1.000
- -
0° 3.5°

Figure 34. LQFP48 recommended footprint

DocID025832 Rev 2
Max Min
0.200 0.0035
9.200 0.3465
7.200 0.2677
- -
9.200 0.3465
7.200 0.2677
- -
- -
0.750 0.0177
- -
0.080 -
7° 0°
STM32F042xx
(1)
inches
Typ Max
- 0.0079
0.3543 0.3622
0.2756 0.2835
0.2165 -
0.3543 0.3622
0.2756 0.2835
0.2165 -
0.0197 -
0.0236 0.0295
0.0394 -
- 0.0031
3.5° 7°
