STM32F042xx
7

Package characteristics

7.1

Package mechanical data

In order to meet environmental requirements, ST offers these devices in different grades of
ECOPACK
specifications, grade definitions and product status are available at: www.st.com.
ECOPACK

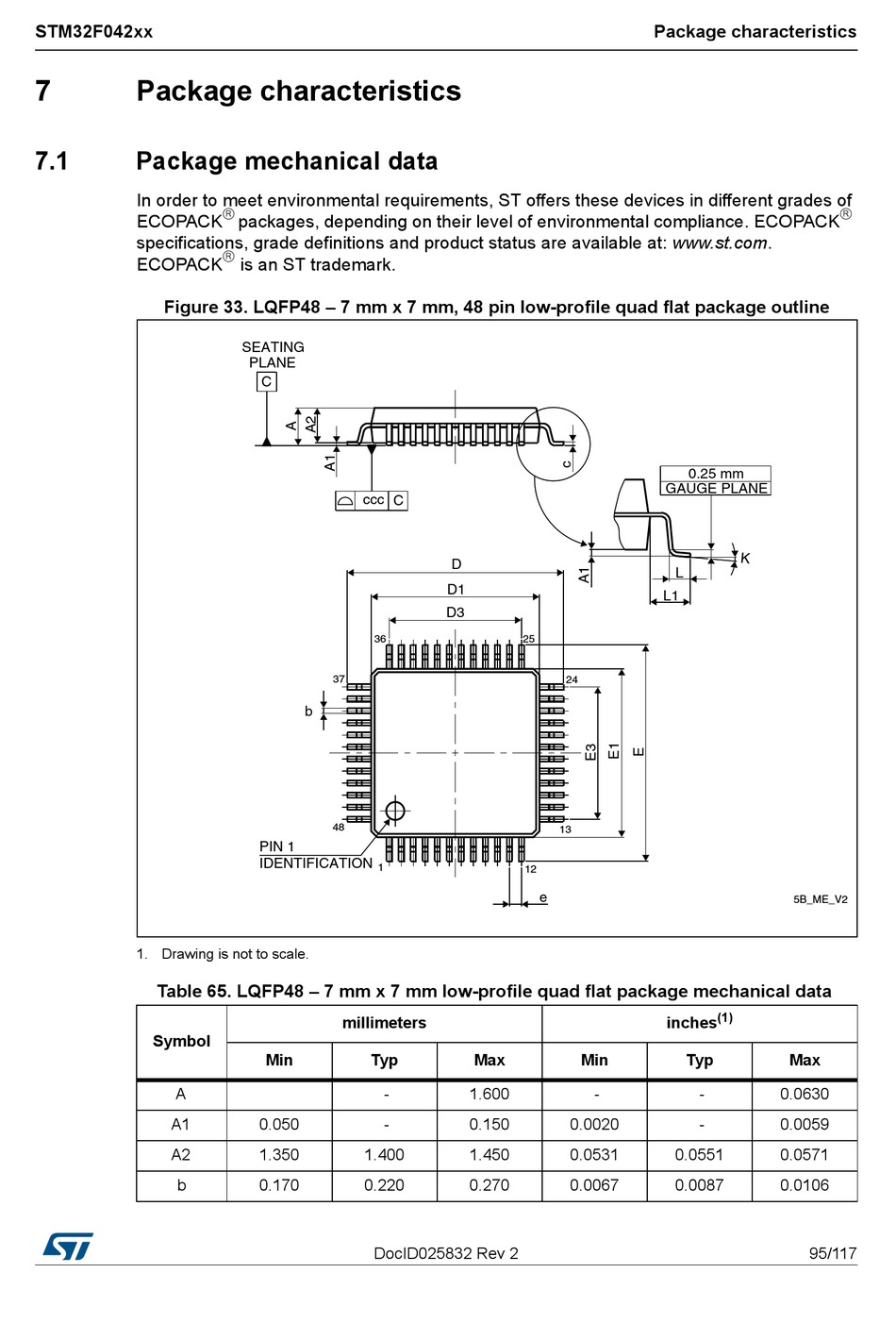

Figure 33. LQFP48 – 7 mm x 7 mm, 48 pin low-profile quad flat package outline
1. Drawing is not to scale.
Table 65. LQFP48 – 7 mm x 7 mm low-profile quad flat package mechanical data
Symbol
A
A1
A2
b

packages, depending on their level of environmental compliance. ECOPACK

is an ST trademark.
millimeters
Min Typ
-
0.050 -
1.350 1.400
0.170 0.220
DocID025832 Rev 2
Max Min
1.600 -
0.150 0.0020
1.450 0.0531
0.270 0.0067
Package characteristics
(1)
inches
Typ Max
- 0.0630
- 0.0059
0.0551 0.0571
0.0087 0.0106
95/117

