Lower Feeder Unit
Note:
Whenever removing or reinstalling the Lower Feeder Unit, be sure first to unplug
the power cord of the printer from the power outlet.
1.

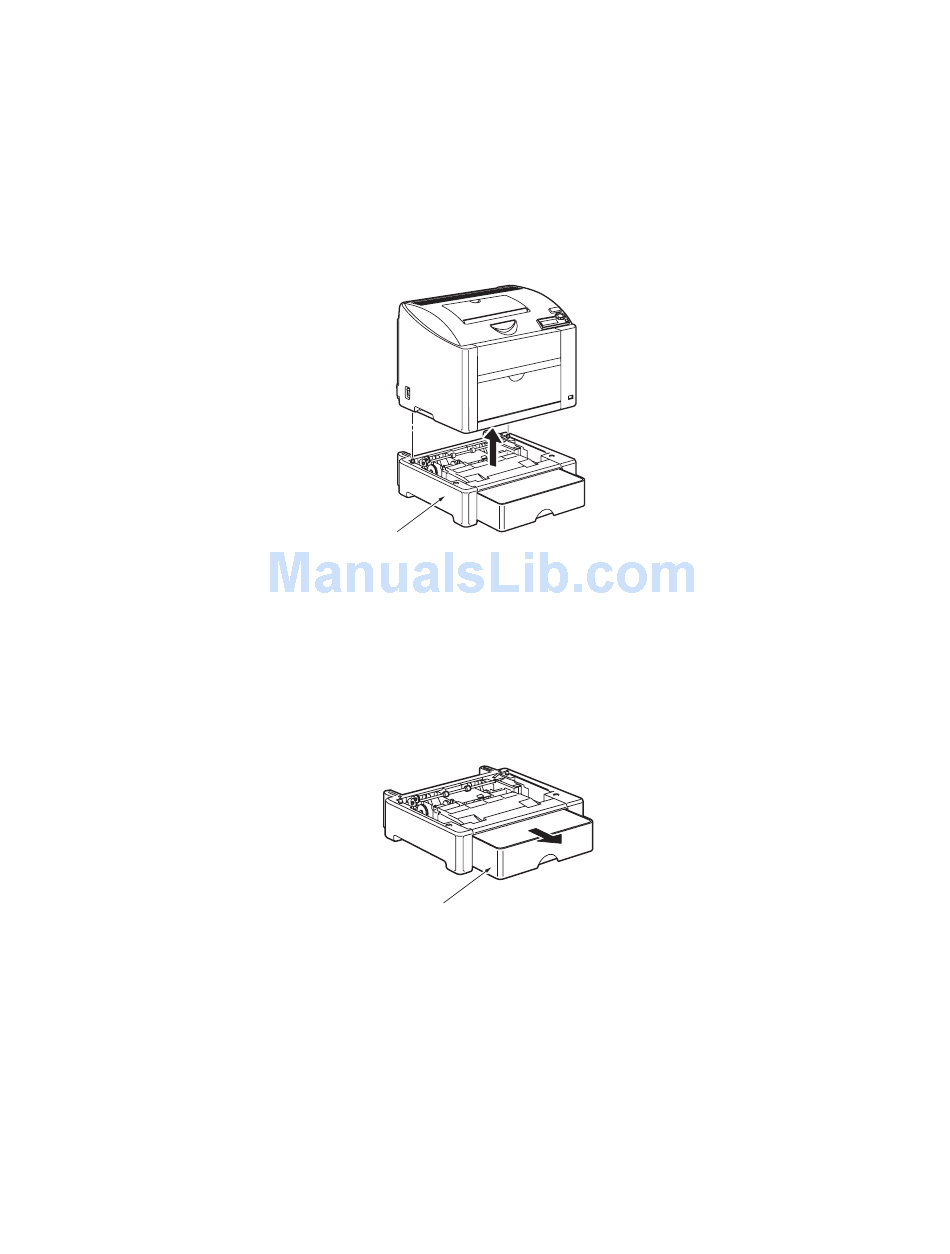

Lift the printer main body and then remove the Lower Feeder Unit [1] from the printer.
Tray
1.
Remove the Lower Feeder Unit from the main unit.
2.
Slide out the Tray [1].
Phaser® 6120 Color Laser Printer Service Manual
[1]
4056fs2504c0
[1]
4056fs2503c0
8-5
