Pin
Signal Description
1
Transmit Data +
2
Transmit Data –
3
Receive Data +
4
No Connect
Related Information
"Rear Panel Components (Installation)" on page 13
■
"Connect the NET MGT Cable" on page 60
■
"Assign a Static IP Address to the NET MGT Port" on page 77
■

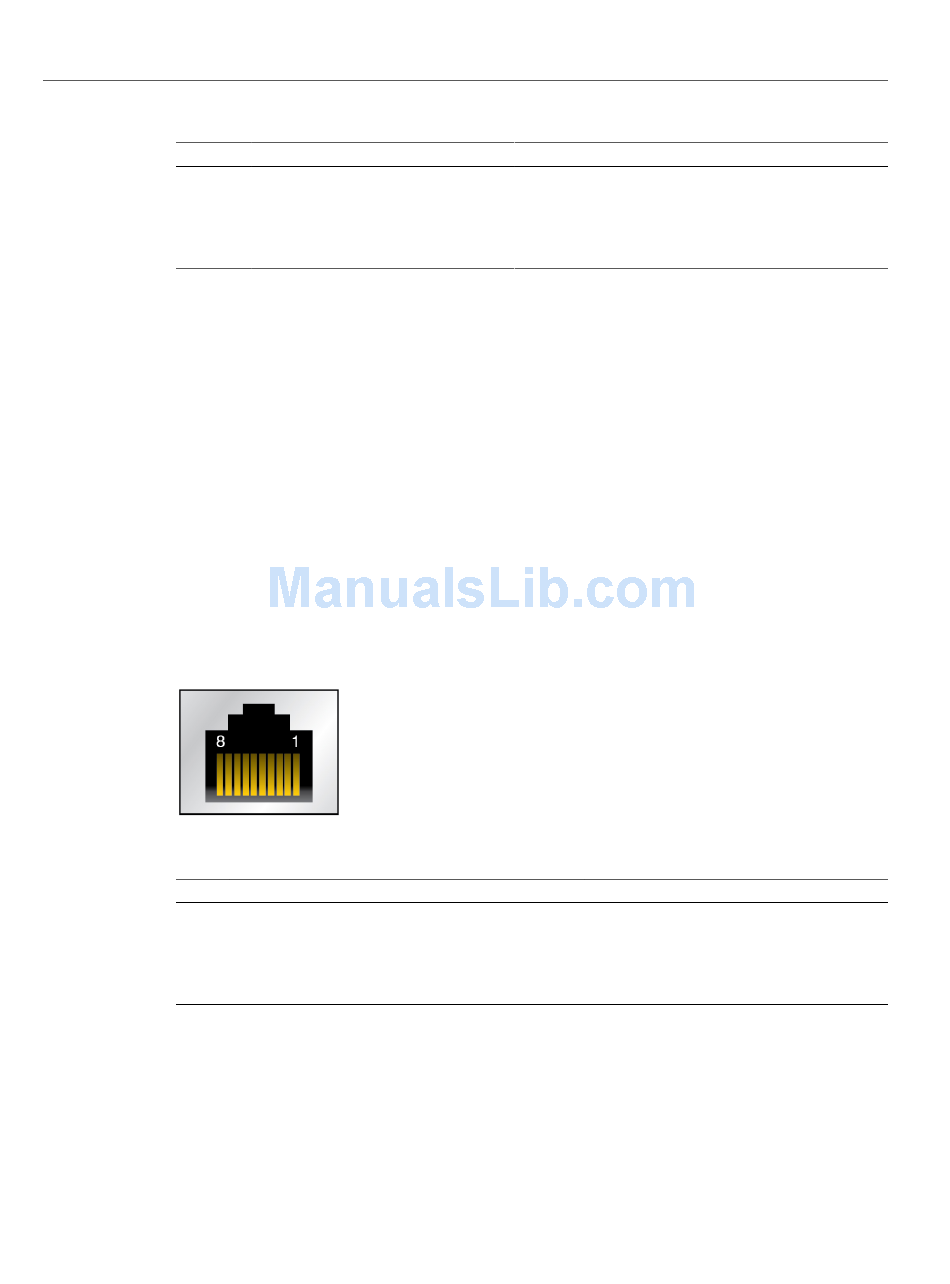

Gigabit Ethernet Ports
Four RJ-45 Ethernet ports (NET 0, NET 1, NET 2, NET 3) can be accessed from the rear panel.
See
"Rear Panel Components (Installation)" on page
Mbps, 1000 Mbps, and 10000 Mbps.
Pin
Signal Description
1
Transmit/Receive Data 0 +
2
Transmit/Receive Data 0 –
3
Transmit/Receive Data 1 +
4
Transmit/Receive Data 2 +
Related Information
"Rear Panel Components (Installation)" on page 13
■
Pin
Signal Description
5
No Connect
6
Receive Data –
7
No Connect
8
No Connect
13. The Ethernet interfaces operate at 100
Pin
Signal Description
5
Transmit/Receive Data 2 –
6
Transmit/Receive Data 1 –
7
Transmit/Receive Data 3 +
8
Transmit/Receive Data 3 –
Identifying Ports
Connecting Cables
55
