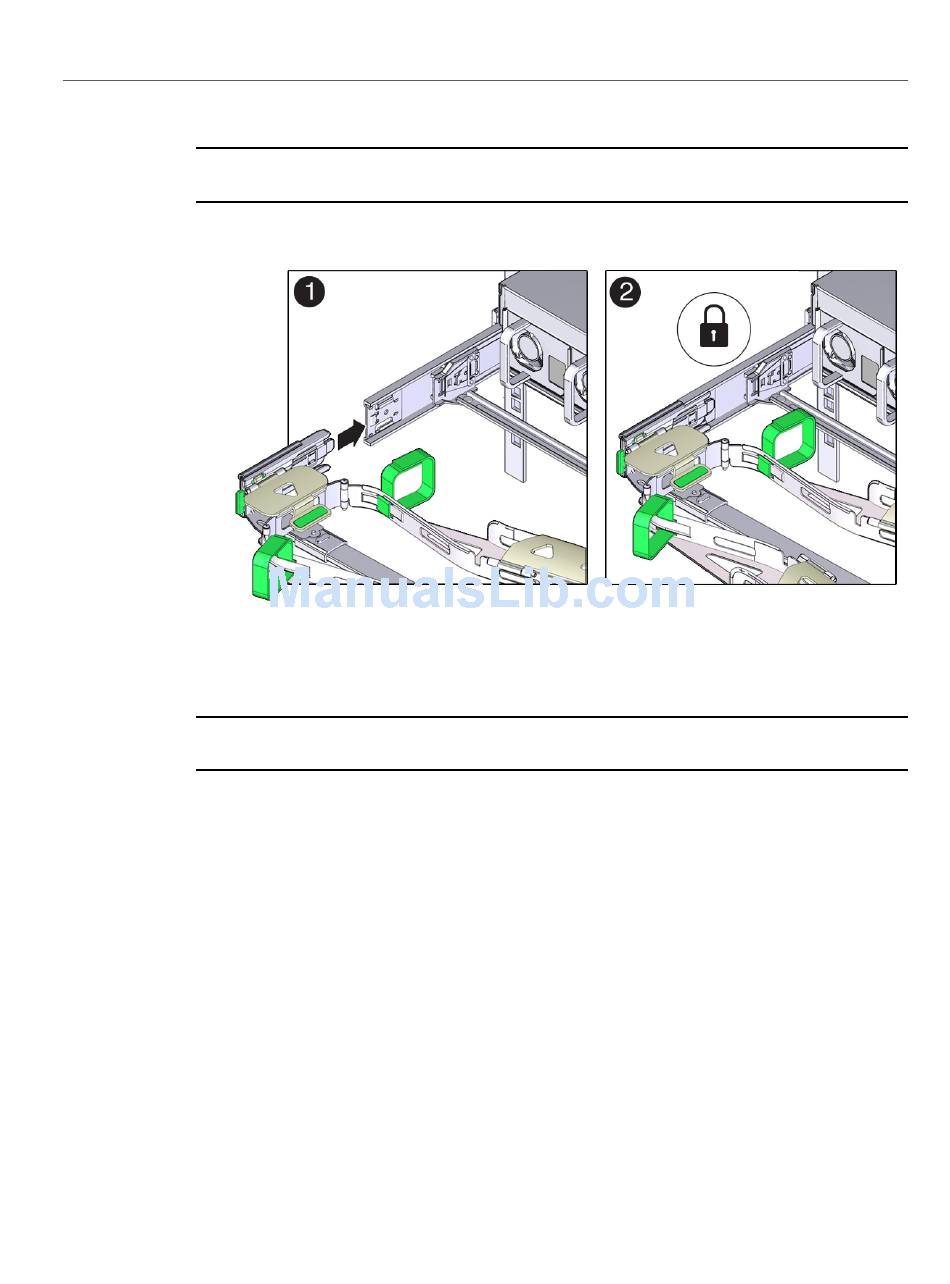

Attach the CMA to the Server
Note -
remove the latching bracket so that you can remove connector D.
9.
Gently tug on the left side of the CMA's slide bar to verify that connector D is
properly seated.
Note -
remove the latching bracket so that you can remove connector D.
10.
Gently tug on the four CMA connection points to ensure that the CMA
connectors are fully seated before you allow the CMA to hang by its own weight.
11.
Verify that the slide rails and CMA operate properly.
See
"Verify Operation of Slide Rails and CMA" on page
Related Information
"Prepare the CMA for Installation" on page 38
■
"Secure Cables to the CMA" on page 62
■
46
SPARC T7-1 Server Installation Guide • October 2015
