VGA Port

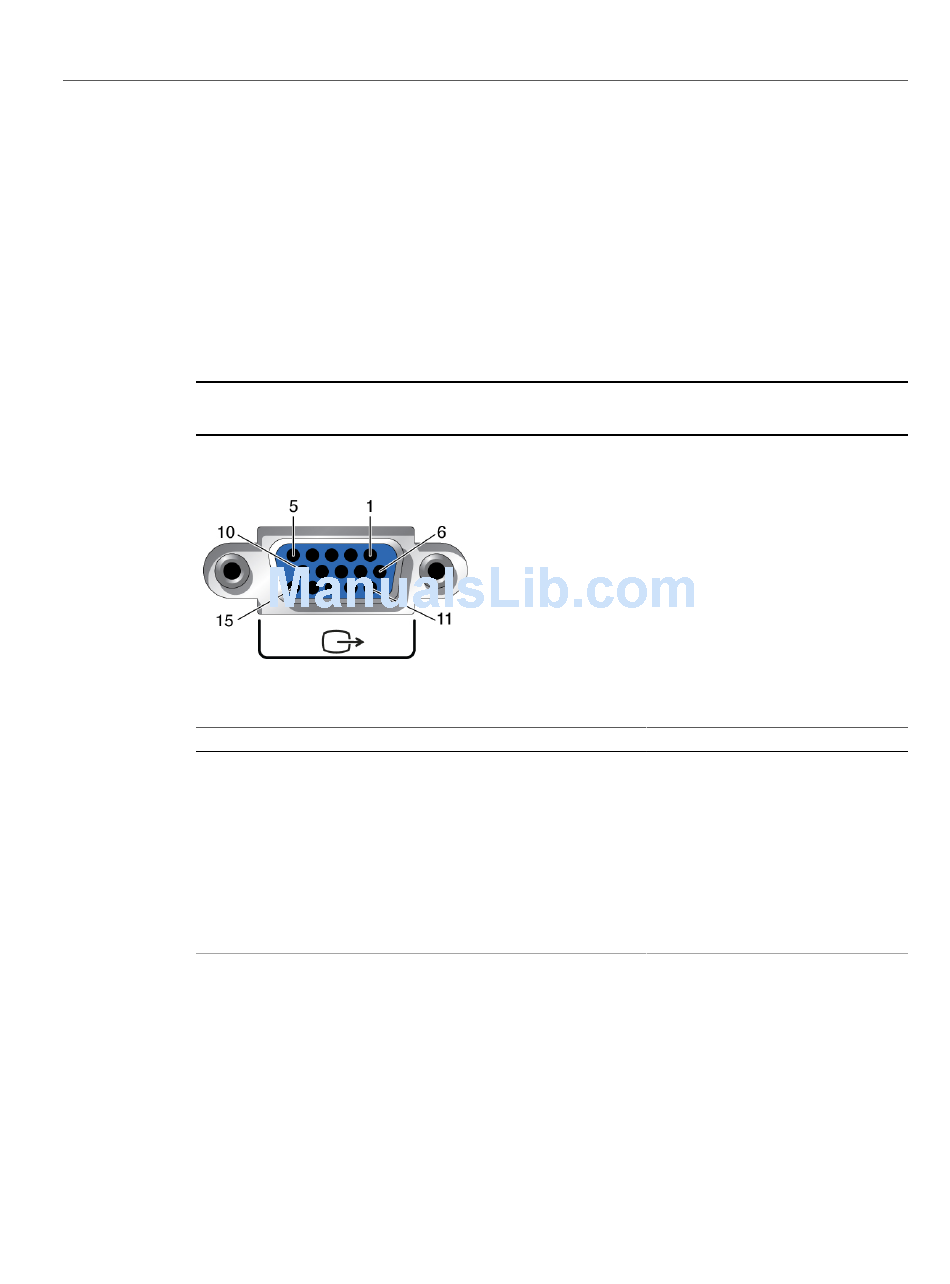

The server has one 15-pin VGA video port on the rear of the server. See
Components (Installation)" on page
to achieve the required connection. Maximum supported resolution is 1024 x 768.
Note -
over 6 meters.
Pin
1
2
3
4
5
6
7
8
Related Information
"Front Panel Components (Installation)" on page 12
■
"Rear Panel Components (Installation)" on page 13
■
"Cabling Requirements" on page 51
■
56
SPARC T7-1 Server Installation Guide • October 2015
The cable length used to connect between the monitor and the VGA port should not be
Signal Description
Red Video
Green Video
Blue Video
Monitor ID - Bit 2
Ground
Red Ground
Green Ground
Blue Ground
13. Use a DB-15 video cable to connect to a video adapter
Pin
9
10
11
12
13
14
15
"Rear Panel
Signal Description
[KEY]
Sync Ground
Monitor ID - Bit 1
VGA 12C Serial Data
Horizontal Sync
Vertical Sync
VGA 12C Serial Clock
