Attach the CMA to the Server
a.

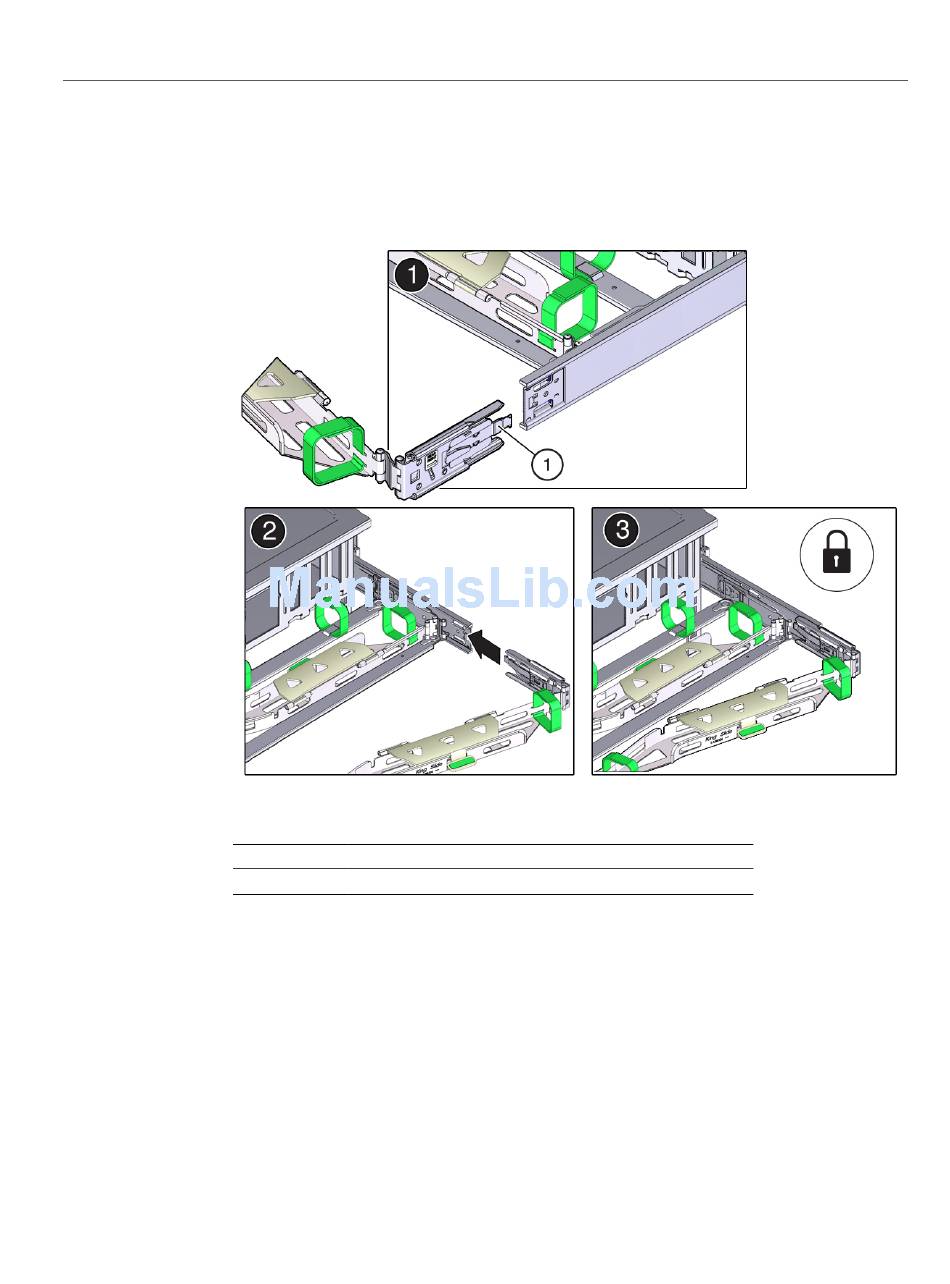

Align connector C with the slide rail so that the locking spring (callout 1) is
positioned inside (server side) of the right slide rail (panel 1).
No.
1
Insert connector C into the right slide rail until it locks into place with an
b.
audible click (panels 2 and 3).
Gently tug on the right side of the CMA's rear slide bar to verify that
c.
connector C is properly seated.
Prepare the CMA's connector D for installation.
7.
44
SPARC T7-1 Server Installation Guide • October 2015
Description
Connector C locking spring
