Attach Slide Rail Assemblies to the Rack
7.

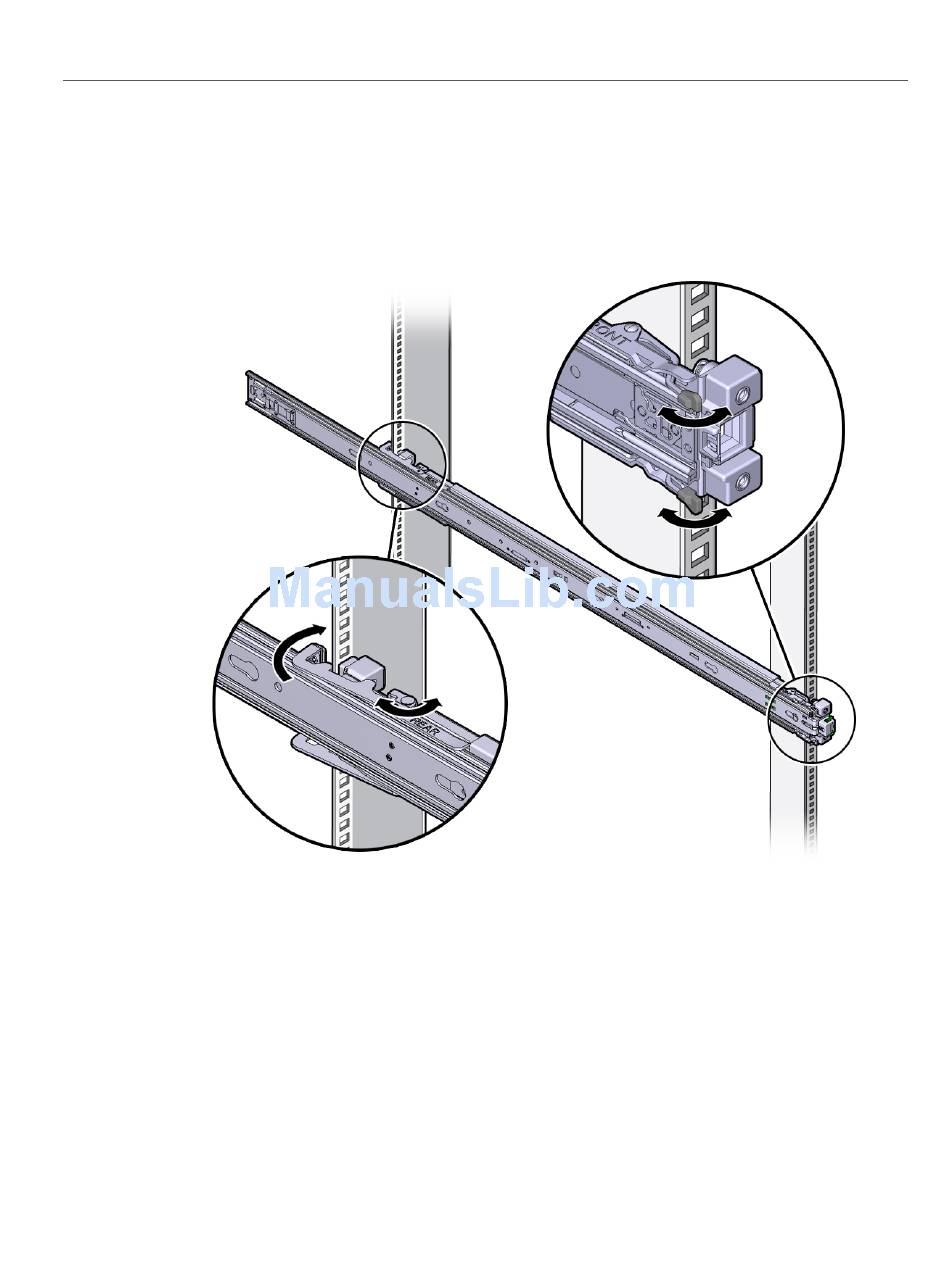

Starting with either the left or right side of the rack, align the rear of the slide rail
assembly against the inside of the rear rack rail, and push until the assembly
locks into place with an audible click.
Align the front of the slide rail assembly against the outside of the front rack rail,
8.
and push until the assembly locks into place with an audible click.
9.
(Optional) If you chose to secure the slide rail assembly to the rack with screws,
insert M6 mounting screws through both front and rear slide rail brackets and
rack posts, and then secure the screws to the rack posts with the caged nuts.
10.
Repeat this procedure to attach the slide rail assembly to the other side of the
rack.
34
SPARC T7-1 Server Installation Guide • October 2015
