# Configure an IP address for the interface.
[RouterD-Serial2/3/0:15] ip address 100.1.1.254 255.255.255.0
# Enable PPP encapsulation on the interface.
[RouterD-Serial2/3/0:15] link-protocol ppp
# Configure CHAP authentication on the interface.
[RouterD-Serial2/3/0:15] ppp authentication-mode chap
[RouterD-Serial2/3/0:15] ppp chap user userd
# Configure the interface to assign IP addresses to PPP users.
[RouterD-Serial2/3/0:15] remote address pool 1
[RouterD-Serial2/3/0:15] quit
# Configure an IP address pool for assigning addresses in the system domain.
[RouterD] domain system
[RouterD-isp-system] ip pool 1 100.1.1.1 100.1.1.16
[RouterD-isp-system] quit
Dynamic route backup for traditional DDR configuration
example
Network requirements
As shown in
running PPP. They can also call each other by using traditional DDR. The telephone number of Router B
is 8810052.
Enable dynamic route backup on Router A to monitor network segment 40.0.0.0/8 on Router B.
The PPP link acts as the primary link between Router A and Router B. When there are no valid routes to
the 40.0.0.0/8 network segment, Router A automatically creates an ISDN BRI link.

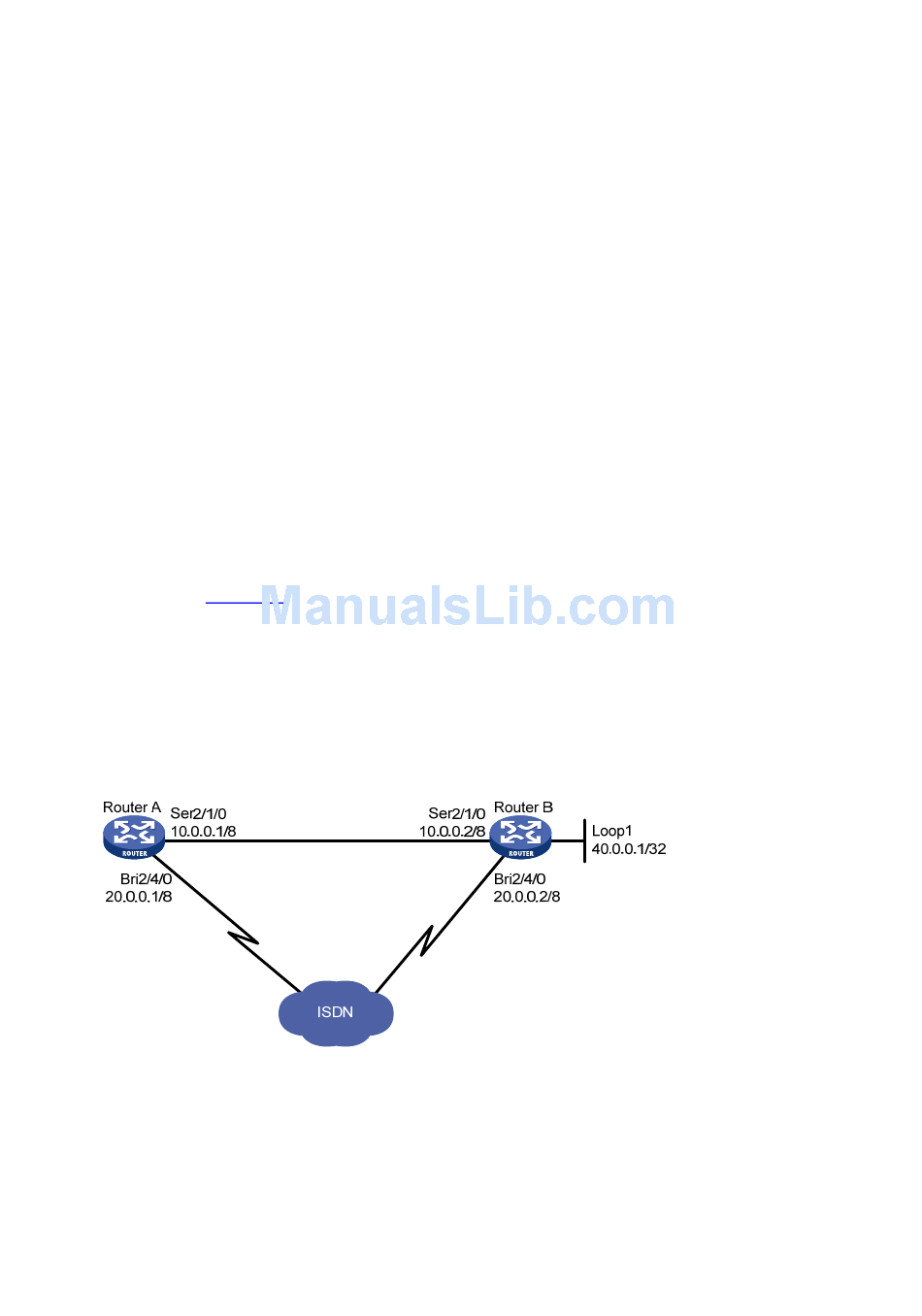

Figure 68 Network diagram
Configuration procedure
1. Configure Router A:
# Create dialer group 1 and configure a dial rule for it.
<RouterA> system-view
[RouterA] dialer-group 1 rule ip permit
# Configure an IP address for interface BRI 2/4/0.
[RouterA] interface bri 2/4/0
Figure 68, Router A and Router B are directly connected through their serial interfaces
