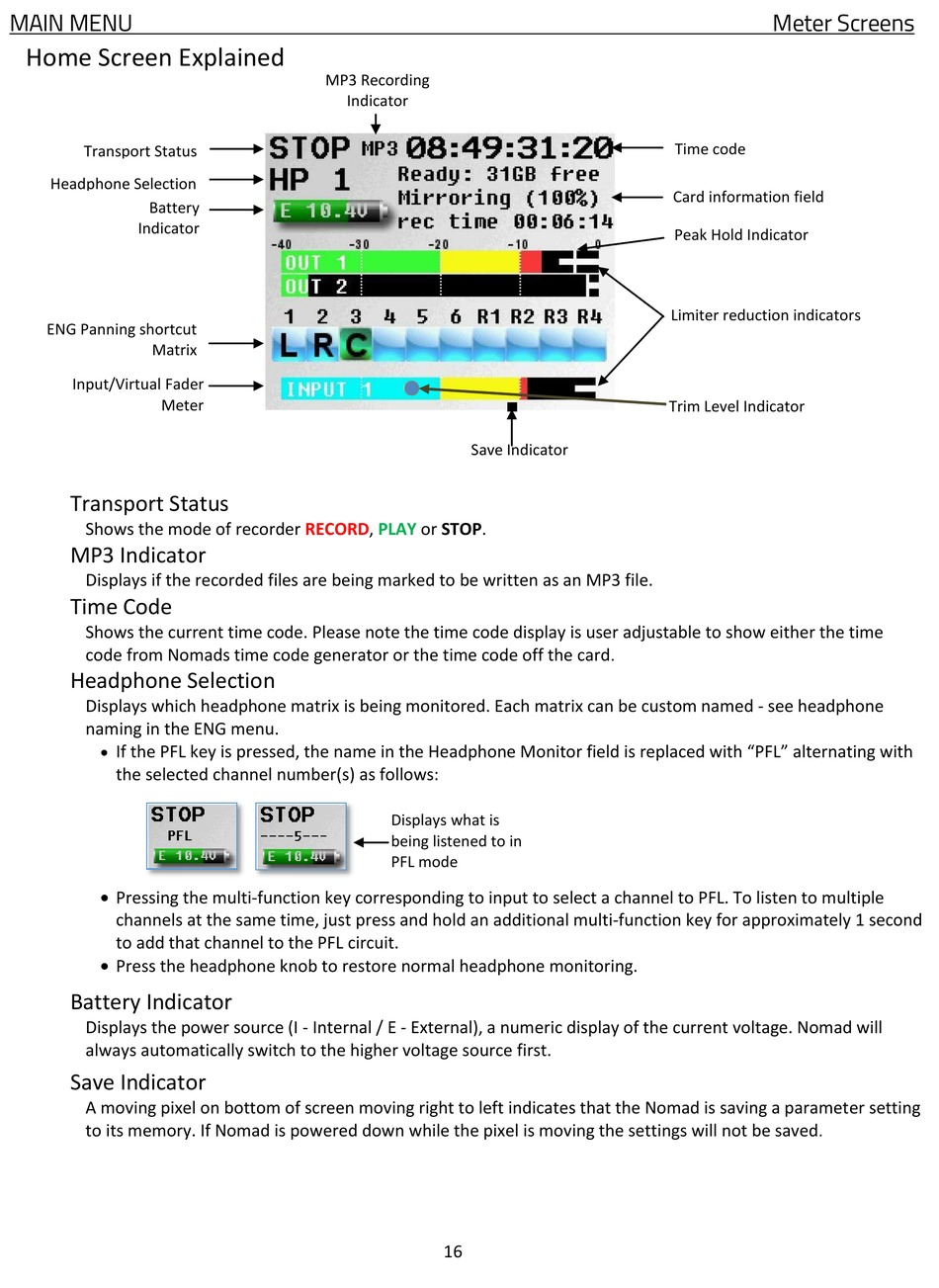

Home Screen Explained

Transport Status

Headphone Selection

Battery
Indicator
ENG Panning shortcut
Matrix
Input/Virtual Fader
Meter
Transport Status
Shows the mode of recorder RECORD,

MP3 Indicator

Displays if the recorded files are being marked to be written as an MP3 file.

Time Code

Shows the current time code. Please note the time code display is user adjustable to show either the time
code from Nomads time code generator or the time code off the card
Headphone Selection
Displays which headphone matrix is being monitored. Each matrix can be custom named - see headphone
naming in the ENG menu.

If the PFL key is pressed, the name in the Headphone Monitor field is replaced with "PFL" alternating with
the selected channel number(s) as follows:
 Pressing the multi-function key corresponding to input to select a channel to PFL. To listen to multiple
channels at the same time, just press and hold an additional multi-function key for approximately 1 second
to add that channel to the PFL circuit.
 Press the headphone knob to restore normal headphone monitoring.

Battery Indicator

Displays the power source (I - Internal / E - External), a numeric display of the current voltage. Nomad will
always automatically switch to the higher voltage source first.

Save Indicator

A moving pixel on bottom of screen moving right to left indicates that the Nomad is saving a parameter setting
to its memory. If Nomad is powered down while the pixel is moving the settings will not be saved
MP3 Recording
Indicator
Save Indicator
PLAY or STOP.
Displays what is
being listened to in
PFL mode
