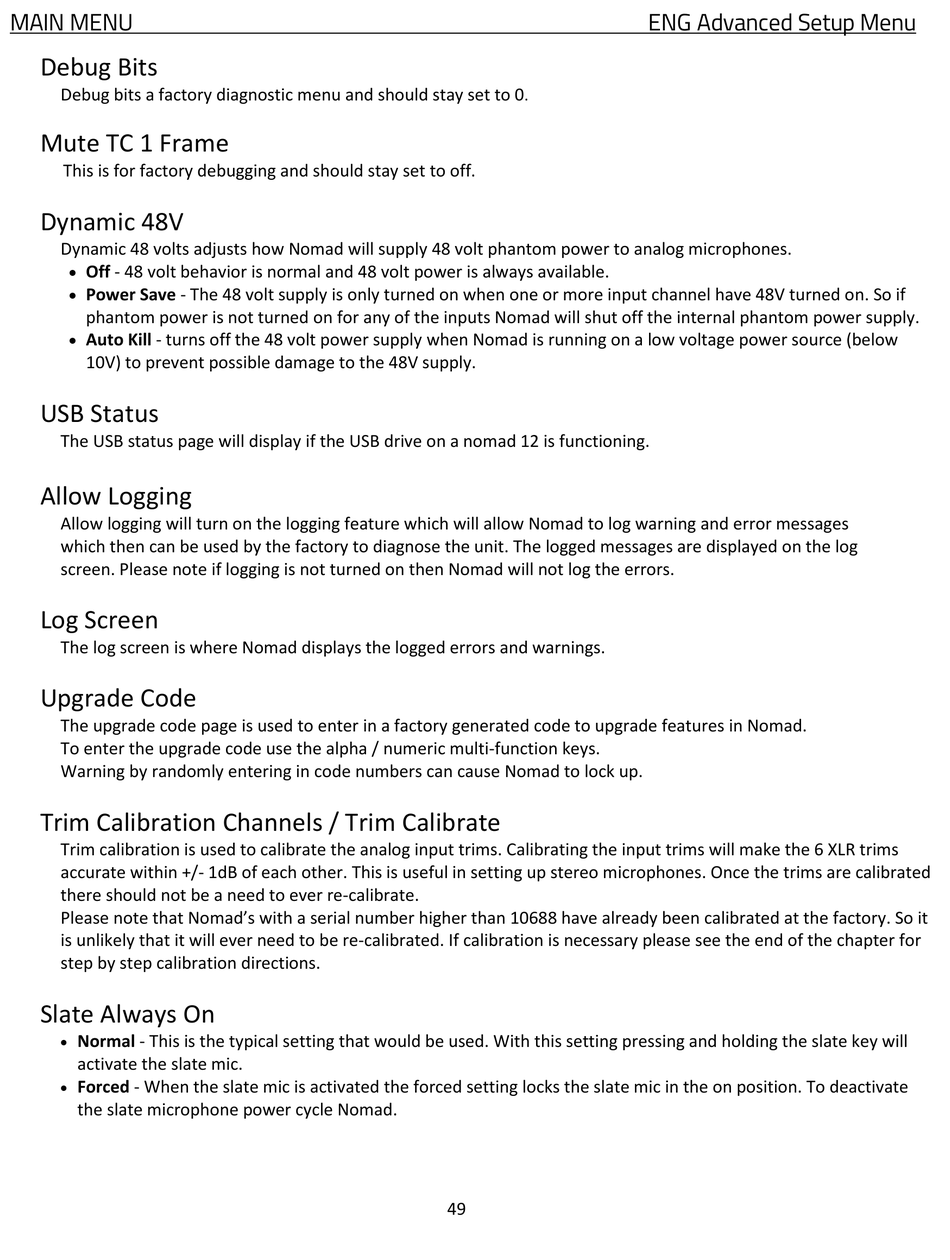

MAIN MENU

Debug Bits

Debug bits a factory diagnostic menu and should stay set to 0

Mute TC 1 Frame

This is for factory debugging and should stay set to off.

Dynamic 48V

Dynamic 48 volts adjusts how Nomad will supply 48 volt phantom power to analog microphones.

Off - 48 volt behavior is normal and 48 volt power is always available.

Power Save - The 48 volt supply is only turned on when one or more input channel have 48V turned on. So if
phantom power is not turned on for any of the inputs Nomad will shut off the internal phantom power supply.

Auto Kill - turns off the 48 volt power supply when Nomad is running on a low voltage power source (below
10V) to prevent possible damage to the 48V supply.

USB Status

The USB status page will display if the USB drive on a nomad 12 is functioning.

Allow Logging

Allow logging will turn on the logging feature which will allow Nomad to log warning and error messages
which then can be used by the factory to diagnose the unit. The logged messages are displayed on the log
screen. Please note if logging is not turned on then Nomad will not log the errors.

Log Screen

The log screen is where Nomad displays the logged errors and warnings.

Upgrade Code

The upgrade code page is used to enter in a factory generated code to upgrade features in Nomad.
To enter the upgrade code use the alpha / numeric multi-function keys.
Warning by randomly entering in code numbers can cause Nomad to lock up.

Trim Calibration Channels / Trim Calibrate

Trim calibration is used to calibrate the analog input trims. Calibrating the input trims will make the 6 XLR trims
accurate within +/- 1dB of each other. This is useful in setting up stereo microphones. Once the trims are calibrated
there should not be a need to ever re-calibrate.
Please note that Nomad's with a serial number higher than 10688 have already been calibrated at the factory. So it
is unlikely that it will ever need to be re-calibrated. If calibration is necessary please see the end of the chapter for
step by step calibration directions.

Slate Always On


Normal - This is the typical setting that would be used. With this setting pressing and holding the slate key will
activate the slate mic.

Forced - When the slate mic is activated the forced setting locks the slate mic in the on position. To deactivate
the slate microphone power cycle Nomad.
.
49
ENG Advanced Setup Menu
