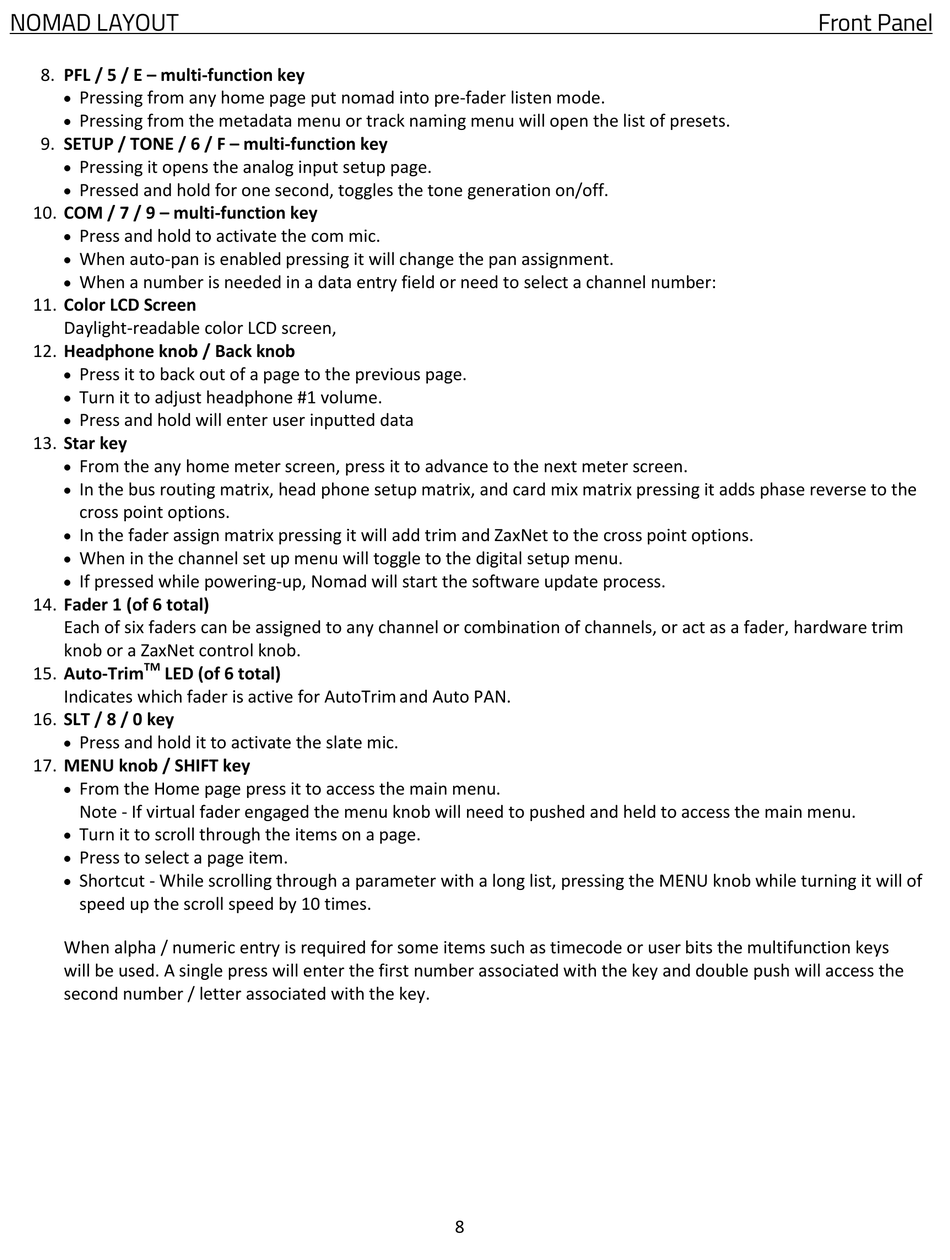

NOMAD LAYOUT
8. PFL / 5 / E – multi-function key

Pressing from any home page put nomad into pre-fader listen mode.

Pressing from the metadata menu or track naming menu will open the list of presets.
9. SETUP / TONE / 6 / F – multi-function key

Pressing it opens the analog input setup page.

Pressed and hold for one second, toggles the tone generation on/off.
10. COM / 7 / 9 – multi-function key

Press and hold to activate the com mic.

When auto-pan is enabled pressing it will change the pan assignment.

When a number is needed in a data entry field or need to select a channel number:
11. Color LCD Screen
Daylight-readable color LCD screen,
12. Headphone knob / Back knob

Press it to back out of a page to the previous page.

Turn it to adjust headphone #1 volume.

Press and hold will enter user inputted data
13. Star key

From the any home meter screen, press it to advance to the next meter screen.

In the bus routing matrix, head phone setup matrix, and card mix matrix pressing it adds phase reverse to the
cross point options.

In the fader assign matrix pressing it will add trim and ZaxNet to the cross point options.

When in the channel set up menu will toggle to the digital setup menu.

If pressed while powering-up, Nomad will start the software update process.
14. Fader 1 (of 6 total)
Each of six faders can be assigned to any channel or combination of channels, or act as a fader, hardware trim
knob or a ZaxNet control knob.
TM
15. Auto-Trim LED (of 6 total)
Indicates which fader is active for AutoTrim and Auto PAN.
16. SLT / 8 / 0 key

Press and hold it to activate the slate mic.
17. MENU knob / SHIFT key

From the Home page press it to access the main menu.
Note - If virtual fader engaged the menu knob will need to pushed and held to access the main menu.

Turn it to scroll through the items on a page.

Press to select a page item.

Shortcut - While scrolling through a parameter with a long list, pressing the MENU knob while turning it will of
speed up the scroll speed by 10 times.
When alpha / numeric entry is required for some items such as timecode or user bits the multifunction keys
will be used. A single press will enter the first number associated with the key and double push will access the
second number / letter associated with the key.
