NOMAD OPERATIONS

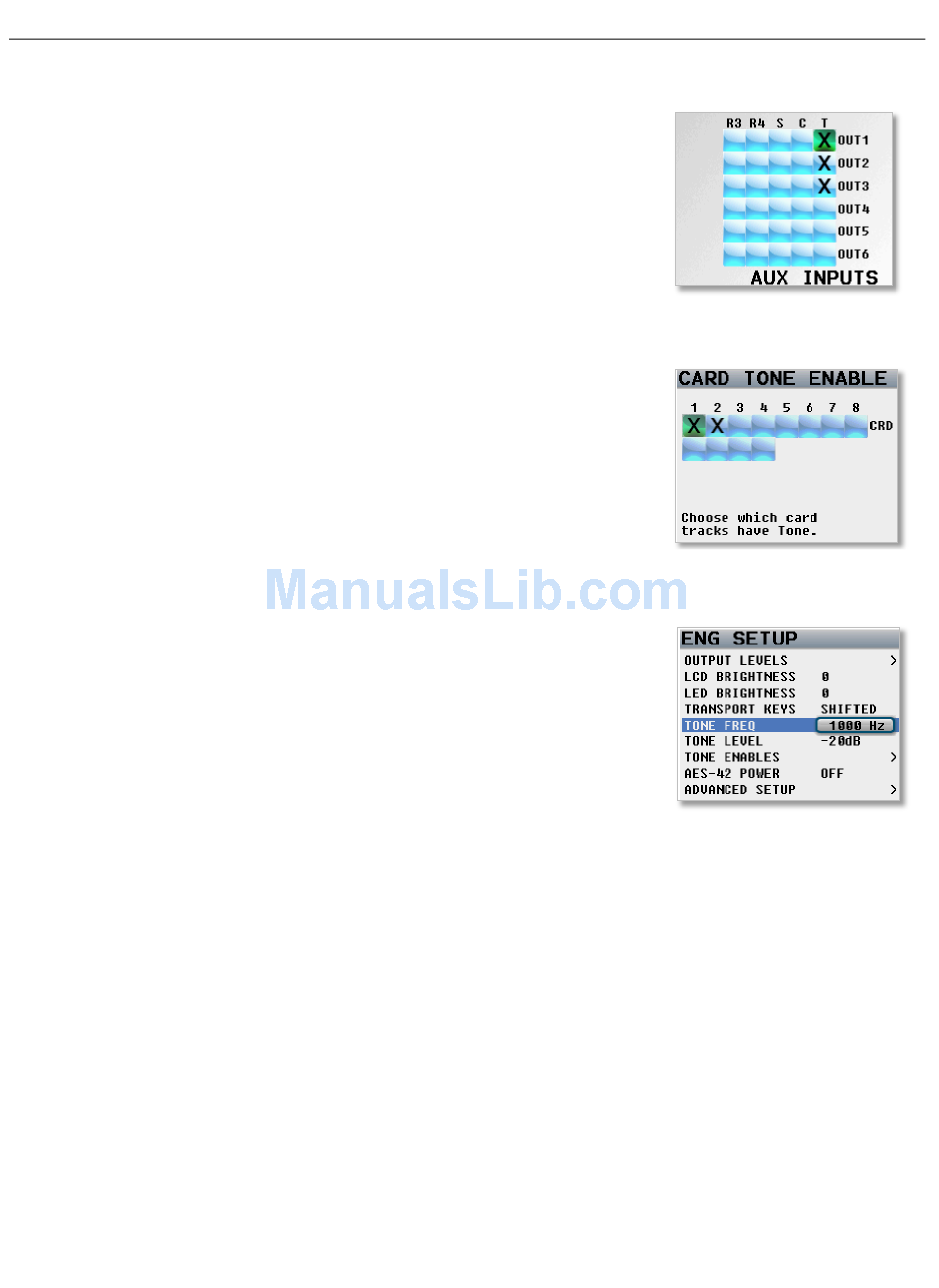

Setting Up and Engaging Tone

Assigning Tone to output busses

To assign tone to an output bus, press the BUS key and go to the output bus
assign matrix. When in the matrix press bus again to access the aux input
matrix to select which output bus will receive tone when tone is engaged.
Please note that only the busses with tone routed to it will output the slate
tone when the visual time code slate tone is activated.

Assigning tone to card tracks

To assign tone to card tracks, press the BUS key and go to the tone enable
matrix to select which card tracks will receive tone when tone is engaged.

Adjusting the tone frequency and level

Tone level and frequency can be adjusted in the ENG setup menu. Please note
it is advised to keep the tone level at -20dB for most operations.

Engaging tone

To toggle tone generation on/off, press and hold the SETUP Key for 1.5 seconds.
63
Tone Setup
Shows that output busses 1, 2 and 3
will output tone when tone is engaged.
Shows that card tracks 1 and 2 will
record tone when tone is engaged.
