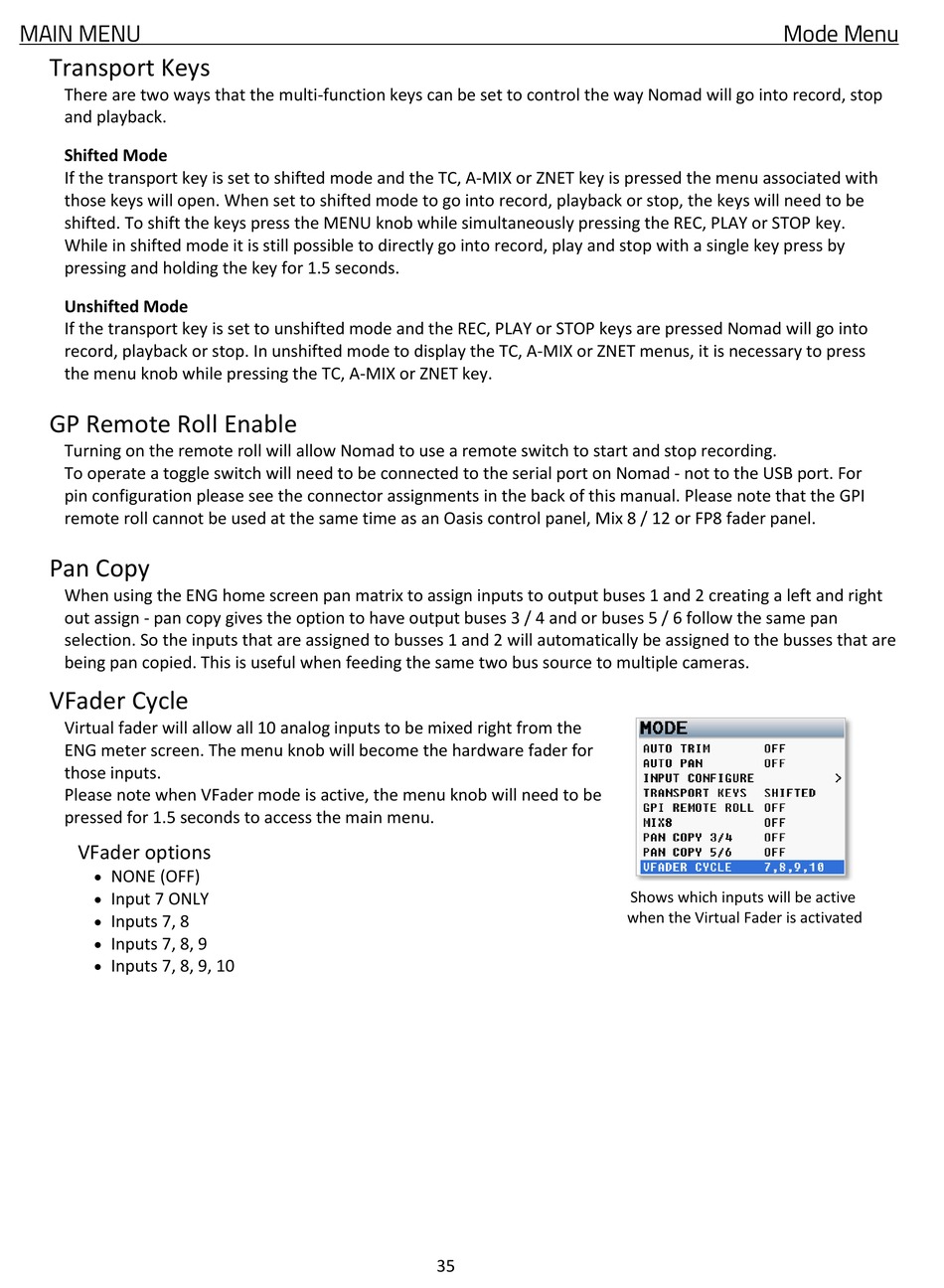

MAIN MENU

Transport Keys

There are two ways that the multi-function keys can be set to control the way Nomad will go into record, stop
and playback.

Shifted Mode

If the transport key is set to shifted mode and the TC, A-MIX or ZNET key is pressed the menu associated with
those keys will open. When set to shifted mode to go into record, playback or stop, the keys will need to be
shifted. To shift the keys press the MENU knob while simultaneously pressing the REC, PLAY or STOP key.
While in shifted mode it is still possible to directly go into record, play and stop with a single key press by
pressing and holding the key for 1.5 seconds.

Unshifted Mode

If the transport key is set to unshifted mode and the REC, PLAY or STOP keys are pressed Nomad will go into
record, playback or stop. In unshifted mode to display the TC, A-MIX or ZNET menus, it is necessary to press
the menu knob while pressing the TC, A-MIX or ZNET key.

GP Remote Roll Enable

Turning on the remote roll will allow Nomad to use a remote switch to start and stop recording.
To operate a toggle switch will need to be connected to the serial port on Nomad - not to the USB port. For
pin configuration please see the connector assignments in the back of this manual. Please note that the GPI
remote roll cannot be used at the same time as an Oasis control panel, Mix 8 / 12 or FP8 fader panel.

Pan Copy

When using the ENG home screen pan matrix to assign inputs to output buses 1 and 2 creating a left and right
out assign - pan copy gives the option to have output buses 3 / 4 and or buses 5 / 6 follow the same pan
selection. So the inputs that are assigned to busses 1 and 2 will automatically be assigned to the busses that are
being pan copied. This is useful when feeding the same two bus source to multiple cameras.

VFader Cycle

Virtual fader will allow all 10 analog inputs to be mixed right from the
ENG meter screen. The menu knob will become the hardware fader for
those inputs.
Please note when VFader mode is active, the menu knob will need to be
pressed for 1.5 seconds to access the main menu.
VFader options

NONE (OFF)

Input 7 ONLY

Inputs 7, 8

Inputs 7, 8, 9

Inputs 7, 8, 9, 10
35
Mode Menu
Shows which inputs will be active
when the Virtual Fader is activated
