Zaxcom Nomand User Manual page 10

NOMAD LAYOUT

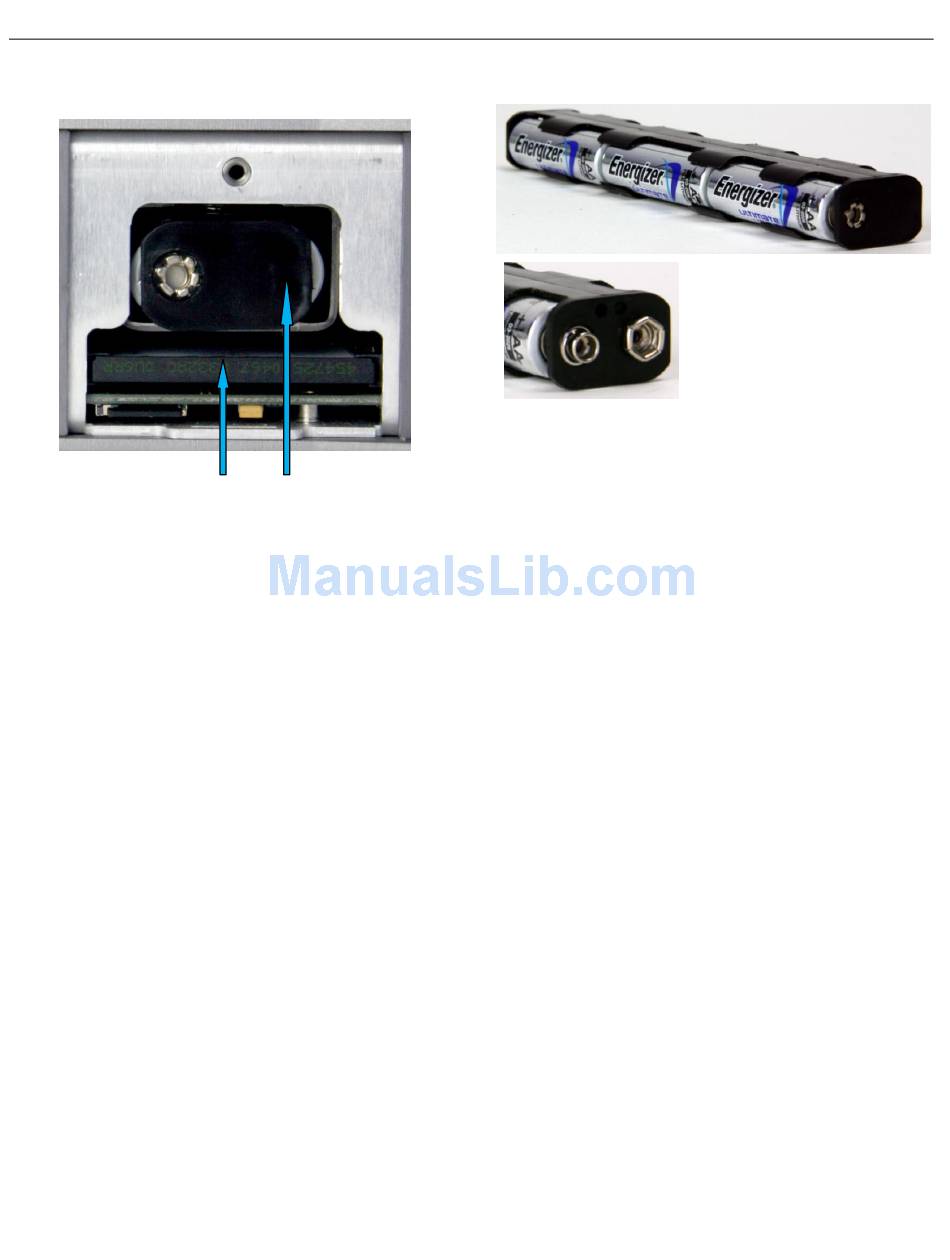

Battery Compartment Area
(behind the door view)
10. Internal Battery Compartment
Insert the battery carrier correctly. If insert with the contacts reversed it will do no harm to the unit, Nomad
just will not turn on.
11. Primary Compact Flash Card Media Slot
11 12
10
Left Side Panel
Always observe the correct
battery polarity. The negative
contact on the battery is
always connected to the spring
contact in the carrier
.
