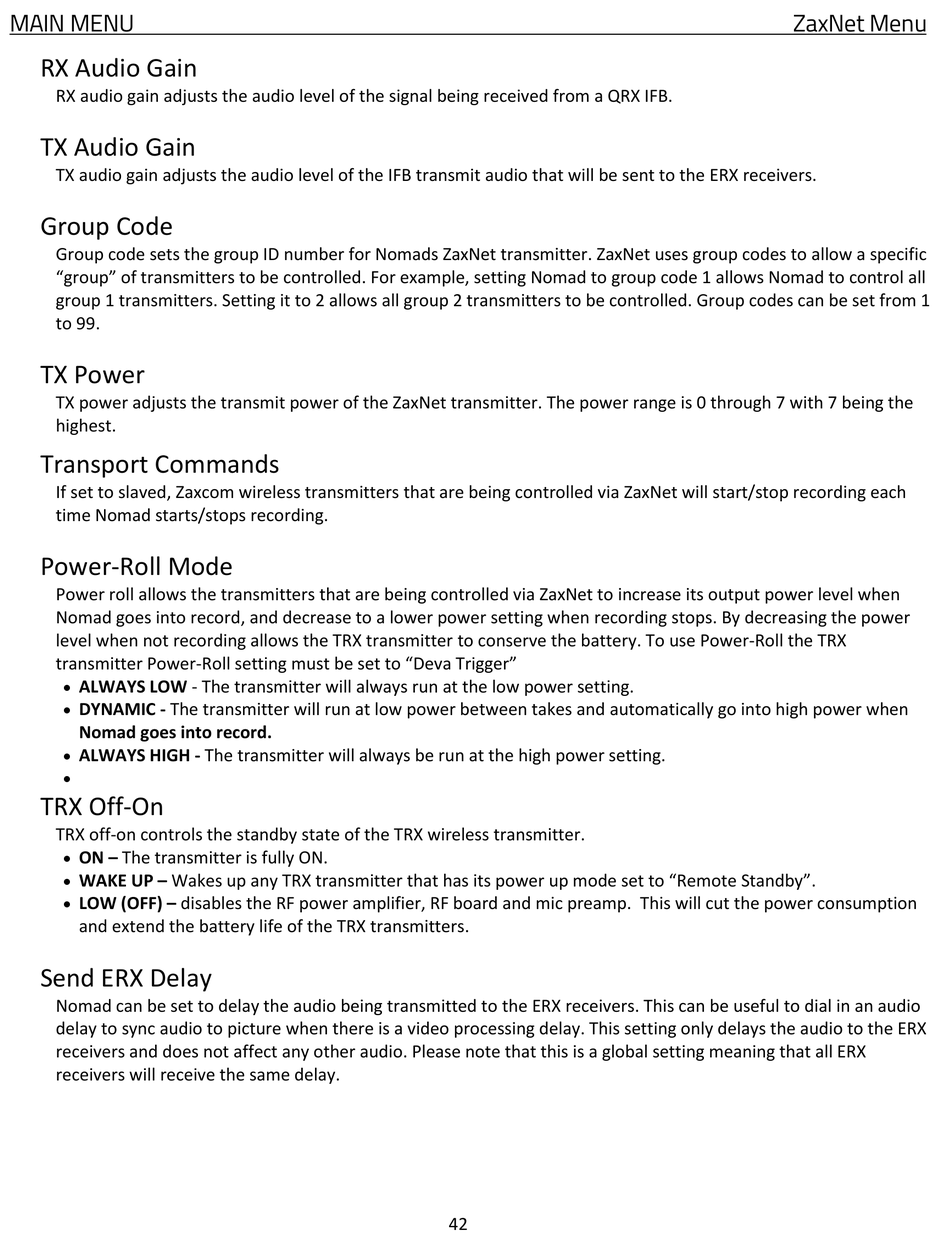

MAIN MENU

RX Audio Gain

RX audio gain adjusts the audio level of the signal being received from a QRX IFB.

TX Audio Gain

TX audio gain adjusts the audio level of the IFB transmit audio that will be sent to the ERX receivers.

Group Code

Group code sets the group ID number for Nomads ZaxNet transmitter. ZaxNet uses group codes to allow a specific
"group" of transmitters to be controlled. For example, setting Nomad to group code 1 allows Nomad to control all
group 1 transmitters. Setting it to 2 allows all group 2 transmitters to be controlled. Group codes can be set from 1
to 99.

TX Power

TX power adjusts the transmit power of the ZaxNet transmitter. The power range is 0 through 7 with 7 being the
highest.

Transport Commands

If set to slaved, Zaxcom wireless transmitters that are being controlled via ZaxNet will start/stop recording each
time Nomad starts/stops recording.

Power-Roll Mode

Power roll allows the transmitters that are being controlled via ZaxNet to increase its output power level when
Nomad goes into record, and decrease to a lower power setting when recording stops. By decreasing the power
level when not recording allows the TRX transmitter to conserve the battery. To use Power-Roll the TRX
transmitter Power-Roll setting must be set to "Deva Trigger"

ALWAYS LOW - The transmitter will always run at the low power setting.

DYNAMIC - The transmitter will run at low power between takes and automatically go into high power when
Nomad goes into record.

ALWAYS HIGH - The transmitter will always be run at the high power setting.


TRX Off-On

TRX off-on controls the standby state of the TRX wireless transmitter.

ON – The transmitter is fully ON.

WAKE UP – Wakes up any TRX transmitter that has its power up mode set to "Remote Standby".

LOW (OFF) – disables the RF power amplifier, RF board and mic preamp. This will cut the power consumption
and extend the battery life of the TRX transmitters.

Send ERX Delay

Nomad can be set to delay the audio being transmitted to the ERX receivers. This can be useful to dial in an audio
delay to sync audio to picture when there is a video processing delay. This setting only delays the audio to the ERX
receivers and does not affect any other audio. Please note that this is a global setting meaning that all ERX
receivers will receive the same delay.
42
ZaxNet Menu
