MAIN MENU

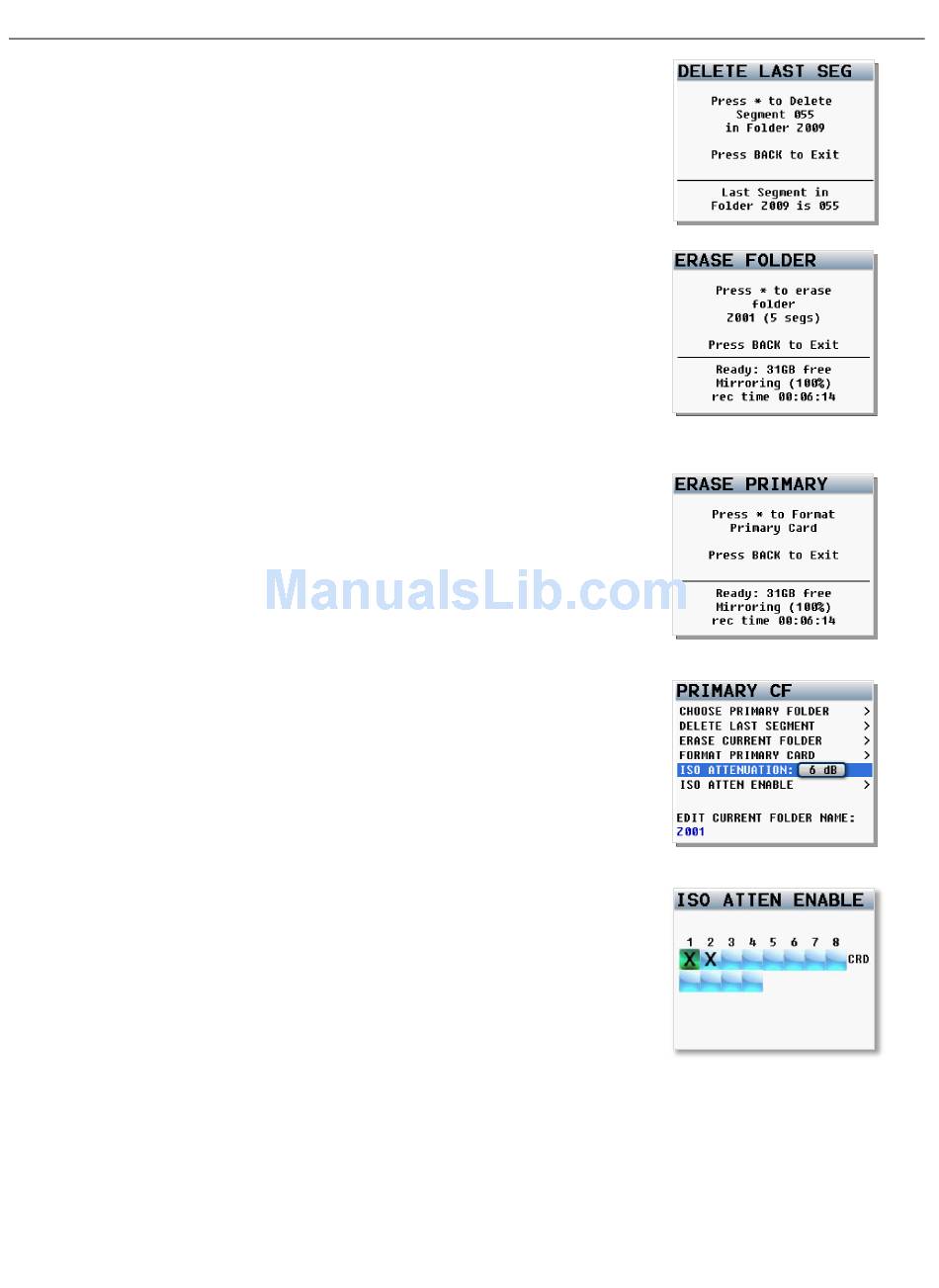

Delete Last Primary Segment

Delete last segment will delete the last recorded segment.
To delete the segment press the star key.

Erase Current Primary Folder

Erase current folder deletes the entire folder from the compact flash
card.
WARNING: If a folder has been mirrored, remove the mirror card before
erasing. If not, the folder will be erased from both the primary and
mirror card.

Format Primary Card

This is where the primary CF card is formatted. This process will take about
4 minutes to complete.

ISO Attenuation

The NeverClip™ inputs allow large signals to travel through the digital
mixing engine using 32 bit floating point numbers. Once these large signals
are recorded into a 24-bit WAV (or MARF) file, the advantage of floating
point math is lost and these signals can clip if not using a card limiter.
ISO Attenuation allows the ISO record tracks to be attenuated by a user
selectable amount of 6, 12, 18 or 24 dB. This allows audio to be recorded
unclipped even if its dynamic range would normally be too large. This gain
reduction is stored in the metadata of the WAV file so post production can
restore the amplitude of the ISO tracks when necessary.

ISO Attenuation Enable

The ISO attenuation matrix allows which card record tracks will be attenuate
when the ISO attenuation has been enabled.
24
