MAIN MENU

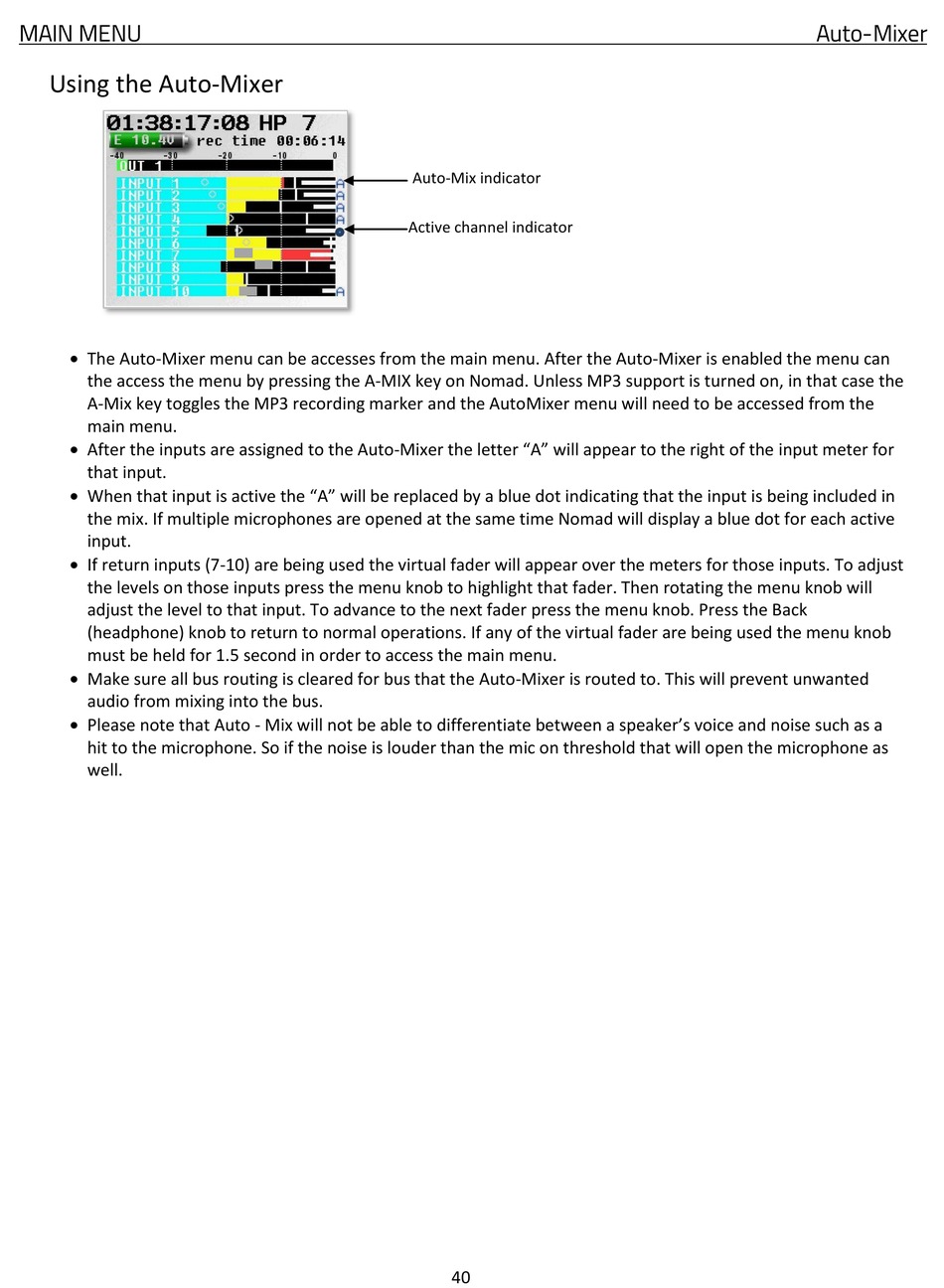

Using the Auto-Mixer

 The Auto-Mixer menu can be accesses from the main menu. After the Auto-Mixer is enabled the menu can
the access the menu by pressing the A-MIX key on Nomad. Unless MP3 support is turned on, in that case the
A-Mix key toggles the MP3 recording marker and the AutoMixer menu will need to be accessed from the
main menu.
 After the inputs are assigned to the Auto-Mixer the letter "A" will appear to the right of the input meter for
that input.
 When that input is active the "A" will be replaced by a blue dot indicating that the input is being included in
the mix. If multiple microphones are opened at the same time Nomad will display a blue dot for each active
input.
 If return inputs (7-10) are being used the virtual fader will appear over the meters for those inputs. To adjust
the levels on those inputs press the menu knob to highlight that fader. Then rotating the menu knob will
adjust the level to that input. To advance to the next fader press the menu knob. Press the Back
(headphone) knob to return to normal operations. If any of the virtual fader are being used the menu knob
must be held for 1.5 second in order to access the main menu.
 Make sure all bus routing is cleared for bus that the Auto-Mixer is routed to. This will prevent unwanted
audio from mixing into the bus.
 Please note that Auto - Mix will not be able to differentiate between a speaker's voice and noise such as a
hit to the microphone. So if the noise is louder than the mic on threshold that will open the microphone as
well.
Auto-Mix indicator
Active channel indicator
40
Auto-Mixer
