MAXX LAYOUT

Home Screen Explained

Transport Status

Headphone Selection

Battery
Indicator
ENG Panning shortcut
Matrix
Input/Virtual Fader
Meter
Transport Status
Shows the mode of recorder RECORD,

Time Code

Shows the current time code
Headphone Selection
Displays which headphone matrix is being monitored. You can custom name your headphone set up - see
headphone naming in the ENG menu.
If the PFL key is pressed, the name in the Headphone Monitor field is replaced with "PFL" alternating
•
with the selected channel number(s) as follows:
• Press the PFL key corresponding to input to select a channel to PFL. If you want to listen to multiple
channels at the same time, just press and hold an additional PFL key for approximately 1 second to add
that channel to the PFL circuit.
• Press the headphone knob to restore normal headphone monitoring.

Battery Indicator

Displays the power source (I - Internal / E - External), a numeric display of the current voltage. Maxx will
always automatically switch to the higher voltage source first.

Save Indicator

A moving pixel on bottom of screen moving right to left indicates that the Maxx is saving a parameter
setting to its memory. If you power down while the pixel is moving the settings will not be saved

Card Information Field

Top Line - Mirror Free Space
Second Line - Mirror File Progress
Third Line -Time left on the Primary Folder
PLAY or STOP.
.
Shows what is
being listened to
in PFL mode
14

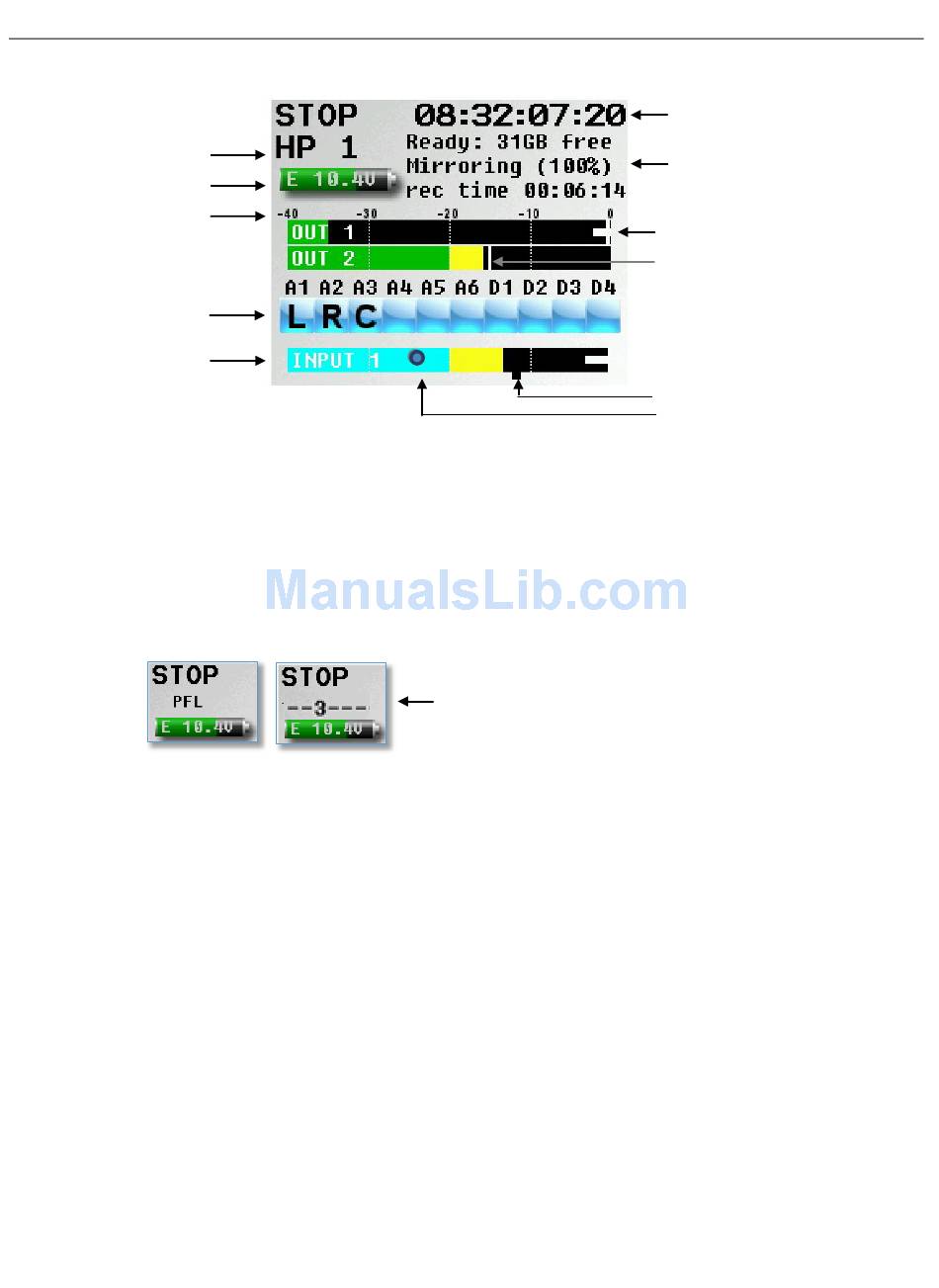

Meter Screen Explained
Time code
Card information field
Limiter reduction indicators
Peak Hold Indicator
Trim Level Indicator
Save Indicator
.
