MAIN MENU

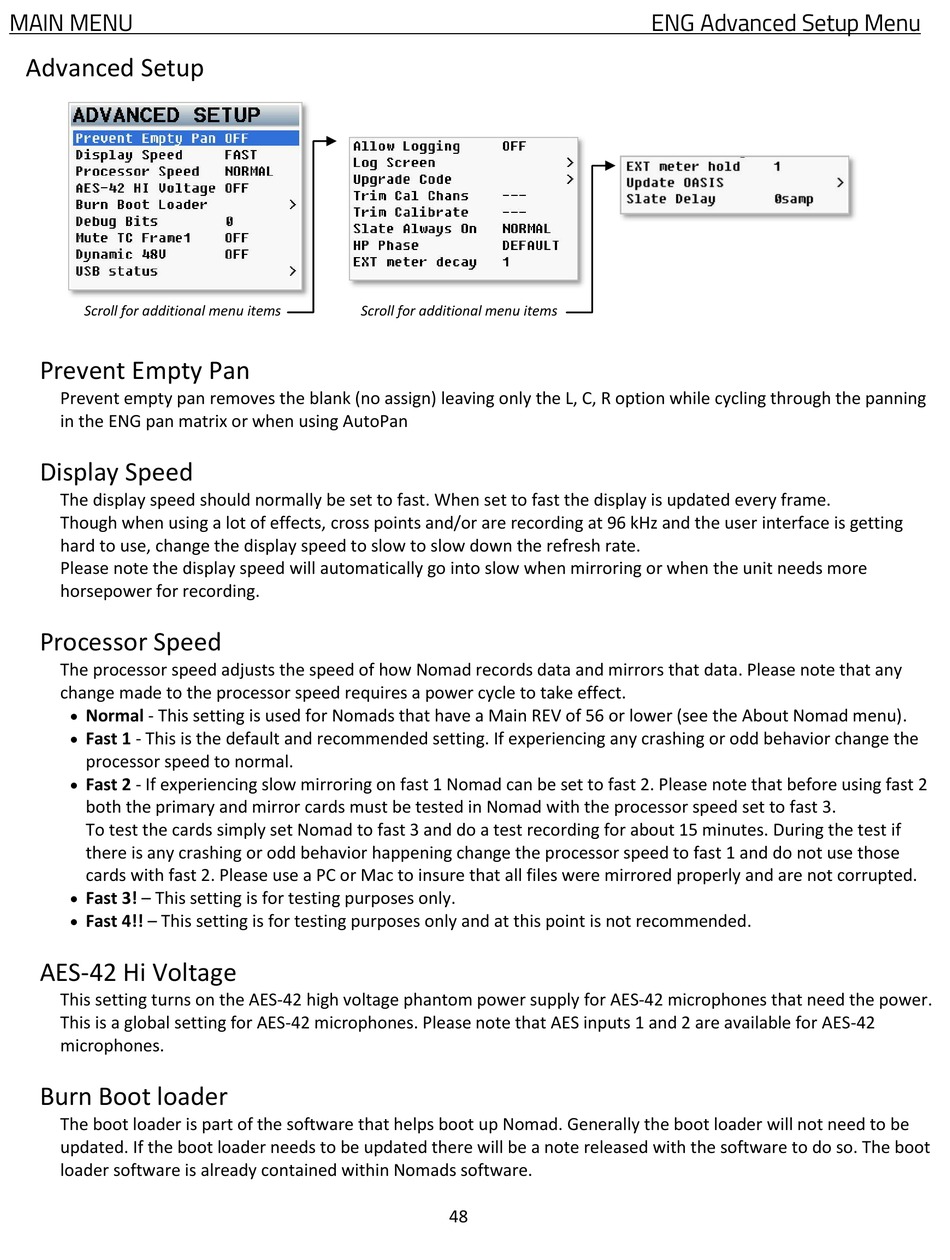

Advanced Setup

Scroll for additional menu items

Prevent Empty Pan

Prevent empty pan removes the blank (no assign) leaving only the L, C, R option while cycling through the panning
in the ENG pan matrix or when using AutoPan

Display Speed

The display speed should normally be set to fast. When set to fast the display is updated every frame.
Though when using a lot of effects, cross points and/or are recording at 96 kHz and the user interface is getting
hard to use, change the display speed to slow to slow down the refresh rate.
Please note the display speed will automatically go into slow when mirroring or when the unit needs more
horsepower for recording.

Processor Speed

The processor speed adjusts the speed of how Nomad records data and mirrors that data. Please note that any
change made to the processor speed requires a power cycle to take effect.

Normal - This setting is used for Nomads that have a Main REV of 56 or lower (see the About Nomad menu).

Fast 1 - This is the default and recommended setting. If experiencing any crashing or odd behavior change the
processor speed to normal.

Fast 2 - If experiencing slow mirroring on fast 1 Nomad can be set to fast 2. Please note that before using fast 2
both the primary and mirror cards must be tested in Nomad with the processor speed set to fast 3.
To test the cards simply set Nomad to fast 3 and do a test recording for about 15 minutes. During the test if
there is any crashing or odd behavior happening change the processor speed to fast 1 and do not use those
cards with fast 2. Please use a PC or Mac to insure that all files were mirrored properly and are not corrupted.

Fast 3! – This setting is for testing purposes only.

Fast 4!! – This setting is for testing purposes only and at this point is not recommended.

AES-42 Hi Voltage

This setting turns on the AES-42 high voltage phantom power supply for AES-42 microphones that need the power.
This is a global setting for AES-42 microphones. Please note that AES inputs 1 and 2 are available for AES-42
microphones.

Burn Boot loader

The boot loader is part of the software that helps boot up Nomad. Generally the boot loader will not need to be
updated. If the boot loader needs to be updated there will be a note released with the software to do so. The boot
loader software is already contained within Nomads software.
Scroll for additional menu items
48
ENG Advanced Setup Menu
