NOMAD OPERATIONS

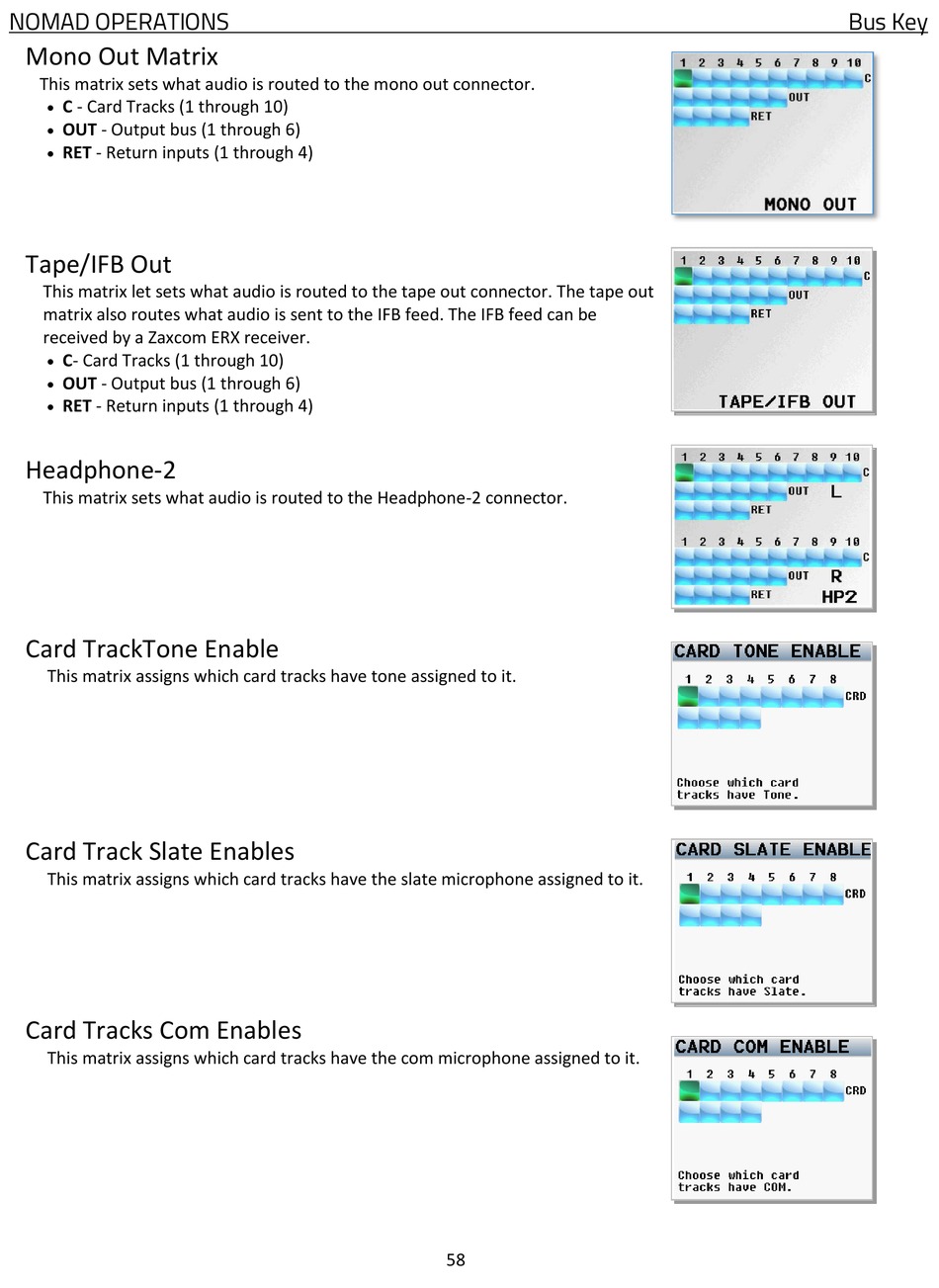

Mono Out Matrix

This matrix sets what audio is routed to the mono out connector.

C - Card Tracks (1 through 10)

OUT - Output bus (1 through 6)

RET - Return inputs (1 through 4)

Tape/IFB Out

This matrix let sets what audio is routed to the tape out connector. The tape out
matrix also routes what audio is sent to the IFB feed. The IFB feed can be
received by a Zaxcom ERX receiver.

C- Card Tracks (1 through 10)

OUT - Output bus (1 through 6)

RET - Return inputs (1 through 4)
Headphone-2
This matrix sets what audio is routed to the Headphone-2 connector.

Card TrackTone Enable

This matrix assigns which card tracks have tone assigned to it.

Card Track Slate Enables

This matrix assigns which card tracks have the slate microphone assigned to it.

Card Tracks Com Enables

This matrix assigns which card tracks have the com microphone assigned to it.
58
