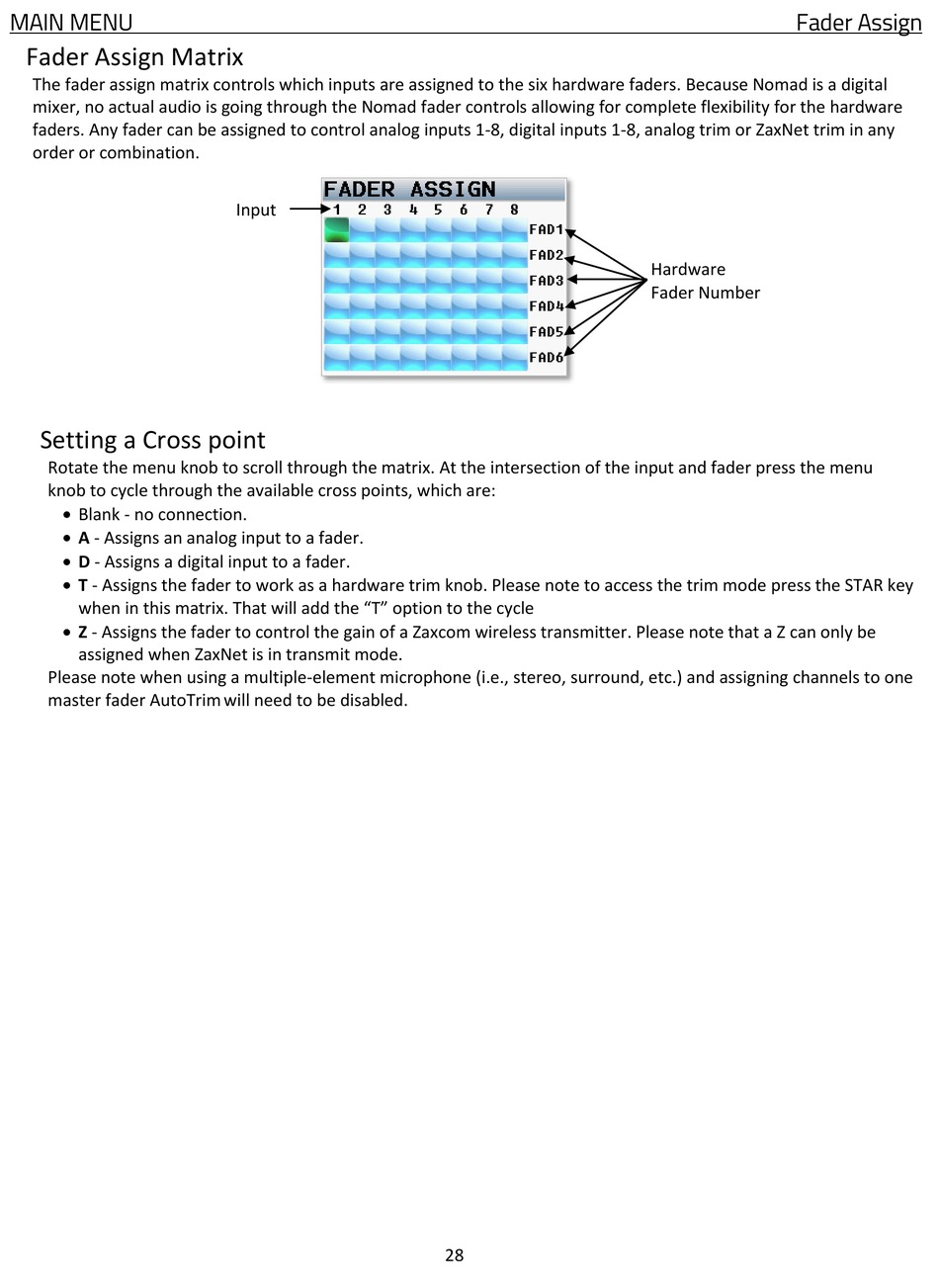

Fader Assign Matrix

The fader assign matrix controls which inputs are assigned to the six hardware faders. Because Nomad is a digital
mixer, no actual audio is going through the Nomad fader controls allowing for complete flexibility for the hardware
faders. Any fader can be assigned to control analog inputs 1-8, digital inputs 1-8, analog trim or ZaxNet trim in any
order or combination.

Setting a Cross point

Rotate the menu knob to scroll through the matrix. At the intersection of the input and fader press the menu
knob to cycle through the available cross points, which are:
 Blank - no connection.
 A - Assigns an analog input to a fader.
 D - Assigns a digital input to a fader.
 T - Assigns the fader to work as a hardware trim knob. Please note to access the trim mode press the STAR key
when in this matrix. That will add the "T" option to the cycle
 Z - Assigns the fader to control the gain of a Zaxcom wireless transmitter. Please note that a Z can only be
assigned when ZaxNet is in transmit mode.
Please note when using a multiple-element microphone (i.e., stereo, surround, etc.) and assigning channels to one
master fader AutoTrim will need to be disabled.
