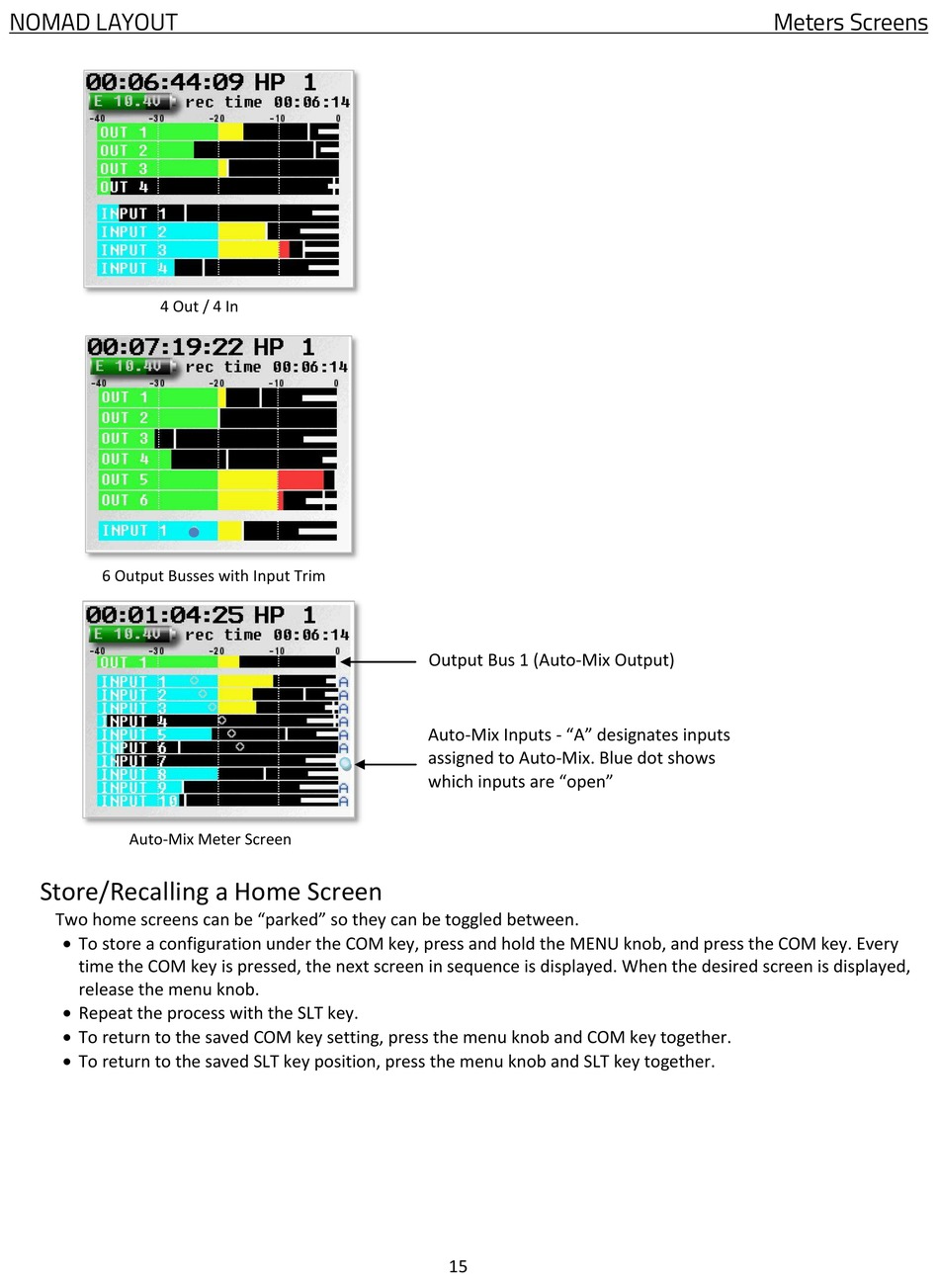

NOMAD LAYOUT
4 Out / 4 In
6 Output Busses with Input Trim
Auto-Mix Meter Screen

Store/Recalling a Home Screen

Two home screens can be "parked" so they can be toggled between.
 To store a configuration under the COM key, press and hold the MENU knob, and press the COM key. Every
time the COM key is pressed, the next screen in sequence is displayed. When the desired screen is displayed,
release the menu knob.
 Repeat the process with the SLT key.
 To return to the saved COM key setting, press the menu knob and COM key together.
 To return to the saved SLT key position, press the menu knob and SLT key together.
Output Bus 1 (Auto-Mix Output)
Auto-Mix Inputs - "A" designates inputs
assigned to Auto-Mix. Blue dot shows
which inputs are "open"
15
Meters Screens
