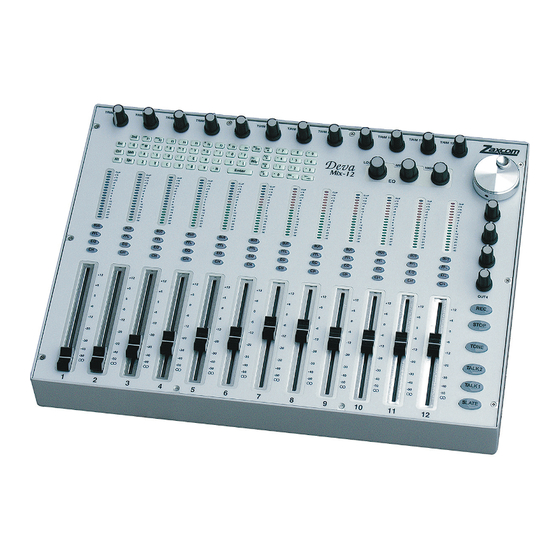

Zaxcom DEVA Mix-12 Owner's Manual

Digital mixing console
Hide thumbs Also See for DEVA Mix-12:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
Rev: 12.002
March 2007
230 West Parkway, Unit 9, Pompton Plains, NJ 07444 USA
Tel: 973.835.5000 Fax: 973.835.6633
Owner's Manual
Deva Mix-12
Digital Mixing Console

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DEVA Mix-12 and is the answer not in the manual?

Questions and answers

Related Manuals for Zaxcom DEVA Mix-12

Summary of Contents for Zaxcom DEVA Mix-12

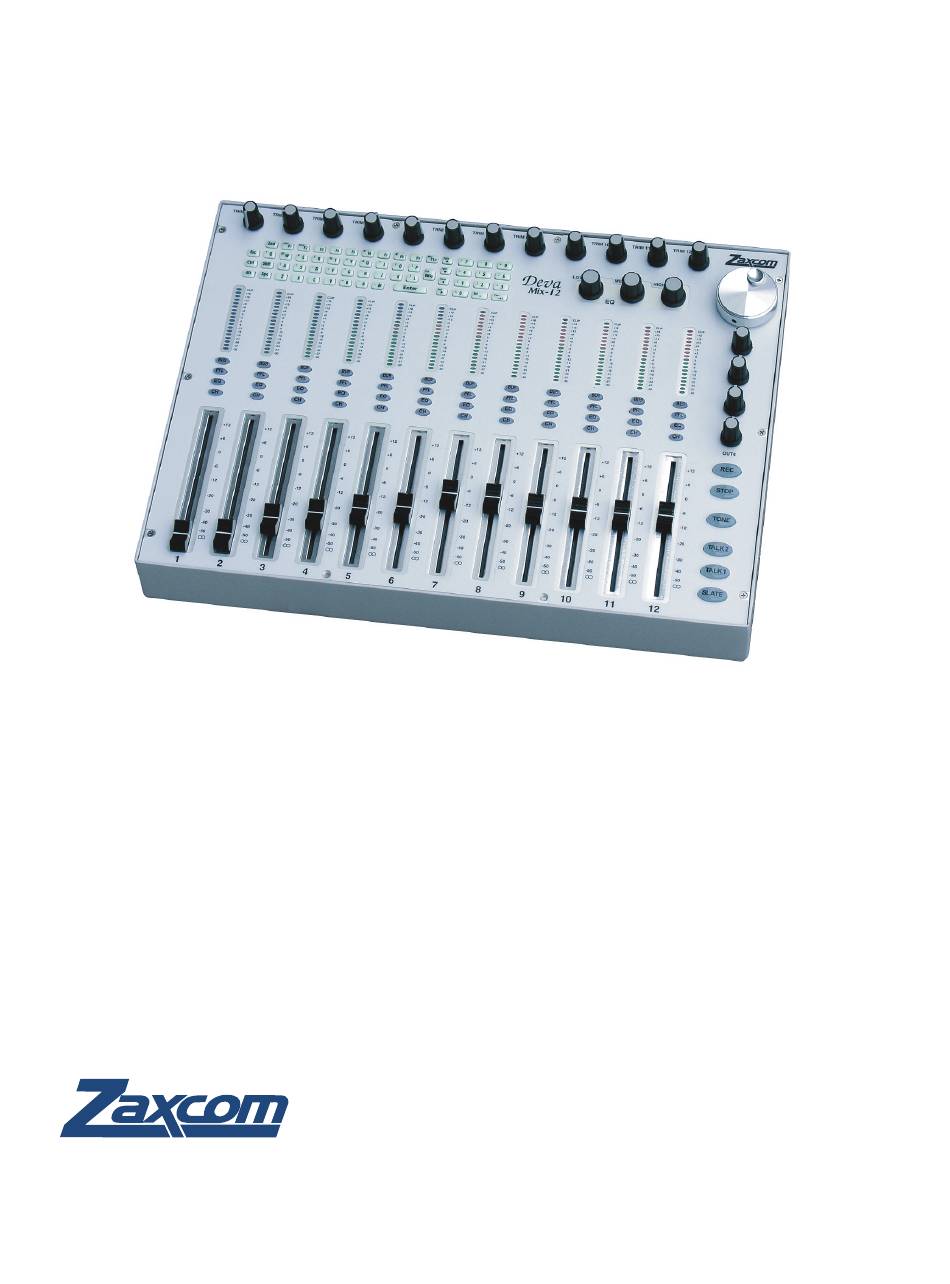

  • Page 1 Owner’s Manual Deva Mix-12 Digital Mixing Console Rev: 12.002 March 2007 230 West Parkway, Unit 9, Pompton Plains, NJ 07444 USA Tel: 973.835.5000 Fax: 973.835.6633...
  • Page 2 Change History 2006-10-30 ❑ First re vision. 2007-03-05 (12.002) ❑ Updated to refl ect currently shipping firmware.

  • Page 3: Table Of Contents

    Zaxcom Warranty Policy and Limitations ........
  • Page 4 Deva Mix-12 Owner’s Manual Table of Contents...

  • Page 5: What S In The Box

    ❏ Owner’ s Manual Introduction The Zaxcom Deva Mix-12 is a control surface for the embedded digital audio mixer of either the Deva IV or Deva V location recorders. The Mix-12 is fully digital, only the microphone pre-amps, A-D and D-A converters are used for analog connections to the outside world.

  • Page 6: Getting To Know Your Deva Mix-12

    Chapter 1 Deva MIX-12 Owner’s Manual Getting to Know your Deva Mix-12 Figure 1-1 Deva Mix-12 Top View Channel Trims QWERTY Keypad Equalization (low, mid, high) Jog wheel Output Level Adjustments Record Stop Tone Talk 2 10. Talk 1 11. Slate...
  • Page 7 Deva MIX-12 Owner’s Manual Chapter 1 Figure 1-1 Deva Mix-12 Back View 13. RS-422 Ports 1 and 2; labeled COM 1 and COM 2 14. 12VDC 4-pin XLR connector 15. Power on/off rocker switch...
  • Page 8 Chapter 1 Deva MIX-12 Owner’s Manual...

  • Page 9: Installation

    Installation Before the Mix-12 can operate with the Deva, you must install the proper firmware on your Deva. This firmware is supplied by Zaxcom when you purchase the Mix-12. Typical Setup Sequence Connect the RS-422 cable from the Deva Serial connector to the Com1 connector on the Mix-12 using Com 1.

  • Page 10: Faders

    Chapter 2 Deva MIX-12 Owner’s Manual Faders The channels the faders are assigned to are permanently assigned and cannot be changed. They are assigned as follows: Fader Channel Fader Channel Analog Input 1 Digital Input 1 Analog Input 2 Digital Input 2...

  • Page 11: Channel Trims

    Deva MIX-12 Owner’s Manual Chapter 2 Channel Trims Each channel has a separate channel trim. Each channel can be attenuated or amplified using the trim. The limit of the attenuation and gain is limited by the Deva itself. The input signal can be attenuated by up to -20 dB and amplified up to +30 dB.

  • Page 12: Channel Button Shortcuts

    Chapter 2 Deva MIX-12 Owner’s Manual Channel Button Shortcuts ❏ EQ menu - When in the EQ menu, pressing CH changes the which of the five filters is being controlled by the jog wheel. Pressing CH moves the control knob to the next filter.

  • Page 13: Talk1, Talk2 And Slate

    Deva MIX-12 Owner’s Manual Chapter 2 TALK1, TALK2 and SLATE To route the Talk keys press BUS on the fader associated with the output bus number to route. For example, press BUS twice on fader 3 to route the Talk keys to MIX bus or output bus 3. The menu displays a Xpoint selection for the Slate and Talk keys.

  • Page 14: Keyboard

    Chapter 2 Deva MIX-12 Owner’s Manual Keyboard A built-in Qwerty keyboard on the Mix-12 is used to enter metadata. The function keys F1 though F6 are a identical to those keys on the front panel of the Deva. Additional keyboard functions Many of the keyboards functions are the same as the External USB keyboard.

  • Page 15: Deva Eq

    Channels 1 and 2 Channels 1 and 2 on the Deva have equalization and compression enabled. All other channels require the Mix-12 or can be added. Contact Zaxcom for details on enabling additional channels on the Deva. EQ buttons Pressing EQ enables or disables the EQ on the channel.

  • Page 16: Using A Usb Keyboard

    Chapter 3 Deva MIX-12 Owner’s Manual Using a USB Keyboard A standard USB keyboard can be used to help get to the EQ and compression screen without the Mix-12. The following are keys that enable quick access to the EQ and compression screen.

  • Page 17: Using The Deva Keypad

    Deva MIX-12 Owner’s Manual Chapter 3 Using the Deva Keypad When in the EQ screen, the Deva keypad may also be used to enter EQ values. To use the keypad, set the entry mode button to the parameter that you want to change, then enter the value.
  • Page 18 Chapter 3 Deva MIX-12 Owner’s Manual...

  • Page 19: Zaxcom Warranty Policy And Limitations

    Zaxcom web site www.zaxcom.com. Please fill out the form and return it with the product for repair. Zaxcom will return the warranty repair via 2nd day UPS or FedEx at their discretion. If over- night service is required a FedEx or UPS account number must be provided to Zaxcom to cover the shipping expenses.
  • Page 20 Your exclusive remedy for any defective Product is limited to the repair or replacement of the defective Product. Zaxcom may elect which remedy or combination of remedies to provide in its sole discretion. Zax- com shall have a reasonable time after determining that a defective Product exists to repair or replace a defective Product.
