NOMAD OPERATIONS

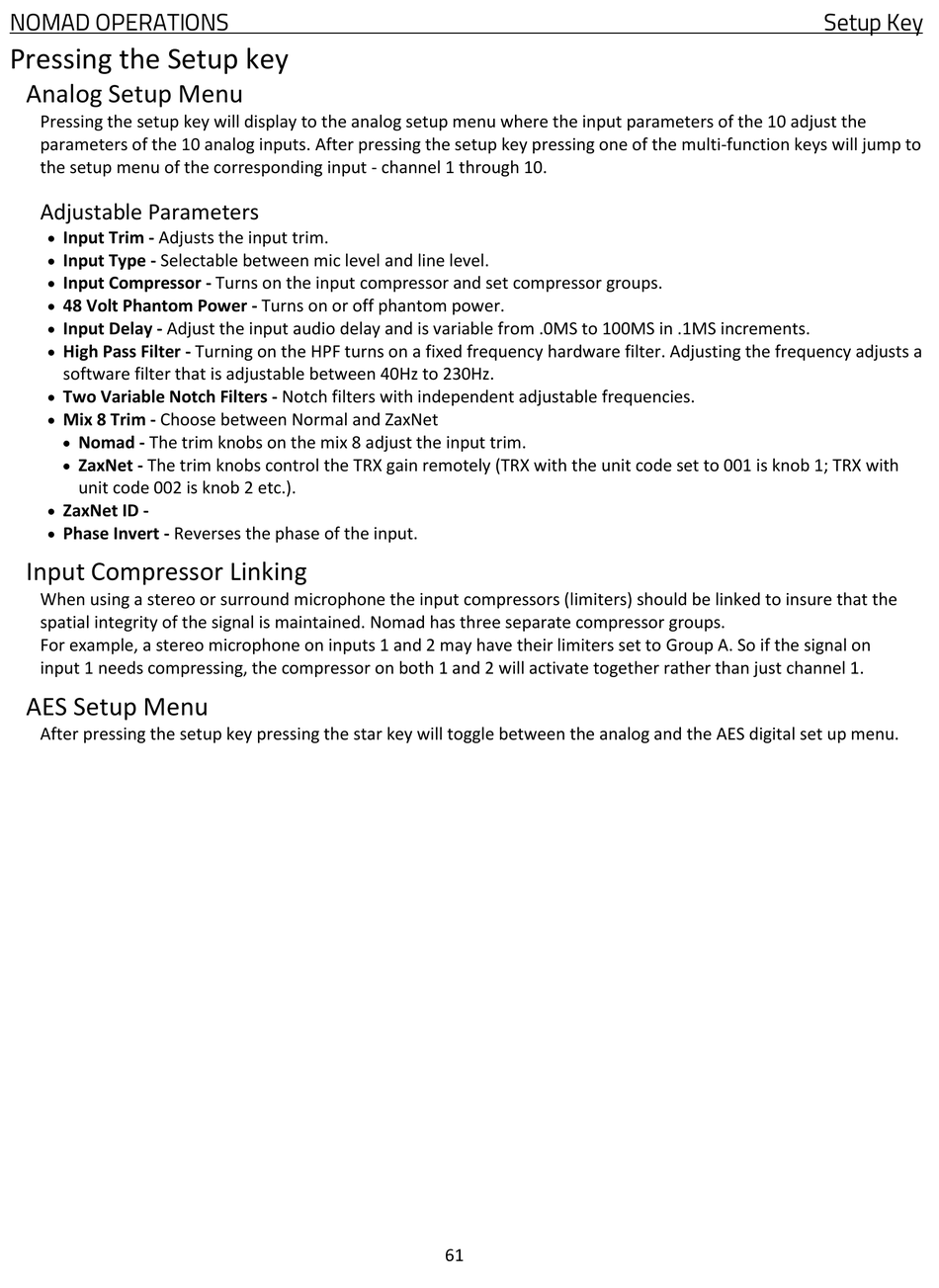

Pressing the Setup key

Analog Setup Menu

Pressing the setup key will display to the analog setup menu where the input parameters of the 10 adjust the
parameters of the 10 analog inputs. After pressing the setup key pressing one of the multi-function keys will jump to
the setup menu of the corresponding input - channel 1 through 10.
Adjustable Parameters

Input Trim - Adjusts the input trim.

Input Type - Selectable between mic level and line level.

Input Compressor - Turns on the input compressor and set compressor groups.

48 Volt Phantom Power - Turns on or off phantom power.

Input Delay - Adjust the input audio delay and is variable from .0MS to 100MS in .1MS increments.

High Pass Filter - Turning on the HPF turns on a fixed frequency hardware filter. Adjusting the frequency adjusts a
software filter that is adjustable between 40Hz to 230Hz.

Two Variable Notch Filters - Notch filters with independent adjustable frequencies.

Mix 8 Trim - Choose between Normal and ZaxNet

Nomad - The trim knobs on the mix 8 adjust the input trim.

ZaxNet - The trim knobs control the TRX gain remotely (TRX with the unit code set to 001 is knob 1; TRX with
unit code 002 is knob 2 etc.).

ZaxNet ID -

Phase Invert - Reverses the phase of the input.

Input Compressor Linking

When using a stereo or surround microphone the input compressors (limiters) should be linked to insure that the
spatial integrity of the signal is maintained. Nomad has three separate compressor groups.
For example, a stereo microphone on inputs 1 and 2 may have their limiters set to Group A. So if the signal on
input 1 needs compressing, the compressor on both 1 and 2 will activate together rather than just channel 1.

AES Setup Menu

After pressing the setup key pressing the star key will toggle between the analog and the AES digital set up menu.
61
Setup Key
