NOMAD OPERATIONS
Nomad 10 and 12 Only

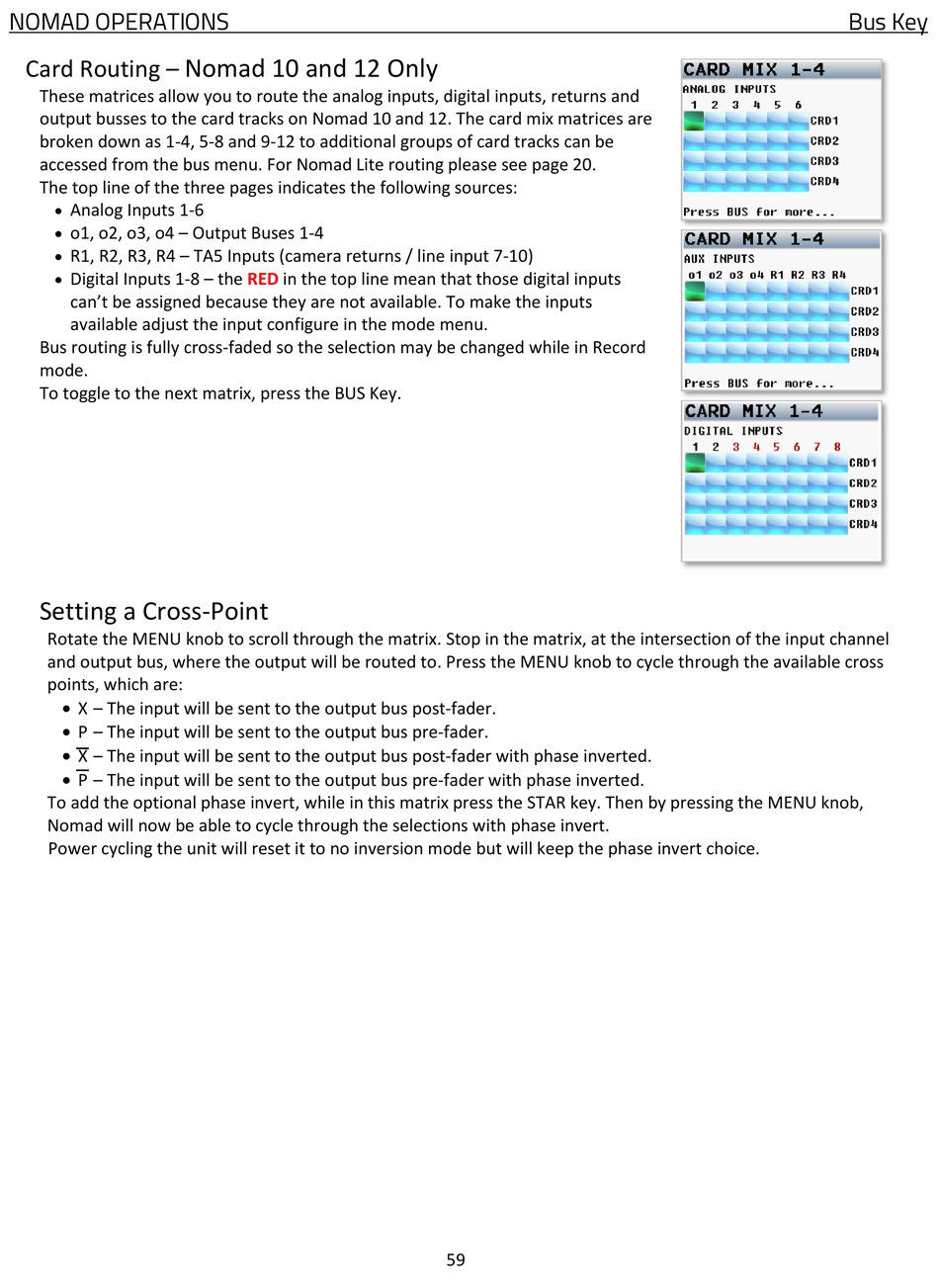

Card Routing –
These matrices allow you to route the analog inputs, digital inputs, returns and
output busses to the card tracks on Nomad 10 and 12. The card mix matrices are
broken down as 1-4, 5-8 and 9-12 to additional groups of card tracks can be
accessed from the bus menu. For Nomad Lite routing please see page 20.
The top line of the three pages indicates the following sources:

Analog Inputs 1-6

o1, o2, o3, o4 – Output Buses 1-4

R1, R2, R3, R4 – TA5 Inputs (camera returns / line input 7-10)

Digital Inputs 1-8 – the
can't be assigned because they are not available. To make the inputs
available adjust the input configure in the mode menu.
Bus routing is fully cross-faded so the selection may be changed while in Record
mode.
To toggle to the next matrix, press the BUS Key.

Setting a Cross-Point

Rotate the MENU knob to scroll through the matrix. Stop in the matrix, at the intersection of the input channel
and output bus, where the output will be routed to. Press the MENU knob to cycle through the available cross
points, which are:
 X – The input will be sent to the output bus post-fader.
 P – The input will be sent to the output bus pre-fader.
 X – The input will be sent to the output bus post-fader with phase inverted.
 P – The input will be sent to the output bus pre-fader with phase inverted.
To add the optional phase invert, while in this matrix press the STAR key. Then by pressing the MENU knob,
Nomad will now be able to cycle through the selections with phase invert.
Power cycling the unit will reset it to no inversion mode but will keep the phase invert choice.
