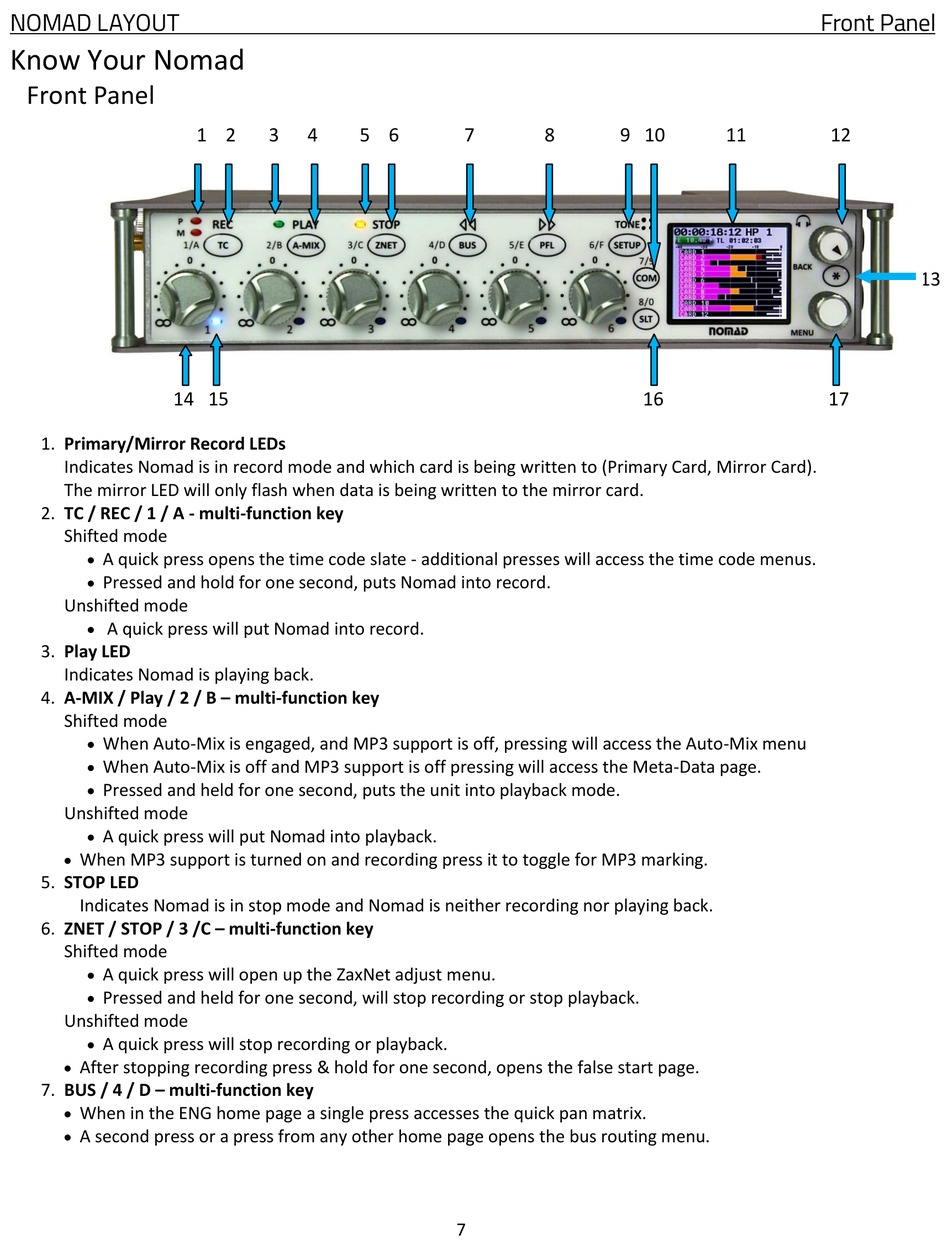

NOMAD LAYOUT

Know Your Nomad

Front Panel

14 15
1. Primary/Mirror Record LEDs
Indicates Nomad is in record mode and which card is being written to (Primary Card, Mirror Card).
The mirror LED will only flash when data is being written to the mirror card.
2. TC / REC / 1 / A - multi-function key
Shifted mode

A quick press opens the time code slate - additional presses will access the time code menus.

Pressed and hold for one second, puts Nomad into record.
Unshifted mode

A quick press will put Nomad into record.
3. Play LED
Indicates Nomad is playing back.
4. A-MIX / Play / 2 / B – multi-function key
Shifted mode

When Auto-Mix is engaged, and MP3 support is off, pressing will access the Auto-Mix menu

When Auto-Mix is off and MP3 support is off pressing will access the Meta-Data page.

Pressed and held for one second, puts the unit into playback mode.
Unshifted mode

A quick press will put Nomad into playback.

When MP3 support is turned on and recording press it to toggle for MP3 marking.
5. STOP LED
Indicates Nomad is in stop mode and Nomad is neither recording nor playing back.
6. ZNET / STOP / 3 /C – multi-function key
Shifted mode

A quick press will open up the ZaxNet adjust menu.

Pressed and held for one second, will stop recording or stop playback.
Unshifted mode

A quick press will stop recording or playback.

After stopping recording press & hold for one second, opens the false start page.
7. BUS / 4 / D – multi-function key

When in the ENG home page a single press accesses the quick pan matrix.

A second press or a press from any other home page opens the bus routing menu.
