NOMAD OPERATIONS

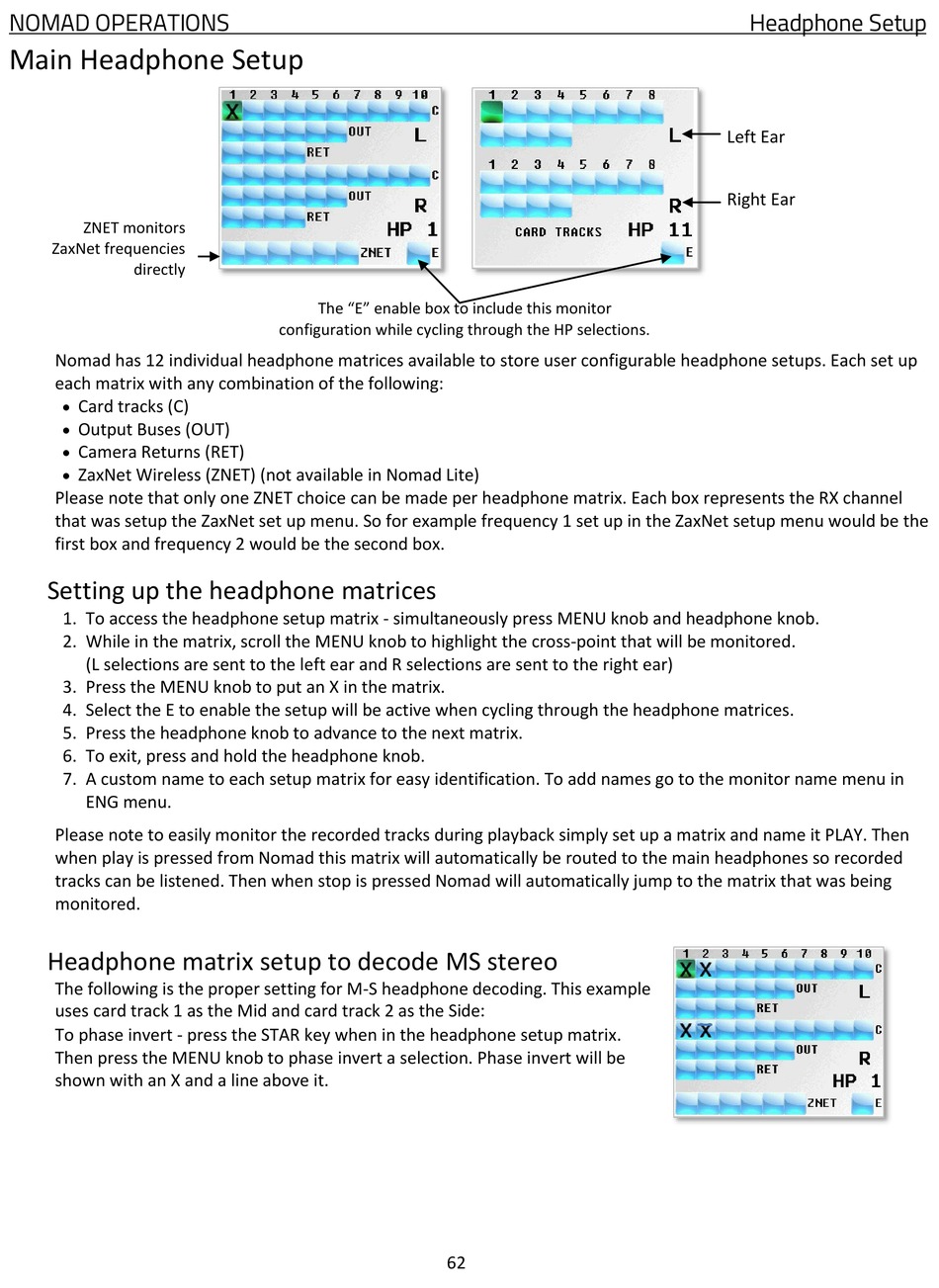

Main Headphone Setup

ZNET monitors
ZaxNet frequencies
directly
Nomad has 12 individual headphone matrices available to store user configurable headphone setups. Each set up
each matrix with any combination of the following:

Card tracks (C)

Output Buses (OUT)

Camera Returns (RET)

ZaxNet Wireless (ZNET) (not available in Nomad Lite)
Please note that only one ZNET choice can be made per headphone matrix. Each box represents the RX channel
that was setup the ZaxNet set up menu. So for example frequency 1 set up in the ZaxNet setup menu would be the
first box and frequency 2 would be the second box.

Setting up the headphone matrices

1. To access the headphone setup matrix - simultaneously press MENU knob and headphone knob.
2. While in the matrix, scroll the MENU knob to highlight the cross-point that will be monitored.
(L selections are sent to the left ear and R selections are sent to the right ear)
3. Press the MENU knob to put an X in the matrix.
4. Select the E to enable the setup will be active when cycling through the headphone matrices.
5. Press the headphone knob to advance to the next matrix.
6. To exit, press and hold the headphone knob.
7. A custom name to each setup matrix for easy identification. To add names go to the monitor name menu in
ENG menu.
Please note to easily monitor the recorded tracks during playback simply set up a matrix and name it PLAY. Then
when play is pressed from Nomad this matrix will automatically be routed to the main headphones so recorded
tracks can be listened. Then when stop is pressed Nomad will automatically jump to the matrix that was being
monitored.

Headphone matrix setup to decode MS stereo

The following is the proper setting for M-S headphone decoding. This example
uses card track 1 as the Mid and card track 2 as the Side:
To phase invert - press the STAR key when in the headphone setup matrix.
Then press the MENU knob to phase invert a selection. Phase invert will be
shown with an X and a line above it.
The "E" enable box to include this monitor
configuration while cycling through the HP selections.
62
Headphone Setup
Left Ear
Right Ear
