NOMAD OPERATIONS

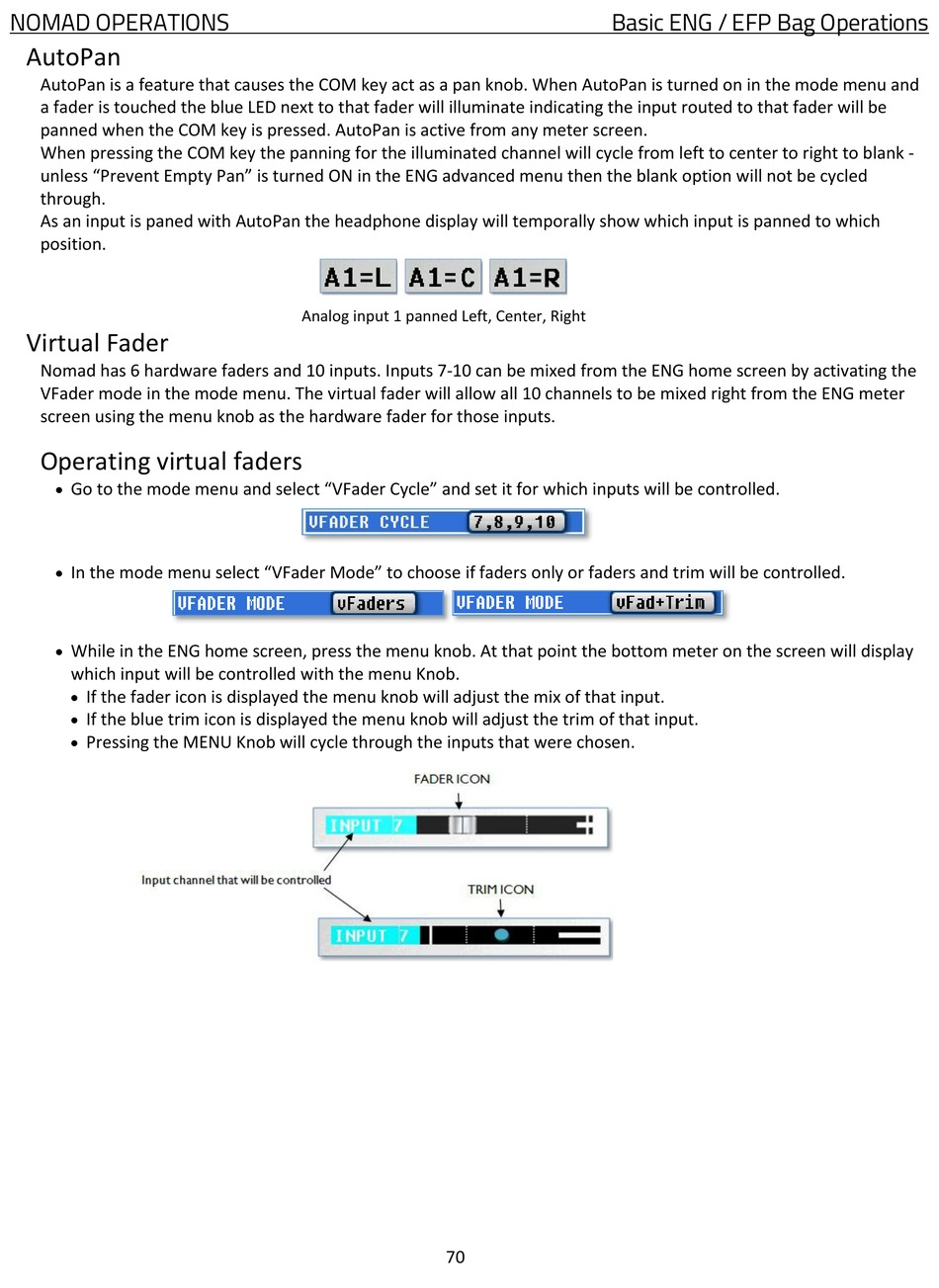

AutoPan

AutoPan is a feature that causes the COM key act as a pan knob. When AutoPan is turned on in the mode menu and
a fader is touched the blue LED next to that fader will illuminate indicating the input routed to that fader will be
panned when the COM key is pressed. AutoPan is active from any meter screen.
When pressing the COM key the panning for the illuminated channel will cycle from left to center to right to blank -
unless "Prevent Empty Pan" is turned ON in the ENG advanced menu then the blank option will not be cycled
through.
As an input is paned with AutoPan the headphone display will temporally show which input is panned to which
position.

Virtual Fader

Nomad has 6 hardware faders and 10 inputs. Inputs 7-10 can be mixed from the ENG home screen by activating the
VFader mode in the mode menu. The virtual fader will allow all 10 channels to be mixed right from the ENG meter
screen using the menu knob as the hardware fader for those inputs.

Operating virtual faders


Go to the mode menu and select "VFader Cycle" and set it for which inputs will be controlled.

In the mode menu select "VFader Mode" to choose if faders only or faders and trim will be controlled.

While in the ENG home screen, press the menu knob. At that point the bottom meter on the screen will display
which input will be controlled with the menu Knob.

If the fader icon is displayed the menu knob will adjust the mix of that input.

If the blue trim icon is displayed the menu knob will adjust the trim of that input.

Pressing the MENU Knob will cycle through the inputs that were chosen.
Analog input 1 panned Left, Center, Right
