Home Screen Explained

Headphone Selection

ENG Panning shortcut Matrix

Transport Status

Displays the current mode RECORD,

Timecode

Displays the current time code. The time code setup menu will determine if this will display the time code generator
or the time code from the card playback.
Headphone Selection
Displays which headphone selection you are monitoring.
• Once the PFL key is pressed, the name in the Headphone Monitor field is replaced with PFL alternating with the
selected channel number(s) as follows:
• Press the corresponding PFL key to select a channel to listen to. If you want to listen to multiple channels at the
same time, just press and hold an additional PFL key for approximately 1 second to add that channel to the PFL
circuit.
• Press the HEADPHONE knob to restore normal headphone monitoring.

Battery Status Indicator

Displays the power source (I - Internal / E - External), and a numeric display of the current voltage.

Save Indicator

A moving pixel on bottom of screen moving right to left indicates that the Maxx is saving a parameter setting to
Maxx's ROM memory. If you power down while the pixel is moving the settings will not be saved.

Card Information Field

Top Line - Mirror Free Space
Displays available Mirror space
Second Line - Mirror File Progress
Displays what percentage of mirroring is left
Third Line
Time left on the Primary Folder

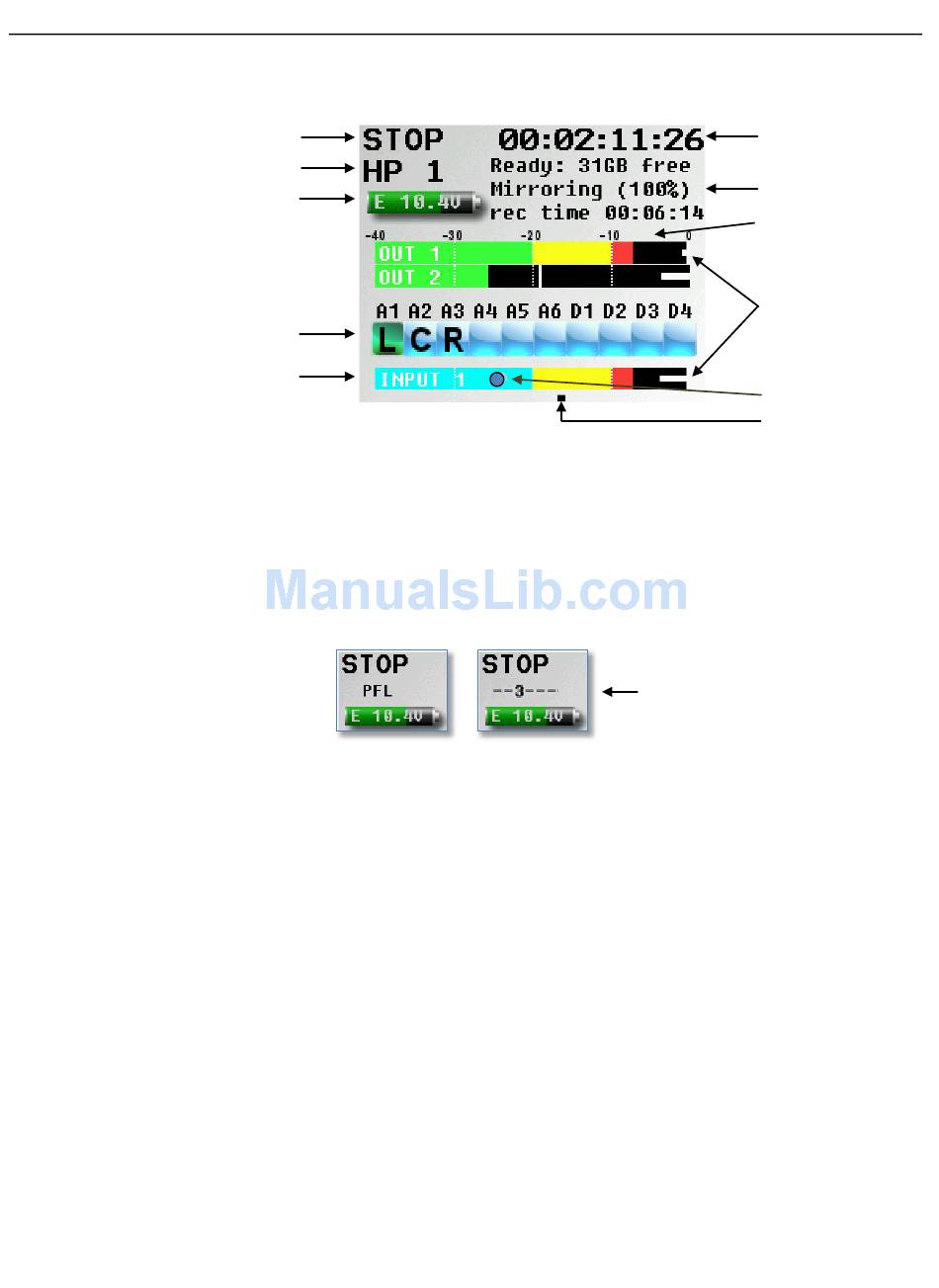

Transport Status
Battery Indicator
Input Meter
PLAY or STOP.
12
Meta Data / Playback
Timecode
Card information field
Peak Hold Indicator
Limiter reduction indicators
Trim Level Indicator
Save Indicator
Shows which inputs are
being listened to pre fader
