NOMAD LAYOUT

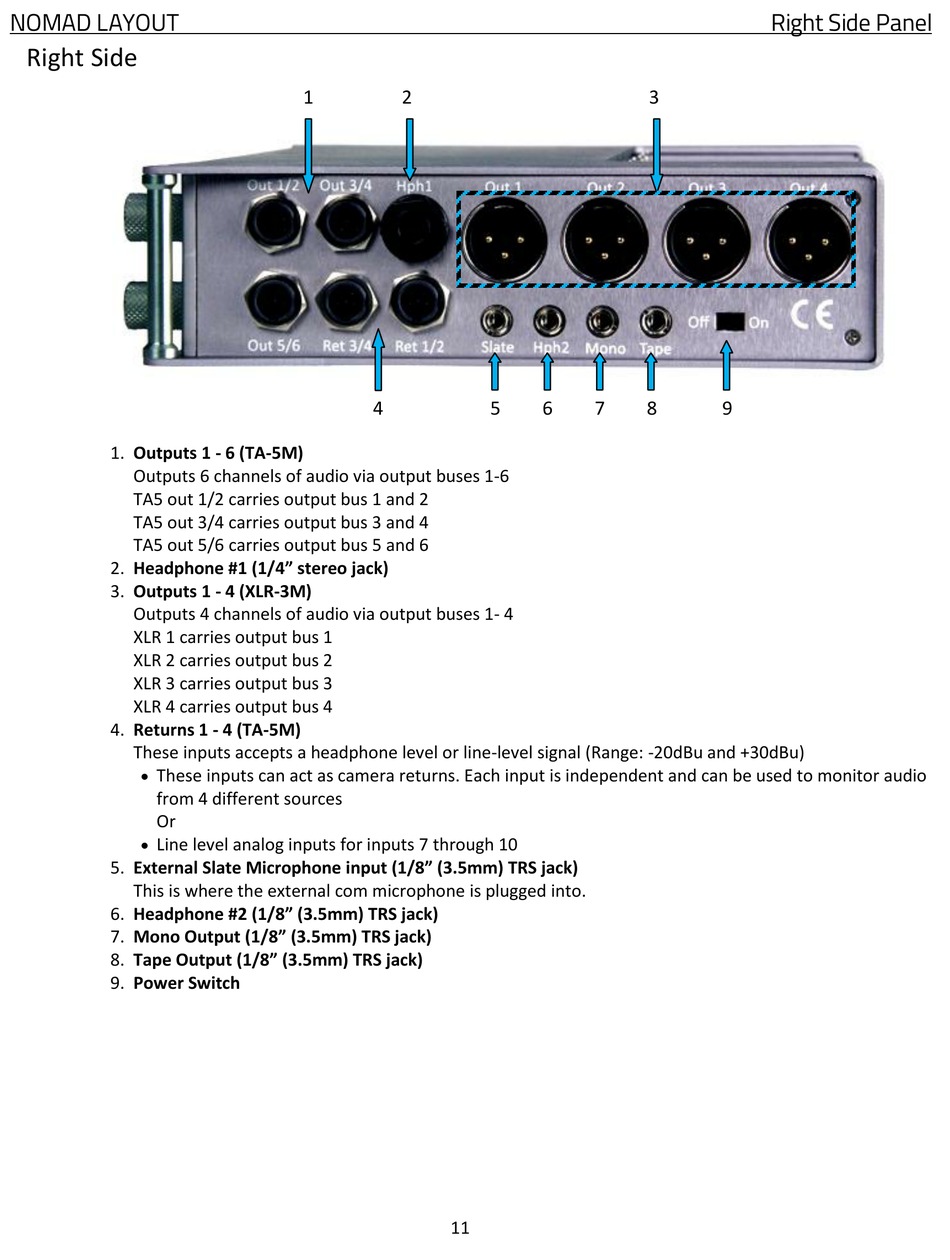

Right Side

1. Outputs 1 - 6 (TA-5M)
Outputs 6 channels of audio via output buses 1-6
TA5 out 1/2 carries output bus 1 and 2
TA5 out 3/4 carries output bus 3 and 4
TA5 out 5/6 carries output bus 5 and 6
2. Headphone #1 (1/4" stereo jack)
3. Outputs 1 - 4 (XLR-3M)
Outputs 4 channels of audio via output buses 1- 4
XLR 1 carries output bus 1
XLR 2 carries output bus 2
XLR 3 carries output bus 3
XLR 4 carries output bus 4
4. Returns 1 - 4 (TA-5M)
These inputs accepts a headphone level or line-level signal (Range: -20dBu and +30dBu)

These inputs can act as camera returns. Each input is independent and can be used to monitor audio
from 4 different sources
Or

Line level analog inputs for inputs 7 through 10
5. External Slate Microphone input (1/8" (3.5mm) TRS jack)
This is where the external com microphone is plugged into.
6. Headphone #2 (1/8" (3.5mm) TRS jack)
7. Mono Output (1/8" (3.5mm) TRS jack)
8. Tape Output (1/8" (3.5mm) TRS jack)
9. Power Switch
1 2
1
1
1 4
4
11
3
4
5 6 7 8
Right Side Panel
