NOMAD OPERATIONS

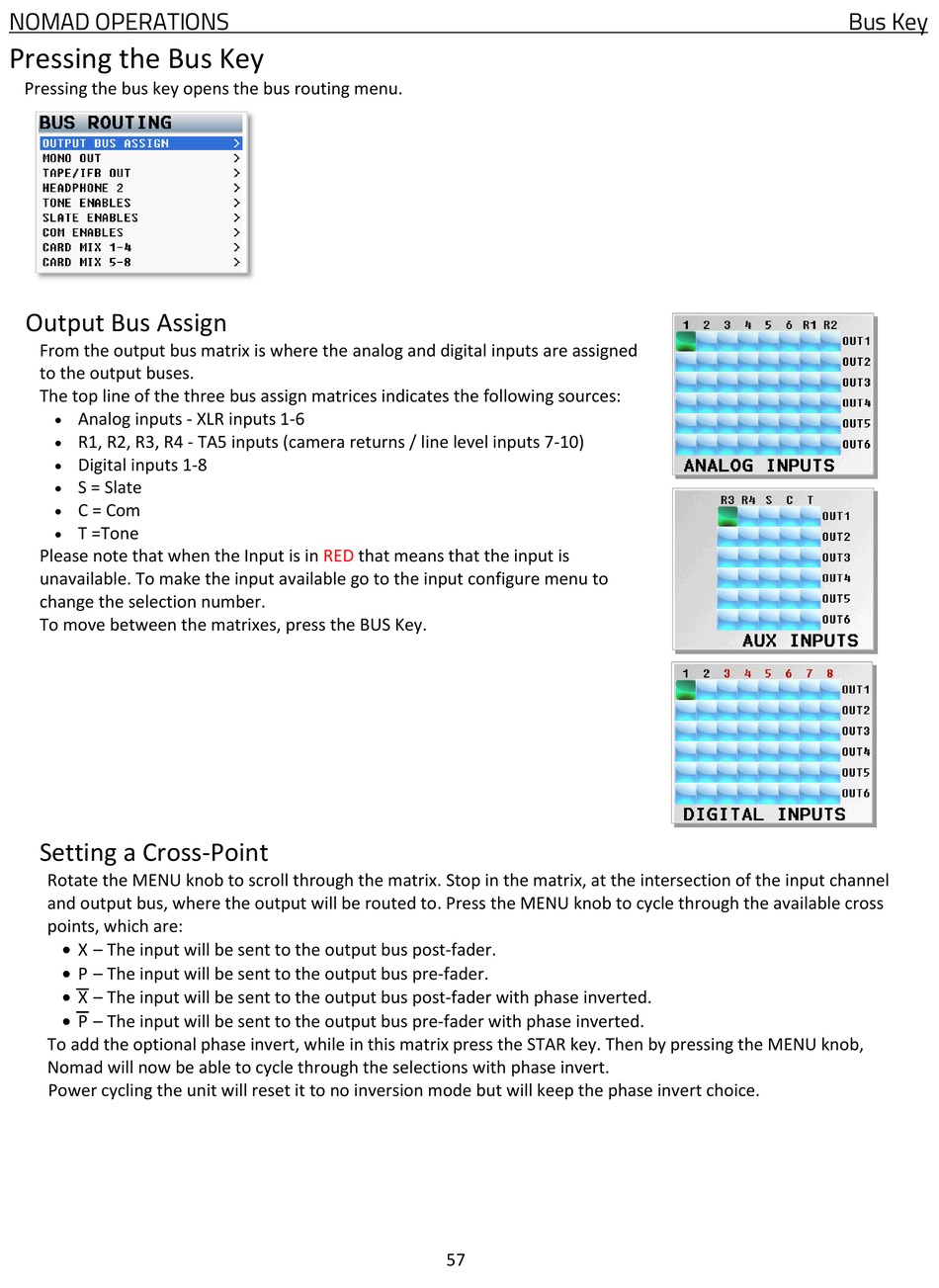

Pressing the Bus Key

Pressing the bus key opens the bus routing menu.

Output Bus Assign

From the output bus matrix is where the analog and digital inputs are assigned
to the output buses.
The top line of the three bus assign matrices indicates the following sources:

Analog inputs - XLR inputs 1-6

R1, R2, R3, R4 - TA5 inputs (camera returns / line level inputs 7-10)

Digital inputs 1-8

S = Slate

C = Com

T =Tone
Please note that when the Input is in
unavailable. To make the input available go to the input configure menu to
change the selection number.
To move between the matrixes, press the BUS Key.

Setting a Cross-Point

Rotate the MENU knob to scroll through the matrix. Stop in the matrix, at the intersection of the input channel
and output bus, where the output will be routed to. Press the MENU knob to cycle through the available cross
points, which are:
 X – The input will be sent to the output bus post-fader.
 P – The input will be sent to the output bus pre-fader.
 X – The input will be sent to the output bus post-fader with phase inverted.
 P – The input will be sent to the output bus pre-fader with phase inverted.
To add the optional phase invert, while in this matrix press the STAR key. Then by pressing the MENU knob,
Nomad will now be able to cycle through the selections with phase invert.
Power cycling the unit will reset it to no inversion mode but will keep the phase invert choice.
RED that means that the input is
