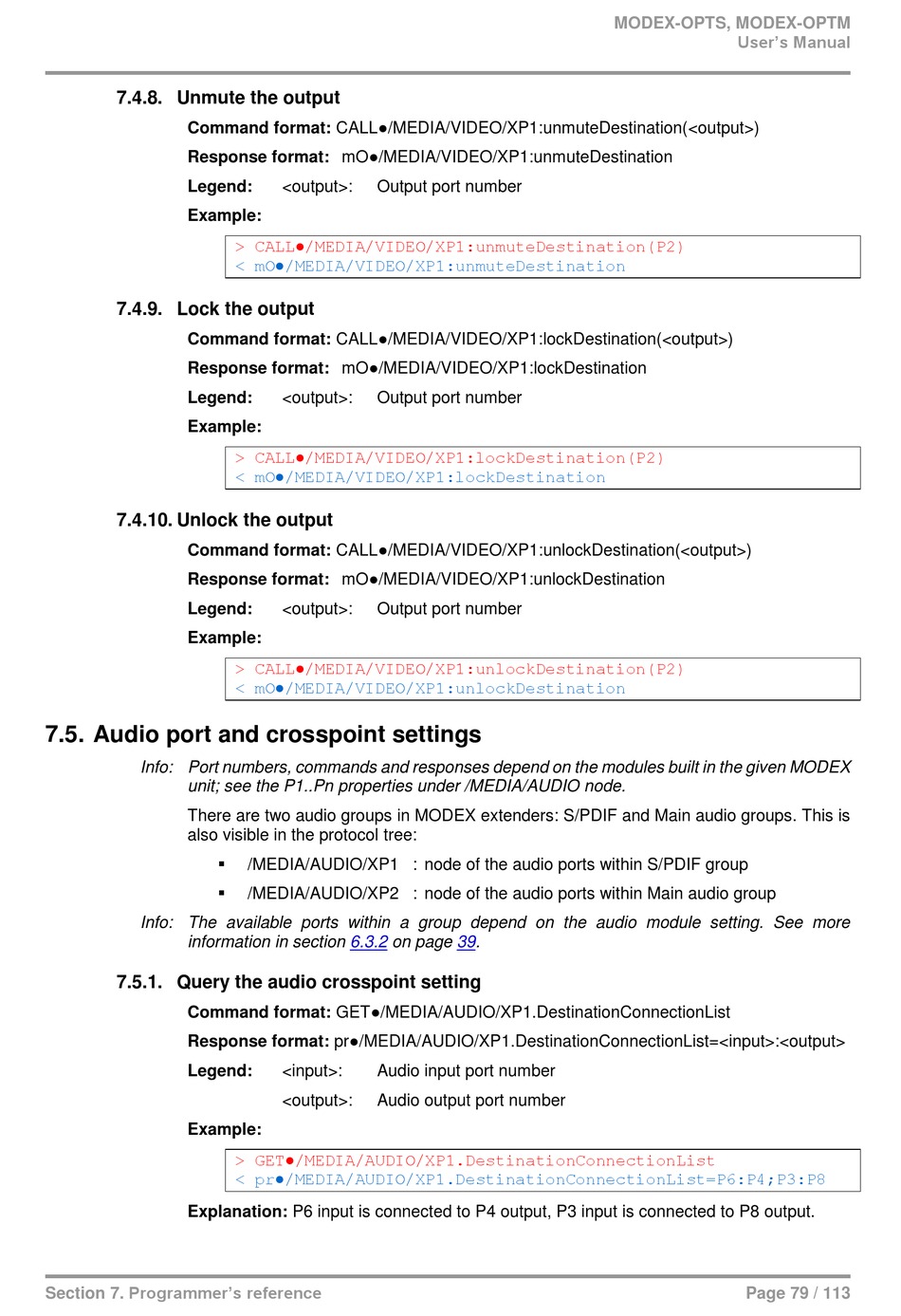

7.4.8. Unmute the output

Command format: CALL●/MEDIA/VIDEO/XP1:unmuteDestination(<output>)
Response format: mO●/MEDIA/VIDEO/XP1:unmuteDestination
Legend:
Example:

7.4.9. Lock the output

Command format: CALL●/MEDIA/VIDEO/XP1:lockDestination(<output>)
Response format: mO●/MEDIA/VIDEO/XP1:lockDestination
Legend:
Example:

7.4.10. Unlock the output

Command format: CALL●/MEDIA/VIDEO/XP1:unlockDestination(<output>)
Response format: mO●/MEDIA/VIDEO/XP1:unlockDestination
Legend:
Example:

7.5. Audio port and crosspoint settings

Info: Port numbers, commands and responses depend on the modules built in the given MODEX
unit; see the P1..Pn properties under /MEDIA/AUDIO node.
There are two audio groups in MODEX extenders: S/PDIF and Main audio groups. This is
also visible in the protocol tree:
Info: The available ports within a group depend on the audio module setting. See more
information in section

7.5.1. Query the audio crosspoint setting

Command format: GET●/MEDIA/AUDIO/XP1.DestinationConnectionList
Response format: pr●/MEDIA/AUDIO/XP1.DestinationConnectionList=<input>:<output>
Legend:
Example:
Explanation: P6 input is connected to P4 output, P3 input is connected to P8 output.
Section 7. Programmer's reference
<output>: Output port number
> CALL●/MEDIA/VIDEO/XP1:unmuteDestination(P2)
< mO●/MEDIA/VIDEO/XP1:unmuteDestination
<output>: Output port number
> CALL●/MEDIA/VIDEO/XP1:lockDestination(P2)
< mO●/MEDIA/VIDEO/XP1:lockDestination
<output>: Output port number
> CALL●/MEDIA/VIDEO/XP1:unlockDestination(P2)
< mO●/MEDIA/VIDEO/XP1:unlockDestination

/MEDIA/AUDIO/XP1 : node of the audio ports within S/PDIF group

/MEDIA/AUDIO/XP2 : node of the audio ports within Main audio group
6.3.2
<input>: Audio input port number
<output>: Audio output port number
> GET●/MEDIA/AUDIO/XP1.DestinationConnectionList
< pr●/MEDIA/AUDIO/XP1.DestinationConnectionList=P6:P4;P3:P8
on page 39.
