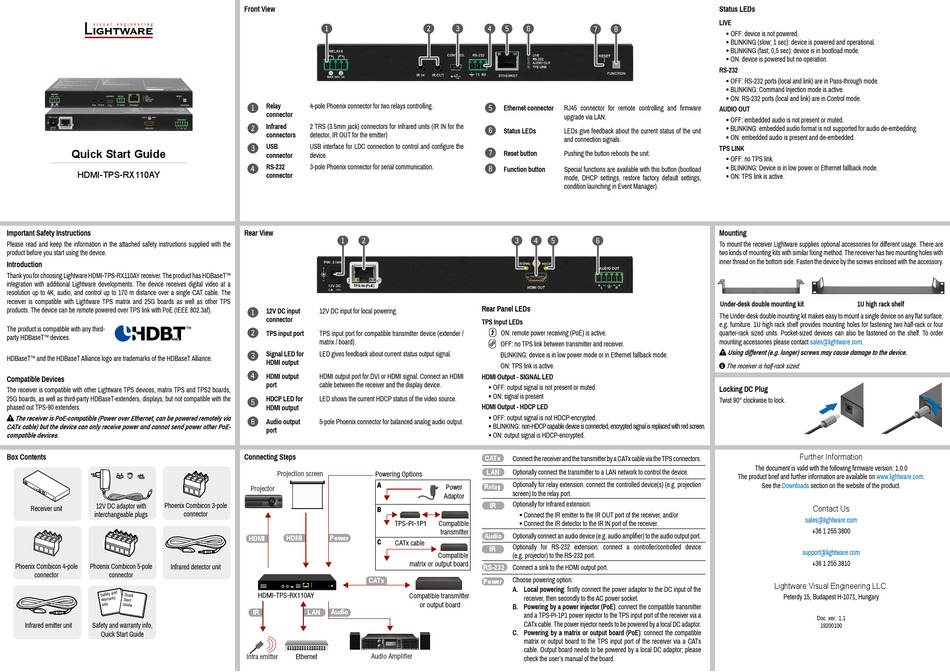

Lightware HDMI-TPS-RX110AY Quick Start Manual

Quick Start Guide

HDMI-TPS-RX110AY
Important Safety Instructions
Please read and keep the information in the attached safety instructions supplied with the
product before you start using the device.
Introduction
Thank you for choosing Lightware HDMI-TPS-RX110AY receiver. The product has HDBaseT
integration with additional Lightware developments. The device receives digital video at a
resolution up to 4K, audio, and control up to 170 m distance over a single CAT cable. The
receiver is compatible with Lightware TPS matrix and 25G boards as well as other TPS
products. The device can be remote powered over TPS link with PoE (IEEE 802.3af).
The product is compatible with any third-
party HDBaseT devices.
TM
HDBaseT and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance.
TM
Compatible Devices
The receiver is compatible with other Lightware TPS devices, matrix TPS and TPS2 boards,
25G boards, as well as third-party HDBaseT-extenders, displays, but not compatible with the
phased out TPS-90 extenders.
 The receiver is PoE-compatible (Power over Ethernet, can be powered remotely via
CATx cable) but the device can only receive power and cannot send power other PoE-
compatible devices.
Box Contents
Phoenix Combicon 3-pole
12V DC adaptor with
Receiver unit
connector
interchangeable plugs
Phoenix Combicon 4-pole Phoenix Combicon 5-pole
Infrared detector unit
connector connector
Infrared emitter unit Safety and warranty info,
Quick Start Guide
Front View
1
1 Relay 4-pole Phoenix connector for two relays controlling.
connector
Infrared 2 TRS (3.5mm jack) connectors for Infrared units (IR IN for the
2
connectors detector, IR OUT for the emitter)
USB USB interface for LDC connection to control and configure the
3
connector device.
4 RS-232 3-pole Phoenix connector for serial communication.
connector
Rear View
1 2
TM
1 12V DC input 12V DC input for local powering.
connector
2
TPS input port TPS input port for compatible transmitter device (extender /
matrix / board).
3 Signal LED for LED gives feedback about current status output signal.
HDMI output
4
HDMI output HDMI output port for DVI or HDMI signal. Connect an HDMI
port cable between the receiver and the display device.
HDCP LED for LED shows the current HDCP status of the video source.
5
HDMI output
6
Audio output 5-pole Phoenix connector for balanced analog audio output.
port
Connecting Steps
Projection screen
Powering Options
A
Projector
B
TPS-PI-1P1
HDMI HDMI Power
C
CATx cable
CATx
HDMI-TPS-RX110AY
IR LAN Audio
+48
+36
+24 +15
+10
+6
+48
+36
+15 +24
+10
+6
Infra emitter Ethernet Audio Amplifier
2 3 4 5 6
5
Ethernet connector RJ45 connector for remote controlling and firmware
upgrade via LAN.
6
Status LEDs LEDs give feedback about the current status of the unit
and connection signals.
7
Reset button Pushing the button reboots the unit.
8
Function button Special functions are available with this button (bootload
mode, DHCP settings, restore factory default settings,
condition launching in Event Manager).
3 4 5
Rear Panel LEDs
TPS Input LEDs
ON: remote power receiving (PoE) is active.
OFF: no TPS link between transmitter and receiver.
BLINKING: device is in low power mode or in Ethernet fallback mode.
ON: TPS link is active.
HDMI Output - SIGNAL LED
ƒ OFF: output signal is not present or muted.
ƒ ON: signal is present
HDMI Output - HDCP LED
ƒ OFF: output signal is not HDCP-encrypted.
ƒ BLINKING: non-HDCP capable device is connected, encrypted signal is replaced with red screen.
ƒ ON: output signal is HDCP-encrypted.
CATx
Connect the receiver and the transmitter by a CATx cable via the TPS connectors.
LAN
Optionally connect the transmitter to a LAN network to control the device.
Relay Optionally for relay extension: connect the controlled device(s) (e.g. projection
Power
screen) to the relay port.
Adaptor
IR Optionally for Infrared extension:
ƒ Connect the IR emitter to the IR OUT port of the receiver, and/or
Compatible
ƒ Connect the IR detector to the IR IN port of the receiver.
transmitter
Audio
Optionally connect an audio device (e.g. audio amplifier) to the audio output port.
Optionally for RS-232 extension: connect a controller/controlled device
IR
Compatible (e.g. projector) to the RS-232 port.
matrix or output board
RS-232
Connect a sink to the HDMI output port.
Power Choose powering option:
A. Local powering: firstly connect the power adaptor to the DC input of the
Compatible transmitter
receiver, then secondly to the AC power socket.
or output board
B. Powering by a power injector (PoE): connect the compatible transmitter
and a TPS-PI-1P1 power injector to the TPS input port of the receiver via a
CATx cable. The power injector needs to be powered by a local DC adaptor.
C. Powering by a matrix or output board (PoE): connect the compatible
matrix or output board to the TPS input port of the receiver via a CATx
cable. Output board needs to be powered by a local DC adaptor; please
check the user's manual of the board.
Status LEDs
LIVE
7 8
ƒ OFF: device is not powered.
ƒ BLINKING (slow; 1 sec): device is powered and operational.
ƒ BLINKING (fast; 0,5 sec): device is in bootload mode.
ƒ ON: device is powered but no operation.
RS-232
ƒ OFF: RS-232 ports (local and link) are in Pass-through mode.
ƒ BLINKING: Command Injection mode is active.
ƒ ON: RS-232 ports (local and link) are in Control mode.
AUDIO OUT
ƒ OFF: embedded audio is not present or muted.
ƒ BLINKING: embedded audio format is not supported for audio de-embedding.
ƒ ON: embedded audio is present and de-embedded.
TPS LINK
ƒ OFF: no TPS link.
ƒ BLINKING: Device is in low power or Ethernet fallback mode.
ƒ ON: TPS link is active.
Mounting
6
To mount the receiver Lightware supplies optional accessories for different usage. There are
two kinds of mounting kits with similar fixing method. The receiver has two mounting holes with
inner thread on the bottom side. Fasten the device by the screws enclosed with the accessory.
Under-desk double mounting kit
The Under-desk double mounting kit makes easy to mount a single device on any flat surface,
e.g. furniture. 1U high rack shelf provides mounting holes for fastening two half-rack or four
quarter-rack sized units. Pocket-sized devices can also be fastened on the shelf. To order
mounting accessories please contact sales@lightware.com.
 Using different (e.g. longer) screws may cause damage to the device.
 The receiver is half-rack sized.
Locking DC Plug
Twist 90° clockwise to lock.
The document is valid with the following firmware version: 1.0.0
The product brief and further information are available on www.lightware.com.
See the
1U high rack shelf
Further Information
Downloads section on the website of the product.
