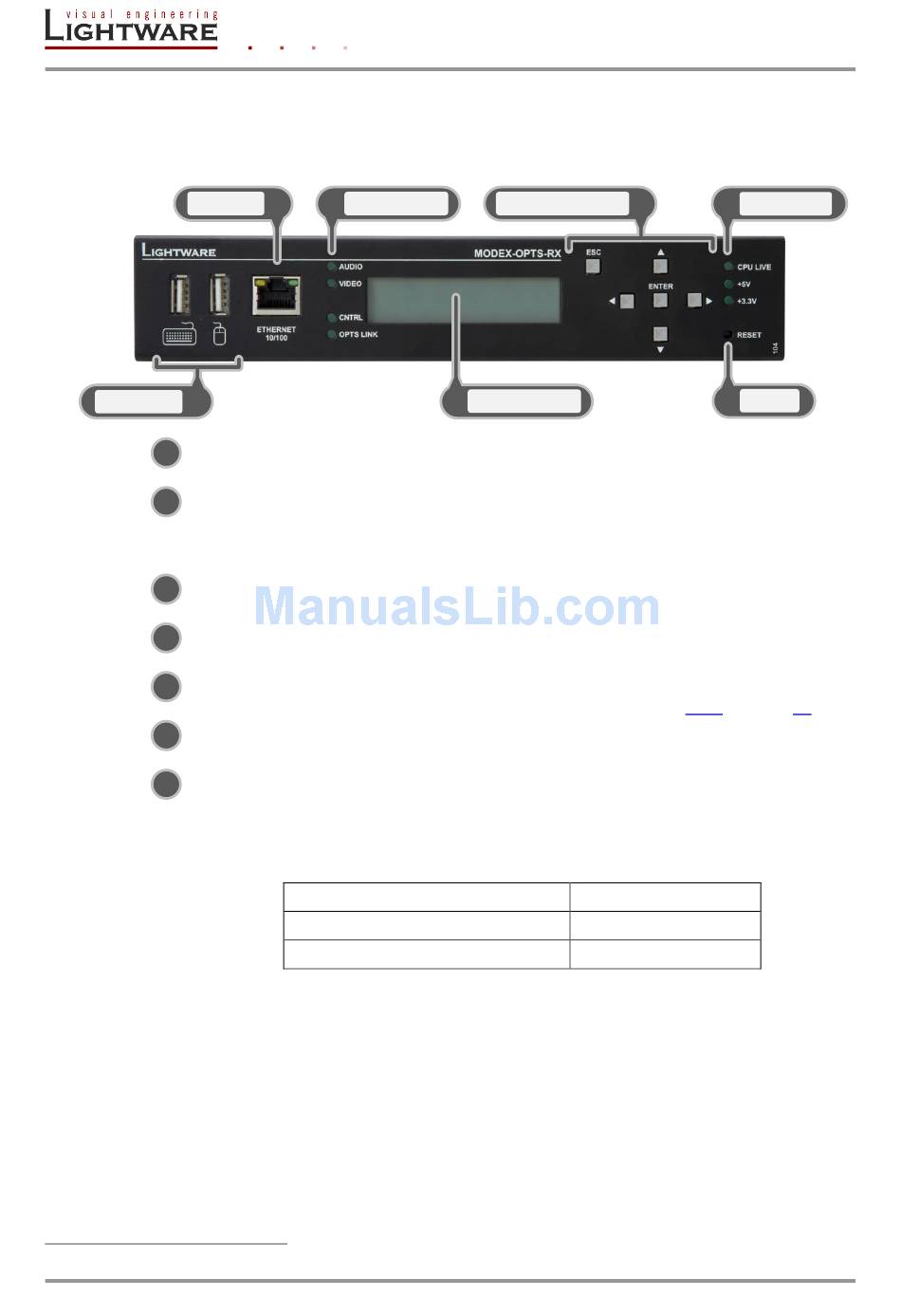

2.2.2. Receiver front view

Info: MODEX-OPTS frames can be seen on the photos which are almost the same as MODEX-
OPTM frames. Their housing contains just two differences: the 'OPTM' designation and the
part number.
Ethernet
USB ports
5
Ethernet
1
2 Status LEDs
Menu navigation
3
PSU LEDs
4
USB ports
5
Menu display
6
7 Reset
Receiver frames
1
HID: Human Interface Device
Page 14 / 113
Status LEDs
1 2
Locking RJ45 socket. Remote control port for connecting the unit
to Local Area Network (LAN).
Audio LED lights green when the audio transfer is active. Video
LED indicates correct video transmission. CNTRL LED is green
when low speed handshake of the extenders is complete. OPTS
LINK LED lights when optical link is active.
Up, down, left, right, enter and escape buttons for menu
navigation.
CPU live LED blinks to indicate normal operation. +5V and +3.3V
LEDs light green when the extender is powered on.
USB K+M ports for HID
mouse). See more information in section
Displays status information and menu operation on the LCD with
2x16 characters.
Reset button reboots the extender. This is the same as
disconnecting from power source and reconnecting again.
Frame type
MODEX-F15-OPTS-RX
MODEX-F15-OPTM-RX
Menu navigation
Menu display
6
1
devices (preferably Keyboard and
9161 0104
9161 0107
Section 2. Controls and connections
3 4 PSU LEDs
7 Reset
6.7.2 on page 54.
Part nr.
