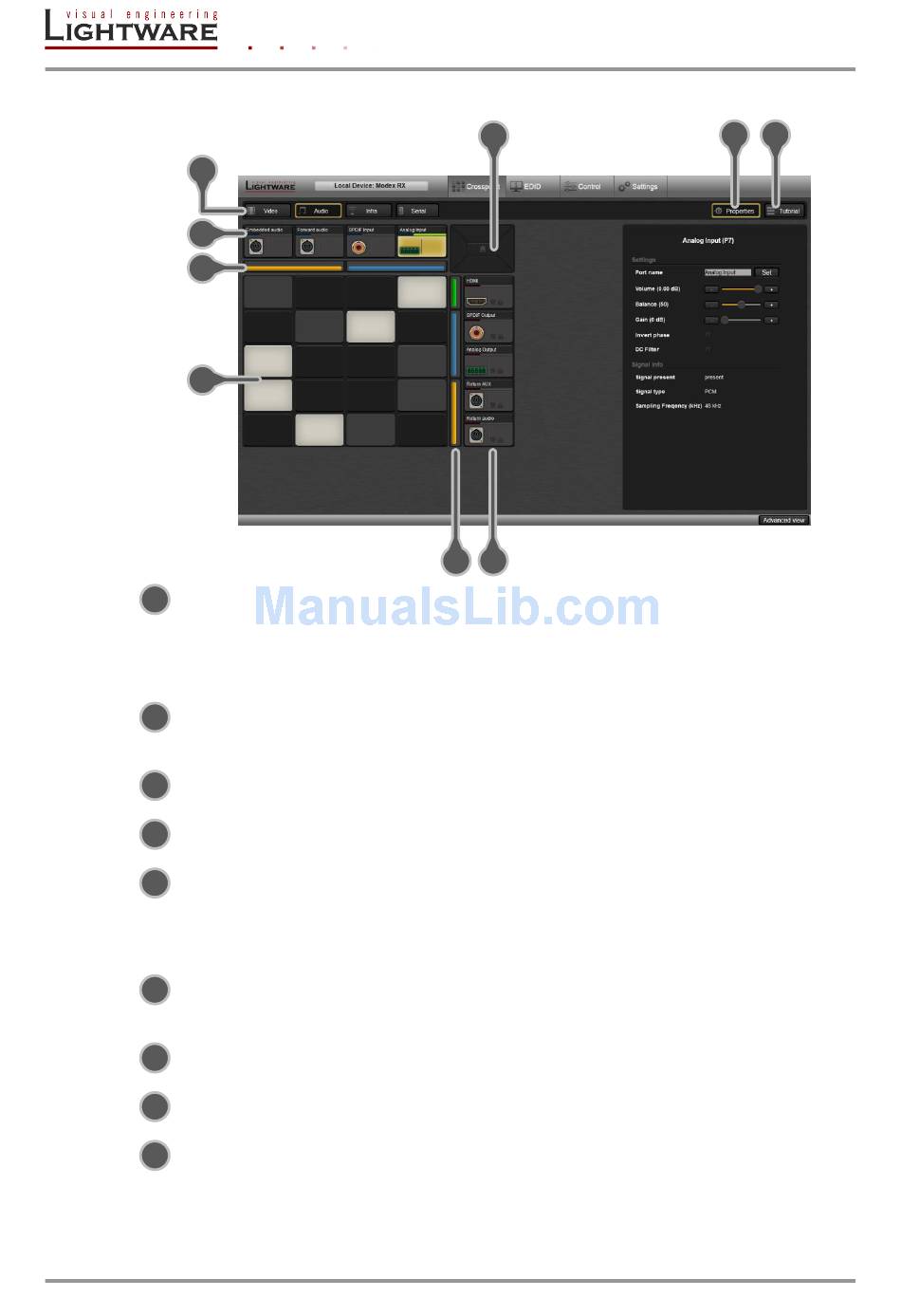

6.3. Crosspoint menu
4
3
2
1
Crosspoint panel
1
Input module properties
2
3
Input ports
Layers
4
5
Navigation buttons
Properties button
6
Tutorial button
7
8
Output ports
Output module properties
9
Page 38 / 113
5
9
8
Displaying connections between the input and output ports:
Dark tiles:
Connection is not possible.
Grey tiles:
Connection is possible but not established.
White tiles:
Connection is established.
Each color bar represents a module. Properties window
appears displaying information and settings about the given
input module by clicking on the colored bar.
Displaying available input ports of the selected layer.
Showing the available layers as submenus; they depend on
the installed interface modules.
If the window is smaller than required, input and/or output
ports may not fit in the available area. Thus the arrows on this
button get activated and the ports can be scrolled. Clicking in
the middle icon restores the original layout (crosspoint is
arranged to the left top corner).
Toggling right panel display, showing the properties of
selected port. The panel is also displayed when left-clicking
on a port.
Displaying MODEX tutorial in the appearing window
containing the most important descriptions shortly.
Displaying available output ports of selected layer.
Each color bar represents a module. Properties window
appears displaying information and settings about the given
output module by clicking on the colored bar.
Section 6. Web control – Using the built-in website
